Figure Number: 2630
Contact a Representative

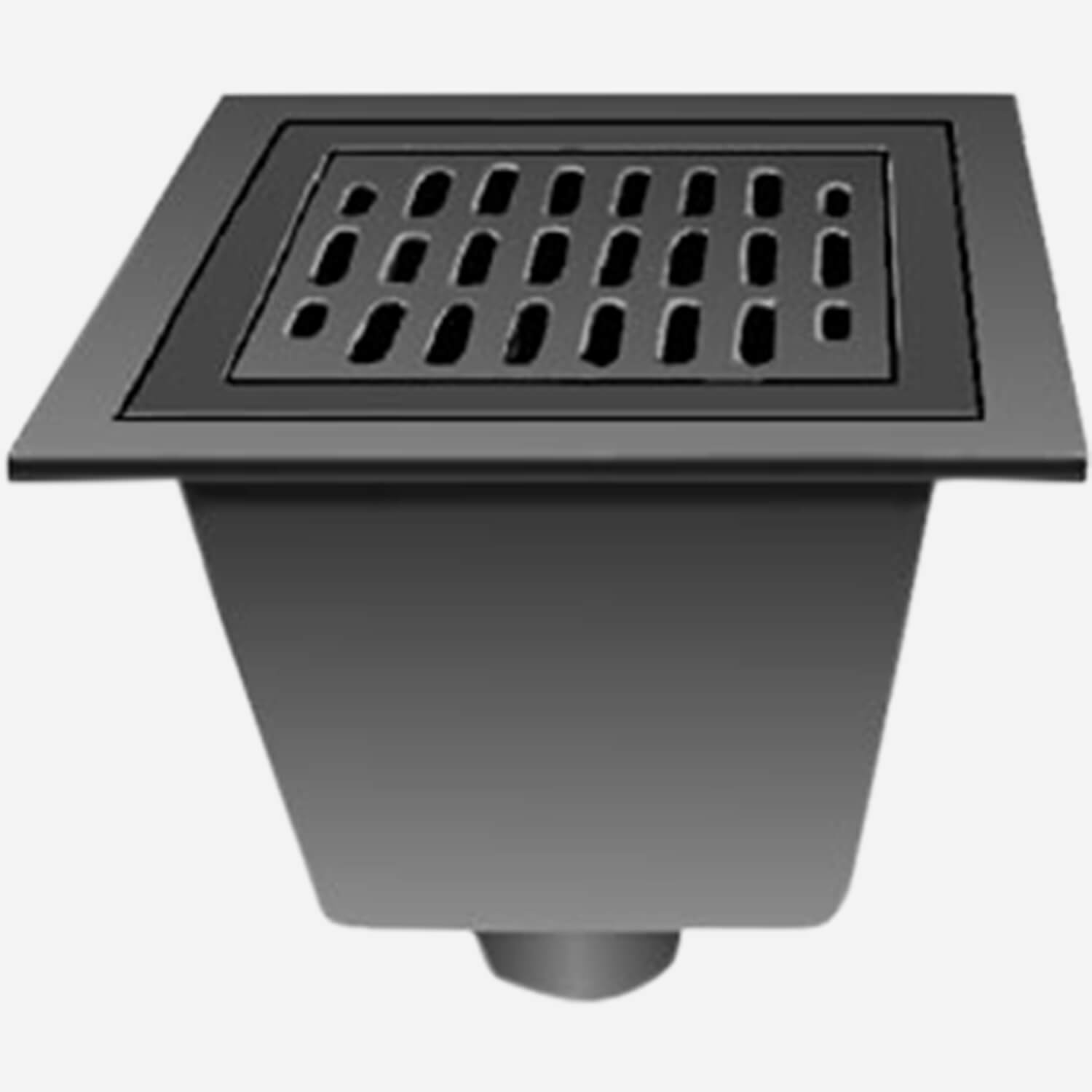

2630Hopper Drain

This 12" square, hopper type, Duco cast iron drain is available with or without a grate for no load or light traffic up to 2000 lbs. (900 kg.) and with or without a sediment bucket for clear or debris-filled runoff.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Bell Trap -BT, Flashing Flange -F, Flange with Flashing Clamp -F-C, Vandal Proof -U - Top or Grates, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Ductile Iron Grate - M, Ductile Iron Grate & Bucket -MGB, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2630 - 2633 Floor Drain (pdf)
View
Technical Drawings
2630 - 2633 Floor Drain (dwg)Light Duty Hopper Floor Drains 12" x 12" [2630C | With Sediment Bucket & ADA Grate; 2631C | With Sediment Bucket; 2632C | With Flat Bottom Strainer & ADA Grate; 2633C | With Flat Bottom Strainer]DWG58 KB
2635 - 2638 Floor Drain (dwg)Hopper Floor Drains 16" x 16" - Sediment Bucket 2635C, 2635Y, 2636C, 2636Y; Flat Bottom Strainer 2637C, 2637Y, 2638C, 2638YDWG34 KB
Literature / Videos
Submittal 2635 -2638 Floor Drain (pdf)Hopper Floor Drains 16" x 16" - Sediment Bucket 2635C, 2635Y, 2636C, 2636Y; Flat Bottom Strainer 2637C, 2637Y, 2638C, 2638YPDF674 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Light Duty Hopper Floor Drains 12" x 12"
Sediment Bucket
2630C | Cault Outlet With ADA Grate
2631C | Caulk Outlet

Flat Bottom Strainer
2632C | Caulk Outlet with ADA Grate
2633C | With Flat Bottom Strainer


Hopper Floor Drains 16" x 16"
Sediment Bucket
2635C | Caulk Outlet With Grate
2635Y | No-Hub Outlet With Grate
2636C | Caulk Outlet
2636Y | No-Hub Outlet

Flat Bottom Strainer
2637C | Caulk Outlet With Grate
2637Y | No-Hub Outlet With Grate
2638C | Caulk Outlet
2638Y | No-Hub Outlet
