Figure Number: 2484

2484Heavy Duty Traffic Floor Drains

Our Whitford Style Drain is designed to handle large amounts of wastewater in areas where debris accumulations require frequent removal. Built for packing houses and industrial facilities, the fabricated steel body of this drain has an acid resistant coating. Its corrosion resistant aluminum bucket is easily accessible under a heavy duty Duco Cast Iron grate while the cleanout area is accessed via a secured heavy duty cover.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Cast Iron Bucket -CIB, Flashing Clamp -C, Seepage Holes -W, Vandal Proof -U - Top or Grates, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Ductile Iron Grate - M, Galvanized -G
  • Product Type
    Floor Drain
Technical Drawings
DWG 2484 Floor DrainDWG 2484 Floor DrainDWG74 KB
2488 Floor Drain (dwg)Heavy Duty Packing House Traffic Floor Drain [2488C | Caulk Bottom Outlet; 2488T | Threaded Bottom Outlet; 2488Y | No-Hub Bottom Outlet]DWG56 KB
2484 Floor Drain Revit DrawingHeavy Duty Traffic Floor Drains - [Figure 2484 Whitford Style Drain]RFA896 KB
Literature / Videos
Submittal 2488 Floor Drain (pdf)Heavy Duty Packing House Traffic Floor Drain [2488C | Caulk Bottom Outlet; 2488T | Threaded Bottom Outlet; 2488Y | No-Hub Bottom Outlet] PDF673 KB
Submittal 2500 Floor Drain (pdf)Flushing Type Light Duty/Pedestrian Traffic Laboratory and Institutional Floor Drain Caulk Bottom Outlet 2500C, 2501C, 2502C; Threaded Trap Drain 2505T, 2506T, 2507T]PDF934 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch

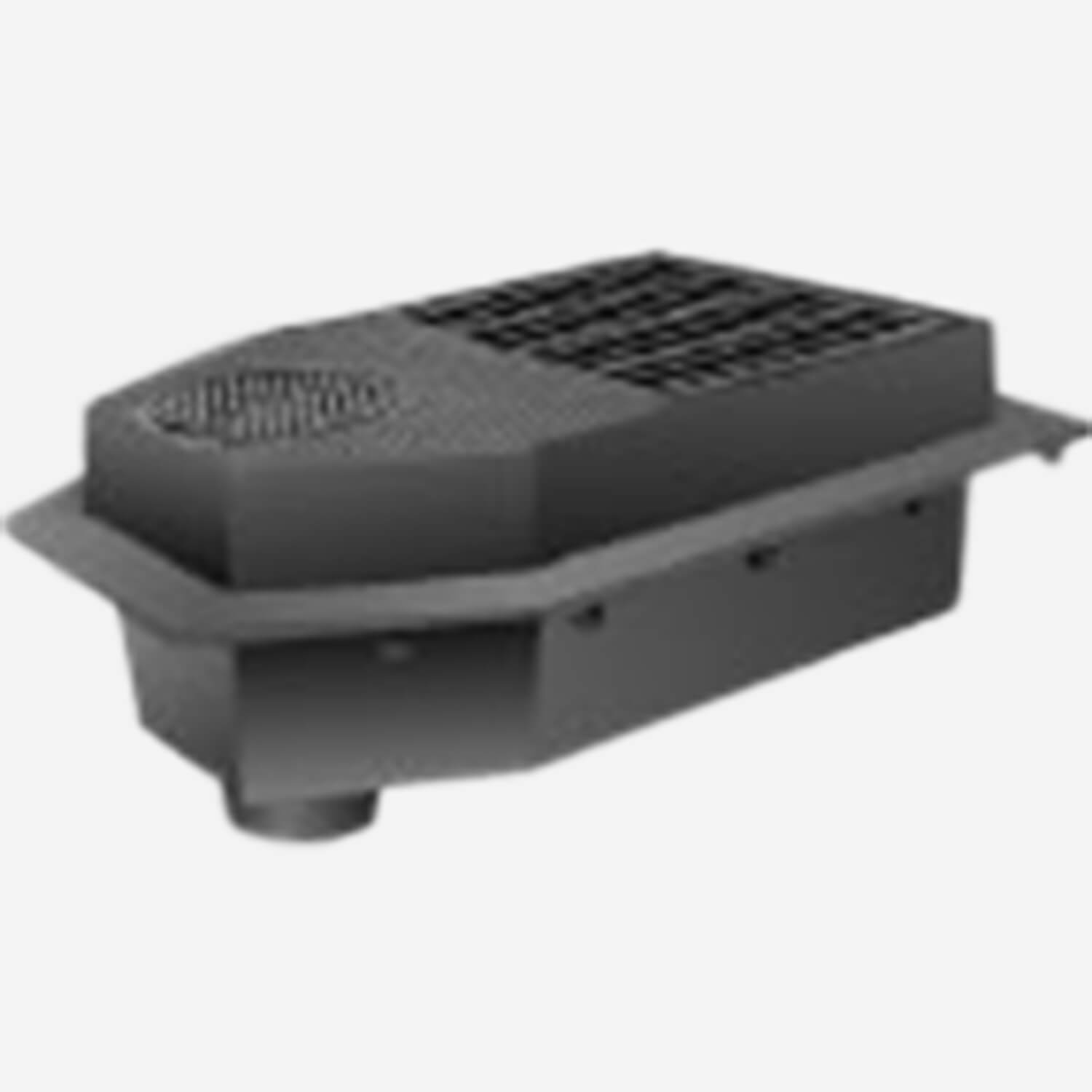

Heavy Duty Industrial Drain - Whitford Style
2484C | Caulk Outlet
2484T | Threaded Outlet
2484Y | No-Hub Outlet

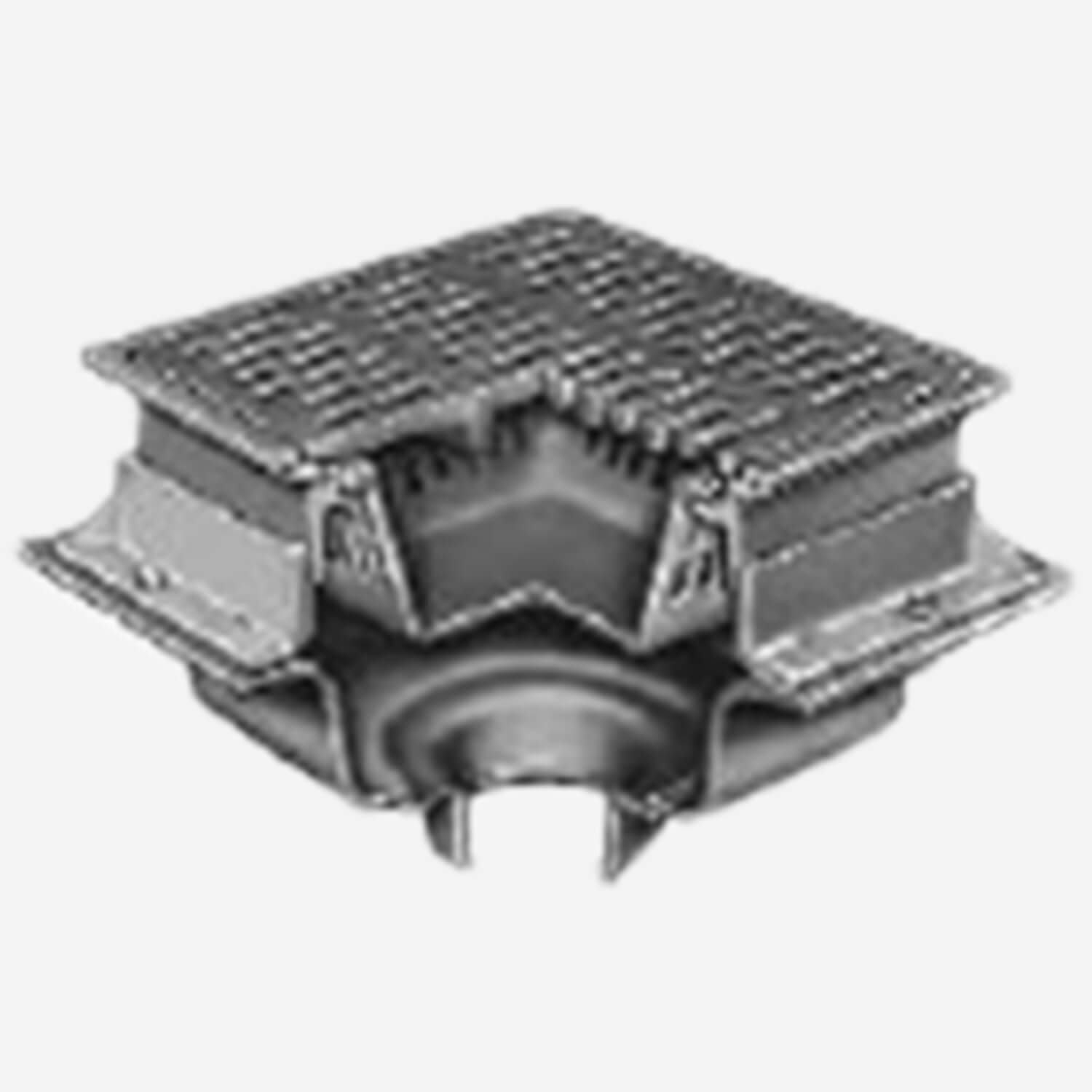

Heavy-Duty Packing House Square Traffic Floor Drain
