Figure Number: 2340
Contact a Representative

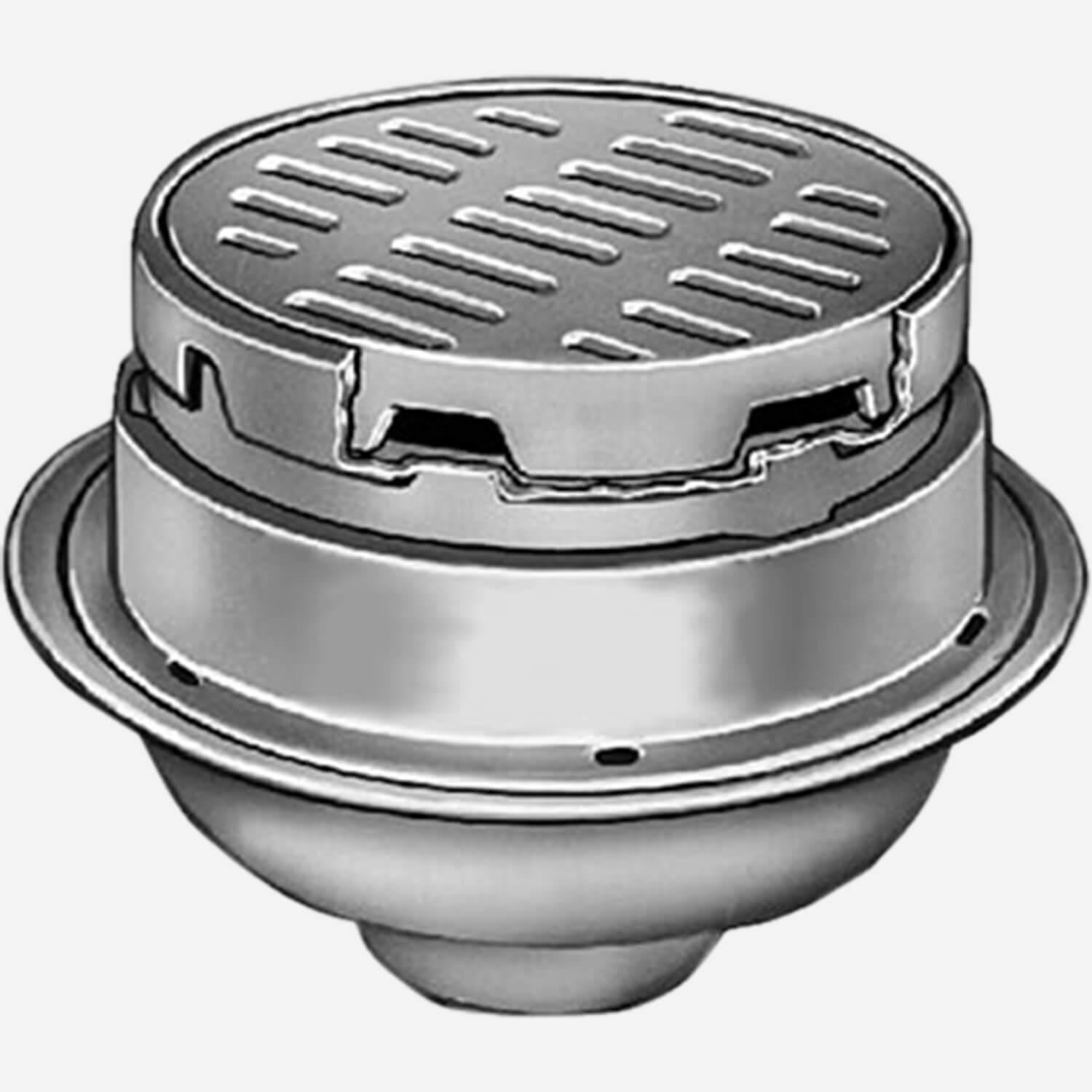

2340Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate

Engineered to withstand a static load of up to 7,999 lbs. (3,750 kg.), this durable Duco cast iron floor drain and tractor grate has an adjustable 12" diam. top for accurate leveling with adjacent surfaces. It is available in shallow body and side outlet configurations.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Adjustable Extensions 4 1/2(115) to 6"(150) -E, Flat Bottom Strainer -FBS, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Sediment Bucket -B, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2340, 2341, 2345 Floor Drain (pdf)
View
Technical Drawings
2340, 2341, 2345 Floor Drain (dwg)Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate [Deep Body with Bottom Outlet 2340C, 2340T, 2340Y; Shallow Body with Bottom Outlet 2341C, 2341T; Side Outlet 2345C, 2345T]DWG132 KB
2340, 2341 Drain (rfa)Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate [Deep Body with Bottom Outlet 2340C, 2340T, 2340Y; Shallow Body with Bottom Outlet 2341C, 2341T]RFA808 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate

DEEP BODY BOTTOM OUTLET
2340C | Caulk Outlet
2340T | Thread Outlet
2340Y | No-Hub Outlet

SHALLOW BODY BOTTOM OUTLET
2341C | Caulk Outlet
2341T | Thread Outlet

SIDE OUTLET
2345C | Caulk Outlet
2345T | Thread Outlet

OPTIONAL STRAINER HEADS
Suffix A  |  Round Strainer
Suffix B  |  Square Strainer
Suffix AV  |  Square Strainer which works with Flapper Backwater Valve
Suffix BS |  Strainer Head with Square Hinged Cover
Suffix C  |  Reinforced Round Strainer
Suffix D  |  7" Diameter Reinforced Tractor Round Strainer
Suffix E  |  9" Diameter Reinforced Tractor Round Strainer
Suffix F  |  Round Tile Flange Strainer
Suffix F37  |  7" Diameter Adjustable Strainer Head
Suffix F38  |  9" Diameter Adjustable Strainer Head
Suffix G  |  Low Dome Strainer
Suffix H  |  Round Solid Hinged Cover Strainer
Suffix K  |  Reinforced Square Strainer
Suffix L  |  4-1/2" x 8" Rectangular Strainer
Suffix M  |  4" x 12" Rectangular Strainer
Suffix N  |  5" x 9" Rectangular Strainer
Suffix P  |  5" x 13" Rectangular Strainer
Suffix R  |  6" x 10" Rectangular Strainer
Suffix T  |  5" x 17" Rectangular Strainer
Suffix V  |  3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W  |  6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X  |  Extension Adaptor
Suffix Y  |  2" Pipe Size Overflow with Standpipe
Suffix Z  |  3" Pipe Size Overflow with Standpipe
