Figure Number: 2330

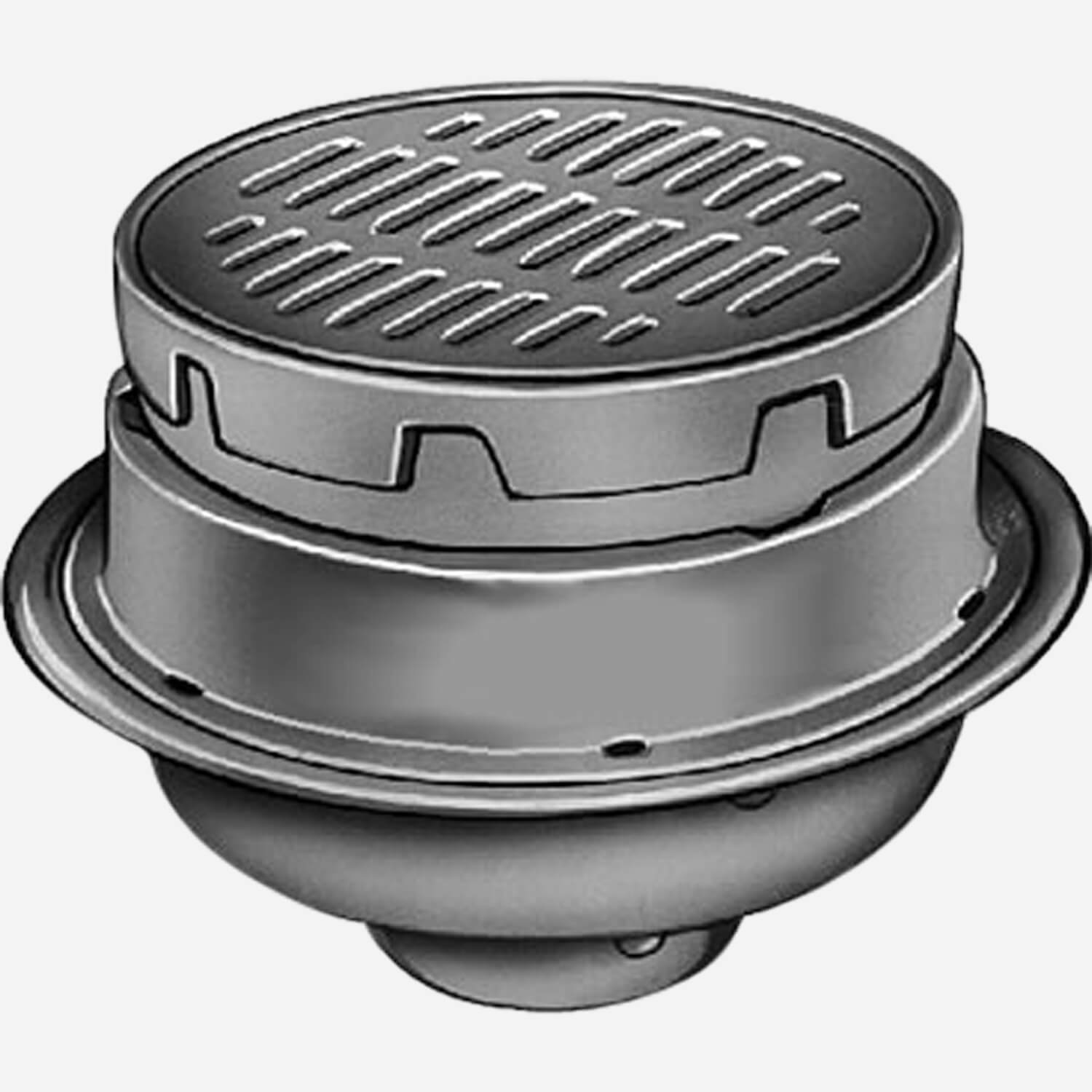

2330Medium Duty Floor Drains with 12" Adjustable Round Tops

Designed to guarantee proper realignment of its sediment bucket after emptying. The Safe-Set® design of this general purpose floor drain helps protect drainage systems from wastewater debris. This Duco cast iron medium duty floor drain has an adjustable 12" diam. top for easy leveling with adjacent surfaces.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Adjustable Extensions 4 1/2(115) to 6"(150) -E, Dome Grate -D, Flat Bottom Strainer -FBS, Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB - Outlet, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
Technical Drawings
2330, 2331, 2335 Floor Drain (dwg)Medium Duty Floor Drains with 12" Round Adjustable Tops [2330C | Deep Body, Caulk Bottom Outlet; 2330Y | Deep Body, No-Hub Bottom Outlet; 2331C | Shallow Body, Caulk Bottom Outlet; 2335C | Caulk Side Outlet; 2335T | Thread Side Outlet] DWG122 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Medium Duty Floor Drains with 12" Round Adjustable Tops

BOTTOM OUTLET
2330C | Deep Body, Caulk Outlet
2330Y | Deep Body, No-Hub Outlet

2331C | Shallow Body, Caulk Outlet

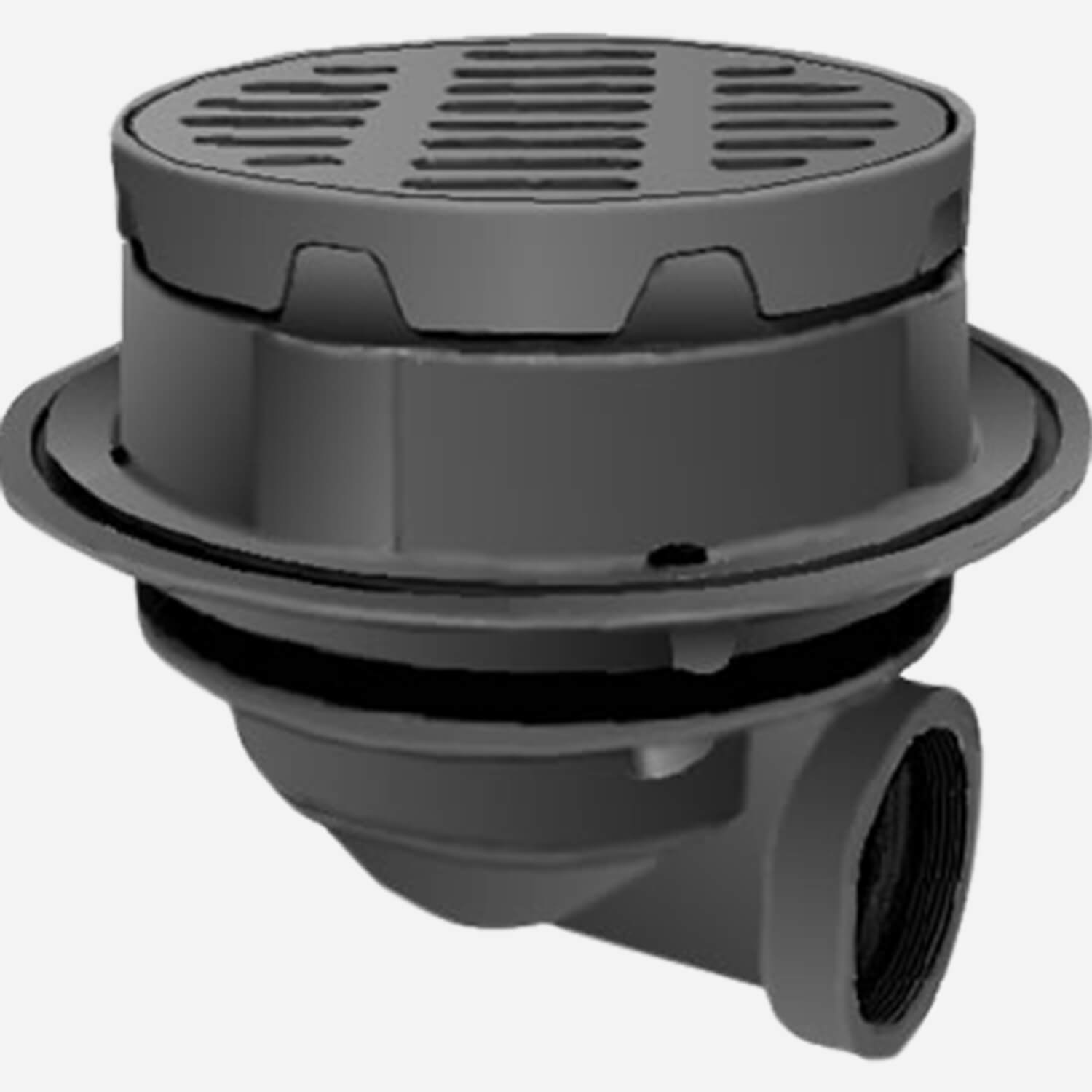

SIDE OUTLET
2335C | Caulk Outlet
2335T | Thread Outlet


OPTIONAL STRAINER HEADS
Suffix A  |  Round Strainer
Suffix B  |  Square Strainer
Suffix AV  |  Square Strainer which works with Flapper Backwater Valve
Suffix BS |  Strainer Head with Square Hinged Cover
Suffix C  |  Reinforced Round Strainer
Suffix D  |  7" Diameter Reinforced Tractor Round Strainer
Suffix E  |  9" Diameter Reinforced Tractor Round Strainer
Suffix F  |  Round Tile Flange Strainer
Suffix F37  |  7" Diameter Adjustable Strainer Head
Suffix F38  |  9" Diameter Adjustable Strainer Head
Suffix G  |  Low Dome Strainer
Suffix H  |  Round Solid Hinged Cover Strainer
Suffix K  |  Reinforced Square Strainer
Suffix L  |  4-1/2" x 8" Rectangular Strainer
Suffix M  |  4" x 12" Rectangular Strainer
Suffix N  |  5" x 9" Rectangular Strainer
Suffix P  |  5" x 13" Rectangular Strainer
Suffix R  |  6" x 10" Rectangular Strainer
Suffix T  |  5" x 17" Rectangular Strainer
Suffix V  |  3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W  |  6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X  |  Extension Adaptor
Suffix Y  |  2" Pipe Size Overflow with Standpipe
Suffix Z  |  3" Pipe Size Overflow with Standpipe
