Figure Number: 2143
Contact a Representative

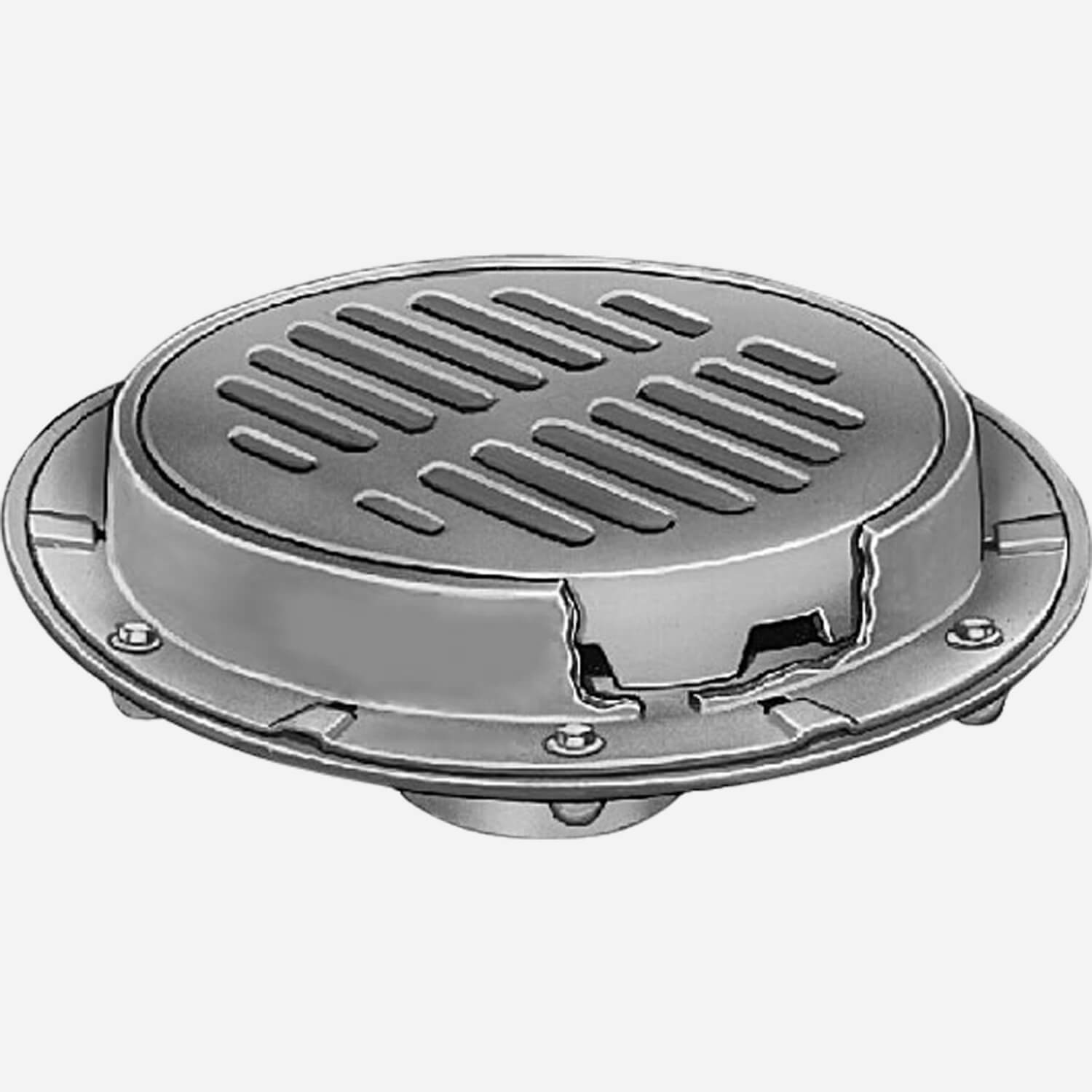

2143Heavy Duty Floor Drains with 15" Round Tractor Grate Tops

This heavy duty floor drain is engineered to support static loads of up to 7,999 lbs(3,750 kg.) with its Duco cast iron body and ADA cast iron tractor grate. Installed in areas where wastewater carries no debris, Its large 15" diam. grate will efficiently transport large volumes into the drainage system.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Grate -D, Flat Bottom Strainer -FBS, NO-HUB Adaptor, Square Top -S, Vandal Proof Grate - U, 4"(100) High Collar -HC4, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Polished Bronze - Heel Proof -PBHP, Nickel Bronze - Heel Proof -NBHP, Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2143 Floor Drain (pdf)
View
Technical Drawings
2143 Floor Drain (dwg)Floor Drains with Heavy Duty Tractor Grate 15" Round Top [2143C | Caulk Bottom Outlet; 2143T | Threaded Bottom OutletDWG74 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

2143C | Caulk Bottom Outlet
2143T | Threaded Bottom Outlet
