Figure Number: 2142
Contact a Representative

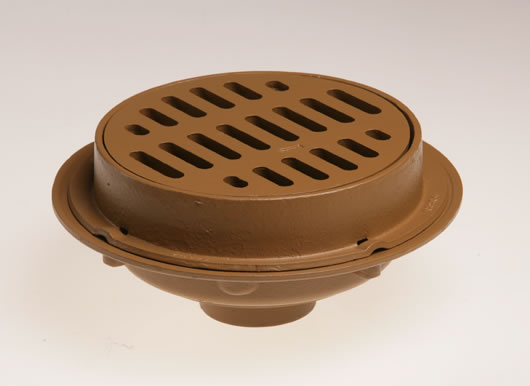

2142Medium Duty Floor Drains with 12" Top Solid Free-Standing Sediment Bucket

Designed to speed cleanout in areas where wastewater contains sediment and other debris, the solid, free-standing sediment. A handle is provided so the sediment bucket can be easily lifted through this floor drain's large 12" diam. grate. This medium duty floor drain and grate is made of Duco cast iron. Other configurations are available.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flat Bottom Strainer -FBS, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Seepage Holes in Bucket -FP (Frost Proof), Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2142, 2147 Floor Drain (pdf)
View
Technical Drawings

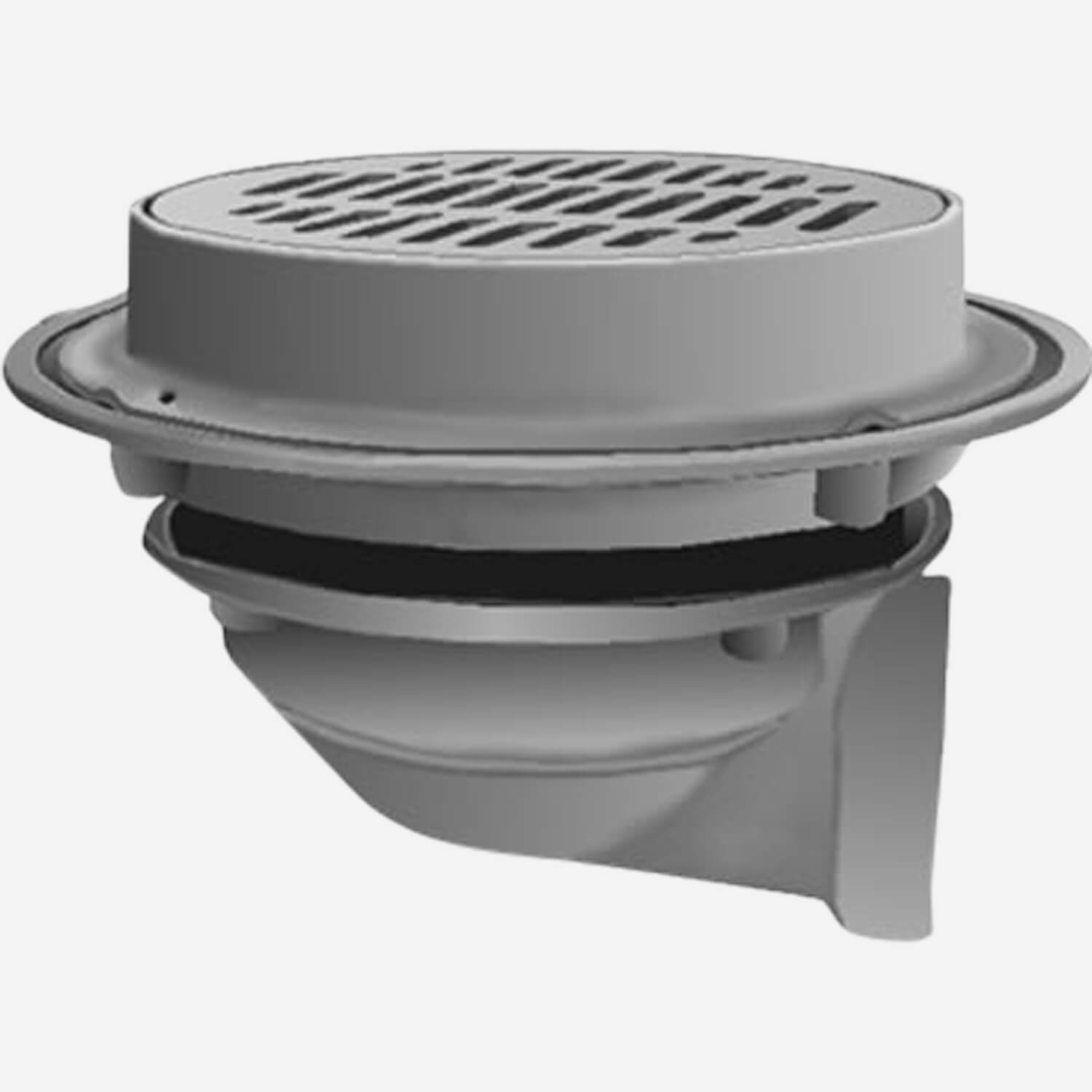

2147 Floor Drain CAD DrawingFloor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Side Outlets 2147C | Caulk; 2147T | Threaded] Note: 2142 drain also shown on left sideDWG119 KB

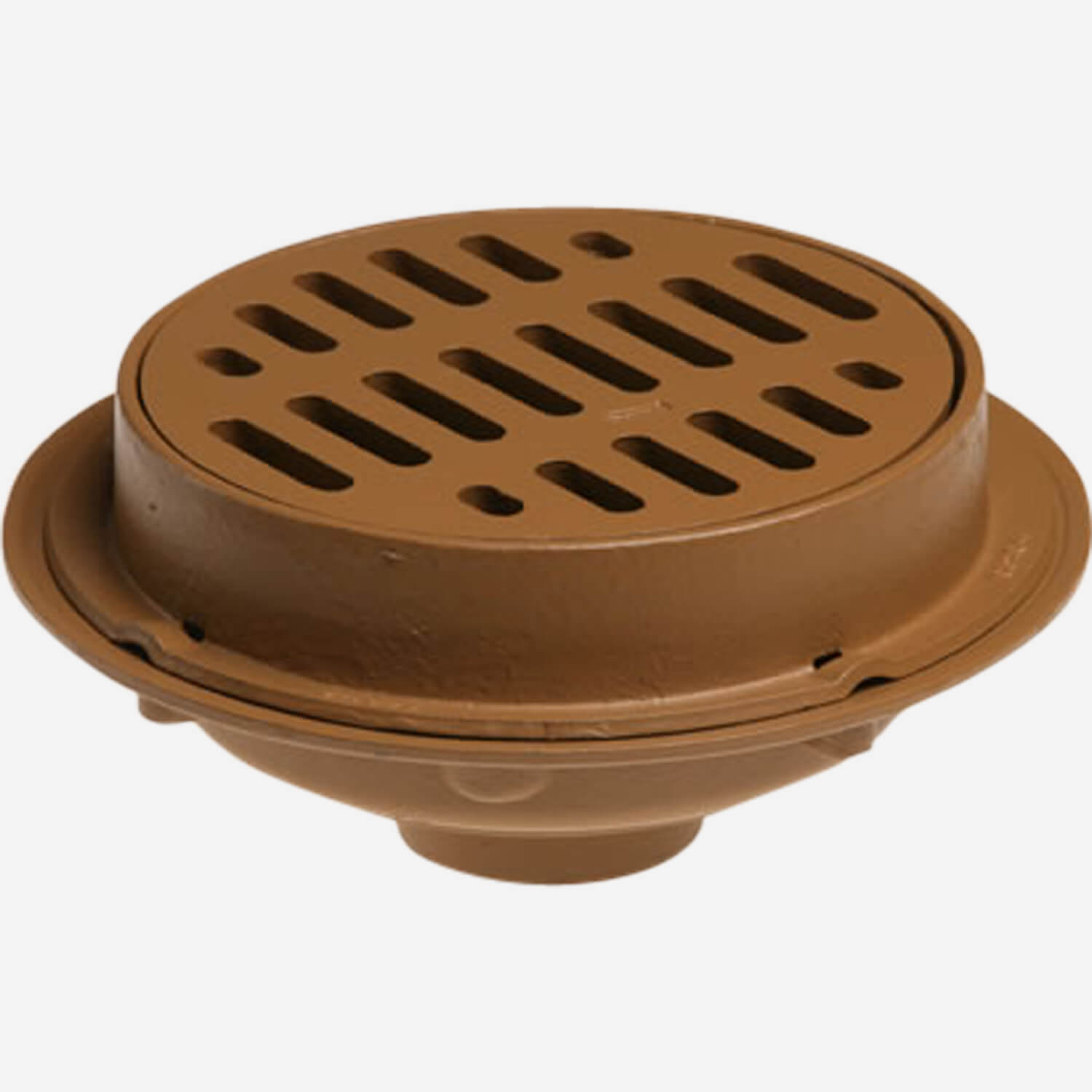

2142 Drain (dwg)Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub]DWG88 KB
2142 Drain (rfa)Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub]RFA600 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
2142 Drain (hi res jpg)Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub]JPG21 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

2142C | Caulk Bottom Outlet;
2142T | Threaded Bottom Outlet
2142Y | No-Hub Bottom Outlet

2147C | Caulk Side Outlet
2147T | Threaded Side Outlet
