Figure Number: DX2312

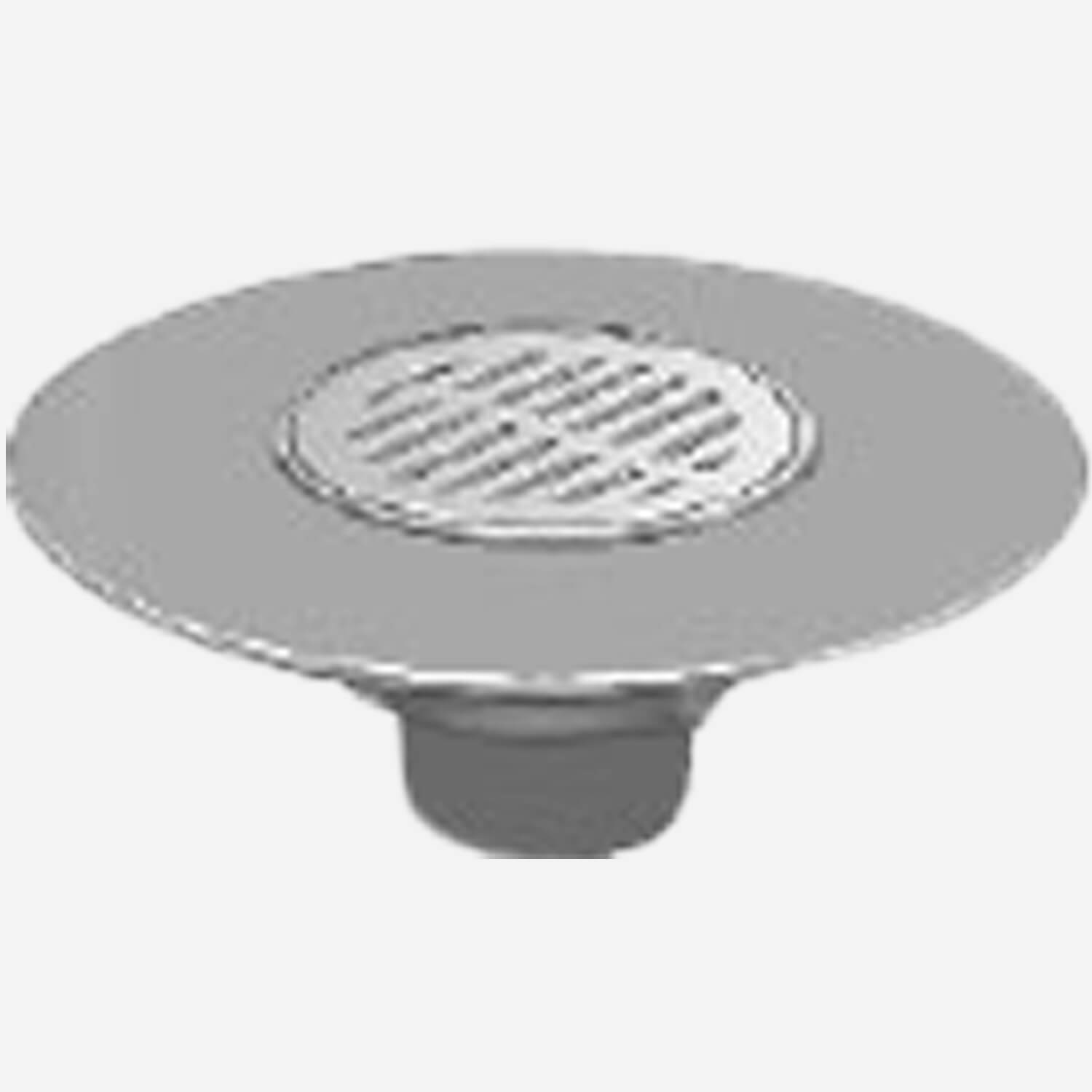

DX2312Floor Drain with Adjustable Lip Dimension

This Duco coated cast iron medium duty floor drain has an adjustable 8-1/2" diam. top for easy leveling with adjacent surfaces. Its integral 17" diam. flange is creates a seamless watertight bond with waterproof floor coverings. It is available with and without a sediment bucket. The sediment bucket version employs a Safe-Set® design that ensures proper realignment of its sediment bucket after emptying. The Safe-Set® design of this general purpose floor drain helps protect drainage systems from wastewater debris.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    NO-HUB Adaptor - (Specify Fig. 2646Y), Securing Holes -SH, Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Technical Drawings
DX2312 Floor Drain CAD DrawingFloor Drains with 8-1/2" Round Adjustable Top, Wide Flange Deck Drain, Adjustable Lip Dimensions [Less Bucket DX2312C | Caulk Outlet; DX2312T | Threaded Outlet; With "Safe-Set" Bucket | DX2312CB | Caulk Outlet; DX2312TB | Threaded Outlet]DWG62 KB
DX2312 Drain Revit DrawingFloor Drains with 8-1/2" Round Adjustable Top, Wide Flange Deck Drain, Adjustable Lip Dimensions [Less Bucket DX2312C | Caulk Outlet; DX2312T | Threaded Outlet; With "Safe-Set" Bucket | DX2312CB | Caulk Outlet; DX2312TB | Threaded Outlet]RFA504 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
