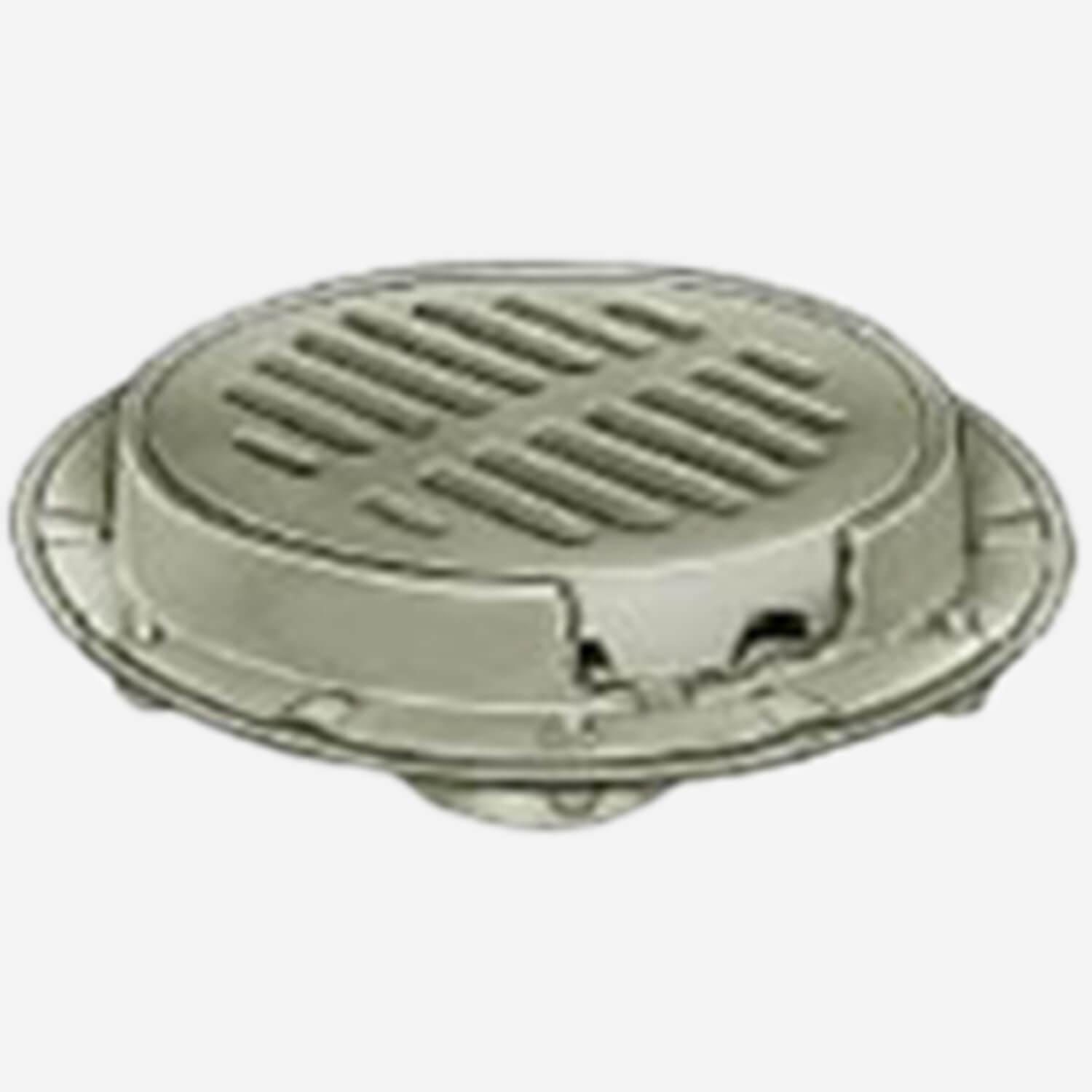

9733Heavy Duty Tractor Grate Floor Drain

The CF8 rough finish stainless steel (equivalent to type 304) body and grate in this floor drain resist corrosive liquids found in chemical laboratories, dairies, breweries, and atomic energy and bottling plants while helping to maintain high sanitation standards. It has a large, 15” (380) diam. loose set, non-tilt tractor grate that withstands very heavy traffic in areas where wastewater contains no sediment or debris and where high flow is anticipated. (Note: This drain is dimensioned for installation in areas where a shallow body is required.)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), Satin Finish Top - SF, 90° Side Outlet (Specify Fig. 9759), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, Cast Iron Grate -CIG, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Ductile Iron Grate - M, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Drain
