Figure Number: 271FM-CTS
Contact a Representative

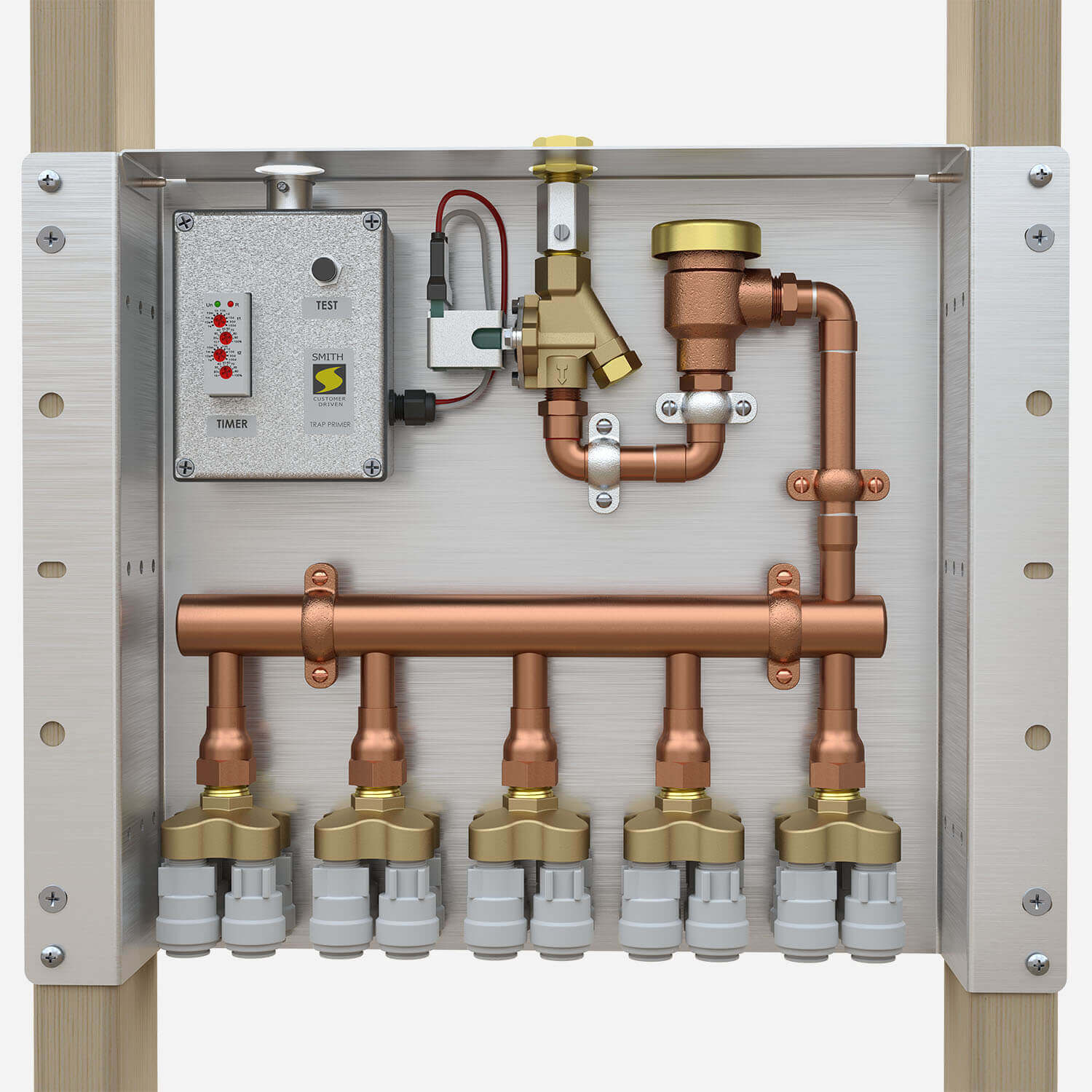

271FM-CTSElectronic Trap Primer in Flush Mount Enclosure with Push-in Fittings

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap ensure the traps maintain a water seal. Flush Mount or recessed Electronic Trap Primer mounts flush with the finished wall.

Flush Mount (Recessed) Trap Primers feature:

  • A multi-port outlet assembly primes 4 to 36 traps.
  • A factory pre-set timer is programmed to discharge water to the trap every 24 hours
  • The steel recessed mounting enclosure fits between studs, 16-inches (40.64 cm) on center.
  • Units are provided with shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold.
  • -CTS suffix provides push-in connections for faster installation
  • Compatible with Building Management System (BMS)
  • Available in 271FM-CTS, 272FM-CTS configurations (see figure list below)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Compliance/Certifications
    IAPMO NRTL EGS
  • Variations
    Galvannealed Steel Cover -GC, Stainless Steel Enclosure -SS, Solid Stainless Steel Cover -SSC, Hinged Access Door with Screwdriver Latch -SL, Hinged Access Door with Cylinder Lock -CL, Vandal Proof Screws -U, Interface with Facilities Energy Management System -EMS
Installation InstructionsInstall/Operate Guide 270, 271, 272 Trap Primer (pdf)
View
SubmittalSubmittal 271FM-CTS Trap Primer (pdf)
View
Technical Drawings
DWG 271FM-CTS Trap PrimerElectronic Trap Primer in Surface Mount Enclosure - 3 Manifolds each with 8 OutletsDWG2 MB
DWG 272FM-CTS Trap PrimerElectronic Trap Primer in Flush Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections)DWG2 MB
RFA 271FM-CTS Trap PrimerElectronic Trap Primer in Flush Mount Enclosure with Single Manifold and Push-in Fittings (20 max outlet connections)RFA3 MB
RFA 272FM-CTS Trap PrimerElectronic Trap Primer in Flush Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections)RFA2 MB
Literature / Videos
Submittal 272FM-CTS Trap Primer (pdf)Electronic Trap Primer in Flush Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections)PDF2 MB
Kwik Ship® Brands: Smith Fluid Controls (pdf)Kwik Ship® Brands: Smith Fluid Controls (pdf)PDF780 KB
Kwik Ship® Brands: Brochure (pdf)Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.PDF9 MB
Kwik Ship® Brands: Commercial Engineering Approval FormKwik Ship® Brands: Commercial Engineering Approval FormPDF3 MB
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Trap Primers Overview with Chris LevinsFluid Controls Trap Primers Overview with Chris LevinsVideo
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch
Figure Number 271FM-CTS Series [submittal]
Multi-port assembly designed to prime 4 to 20 floor drain P-traps; Designed to interface with Building Management System (BMS). Hardwire electrical connections provided. Outfitted with -CTS push-in Connections for 5/8" O.D. tubing

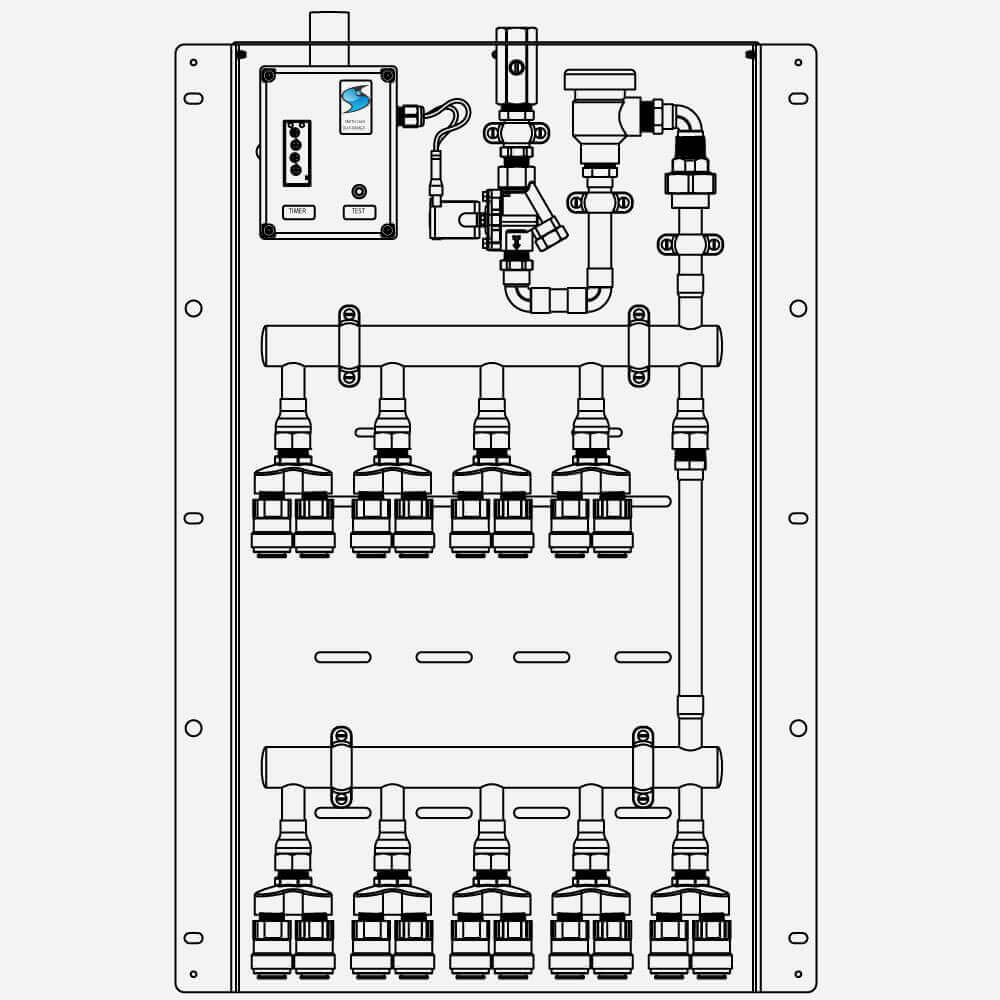

Figure Number 272FM-CTS Series [submittal]
Muti-port assembly designed to prime 4 to 36 floor drain P-traps; Designed to interface with BMS. Hardwire electrical connections provided.  Outfitted with -CTS Push-in Connections for 5/8" O.D. tubing
