Model 9960CB-ME
25-11/16" Square Iron Grate for Zip Trench® Catch Basin - Load Class E

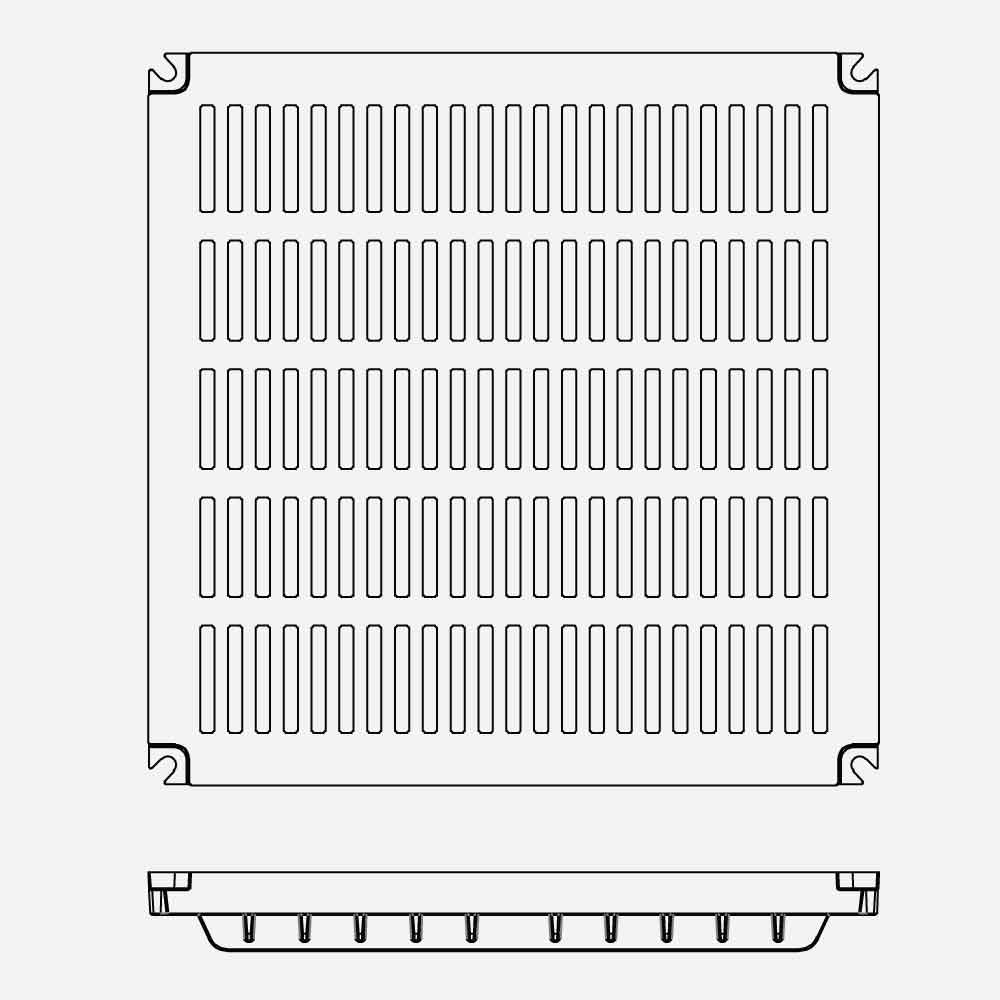

This provides a ductile iron grate for the Zip Trench® 9960CB Trench Drain Catch Basin. The grate measures 25-11/16" (652 mm) x 25-11/16" (652 mm) x 1-1/2" (38 mm) to fit in the coated steel frame for the catch basin. Grate is rated for Class E and weighs 172 lbs 78.02 kg). The grate features 1/2" x 3-3/4" (12.70 mm x 95.25 mm) slots providing 207 sq inch (1335.48 sq cm) open area.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|

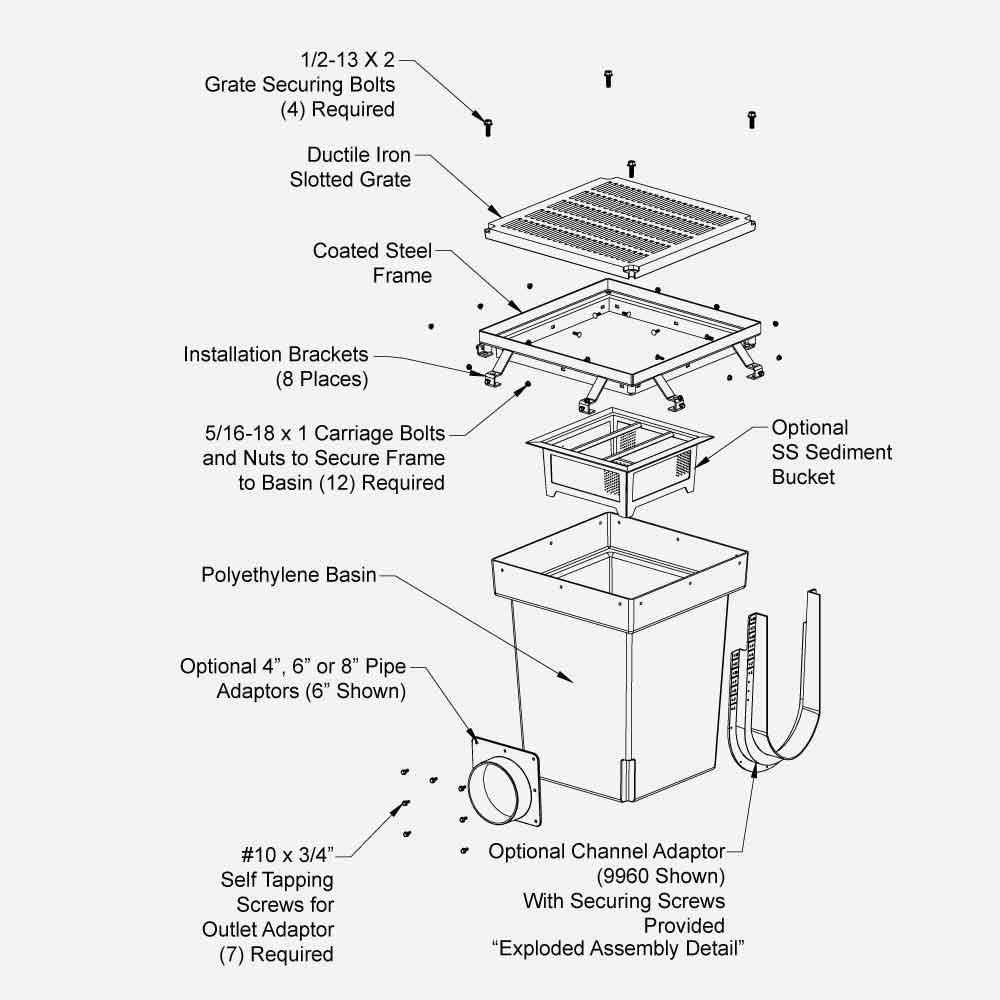

 | | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® [Featured Grates 9960CB-MC | Ductile Iron Slotted Grate Load Class C; 9960CB-ME | Ductile Iron Slotted Grate Load Class E; 9960CB-ADAC | Ductile Iron ADA Grate Load Class C; 9960CB-ADAE | Ductile Iron ADA Grate Load Class E] | 0 | 2 MB |
