Figure Number: 5812
Contact a Representative

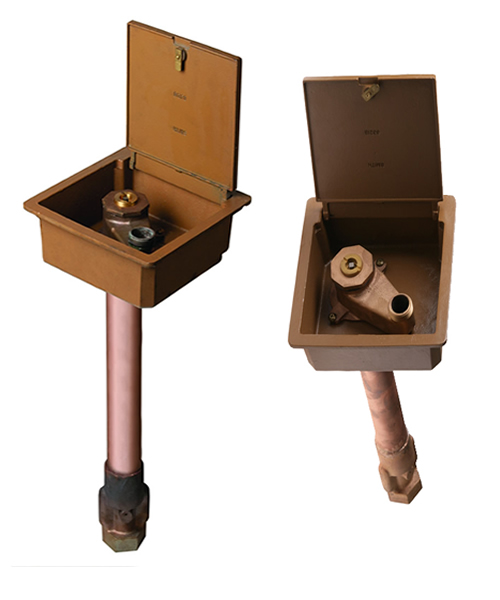

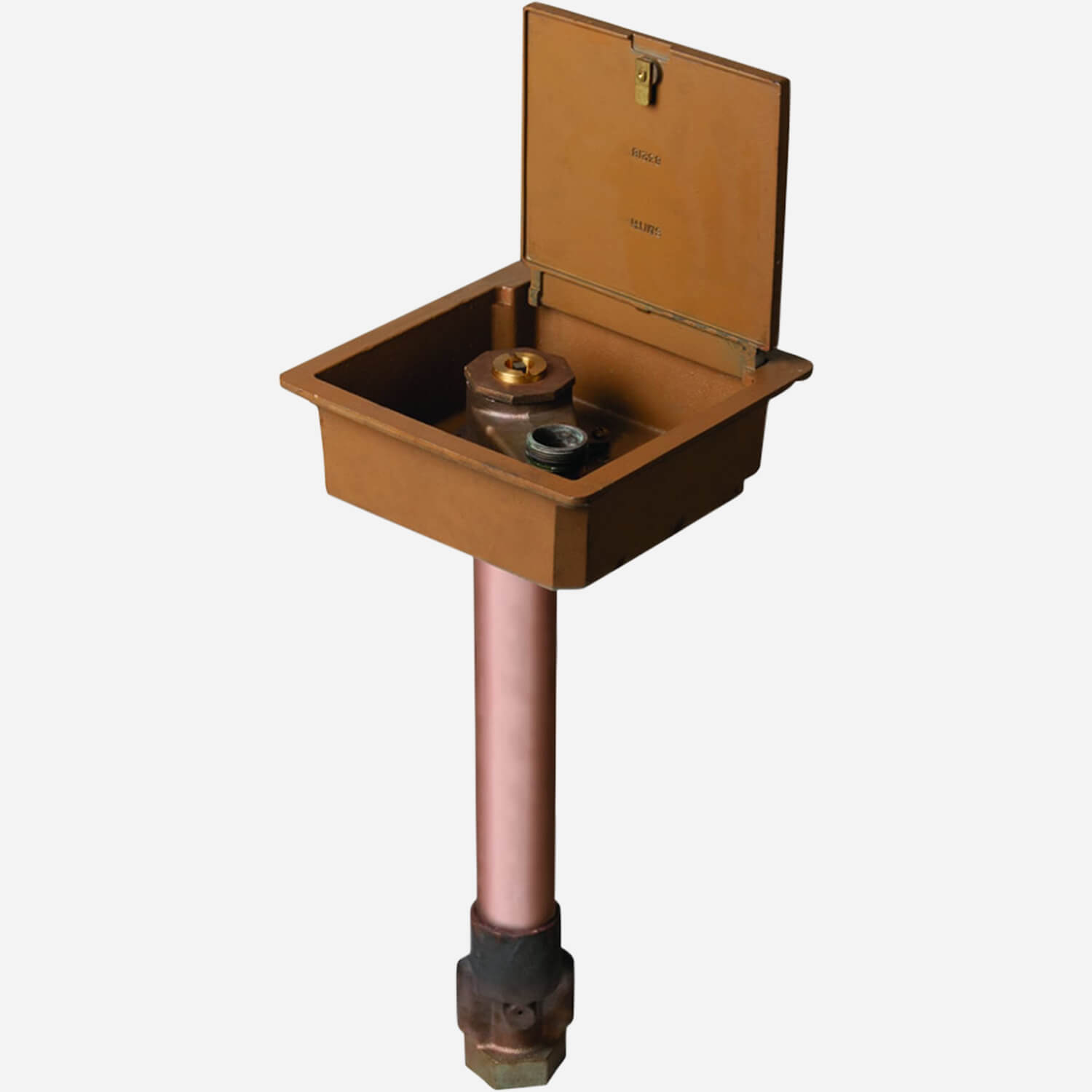

5812Non-Freeze Boxed Ground Hydrants

Corrosion and tamper resistant, the 1.25" hose connection and faucet control of this hydrant are protected inside this fixture's bronze lockbox. Engineered for exterior in-ground installation, its valve and 1.25" water inlet extend below the frost line where a small hole in the valve housing allows any residual water to drain once the valve is closed, further preventing rupture of the housing due to freezing conditions. This hydrant is operated by a removable "T" handle key stopping unauthorized use.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    1/8"(3) NPT Drain Hole -NV - in Box, 1/8"(3) NPT Drain Hole -NV, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Polished Bronze -PB - Box Face, Nickel Bronze Top -NB, Rough Bronze Box Face -RB
  • Product Type
    Hydrant
SubmittalSubmittal 5812 Hydrant
View
Technical Drawings
DWG 5812 HydrantDWG 5812 HydrantDWG135 KB
RFA 5812 HydrantRFA 5812 HydrantRFA240 KB
RFA 5813 HydrantRFA 5813 HydrantRFA240 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5812/5813/5814 - Box Type Hydrants with 1 1/4", 1 1/2" or 2" Connections(hi res jpg)JPG79 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch
  • 5813 1 1/2" (38) Inlet and Hose Connections
  • 5814 2" (51) Inlet and Hose Connections
