Figure Number: 5810
Contact a Representative

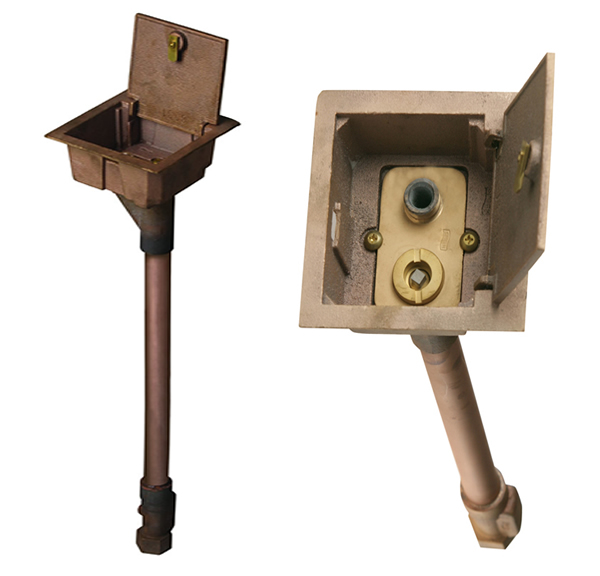

5810Hinge-Covered Box, Non-Freeze Boxed Ground Hydrants

Corrosion and tamper resistant, the 3/4" hose connection and faucet control of this hydrant are protected inside a hinged bronze lockbox. Engineered for exterior in-ground installation, its valve and water inlet extend below the frost line where a small hole in the valve housing allows any residual water to drain once the valve is closed, preventing rupture of the housing due to freezing conditions. This hydrant is operated by a removable "T" handle key stopping unauthorized use.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    1"(25) Hose Connection -HC1 - Adaptor, Less Drain Hole -LD, 1/8"(3) NPT Drain Hole -NV - in Box, 1/8"(3) NPT Drain Hole -NV - in Valve Housing, Mild Climate -SAP, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze -NB - Box, Polished Bronze -PB - Box
  • Product Type
    Hydrant
SubmittalSubmittal 5810, 5810 Hydrant
View
Technical Drawings
5810, 5811 Hydrant CAD DrawingHinge-Covered Box, Non-Freeze Boxed Ground Hydrants [Figure 5810 | 3/4" (19 mm) Inlet; 5811 | 1" (25 mm) Inlet] DWG129 KB
5810 Hydrant Revit DrawingHinge-Covered Box, Non-Freeze Boxed Ground Hydrants [Figure 5810 | 3/4" (19 mm) Inlet] RFA468 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5810, 5811 Hydrants (hi res jpg)Hinge-Covered Box, Non-Freeze Boxed Ground Hydrants [Figure 5810 | 3/4" (19 mm) Inlet; 5811 | 1" (25 mm) Inlet] JPG95 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch
  • 5811 1"(25) Inlet
