Figure Number: 3610-3625
Contact a Representative

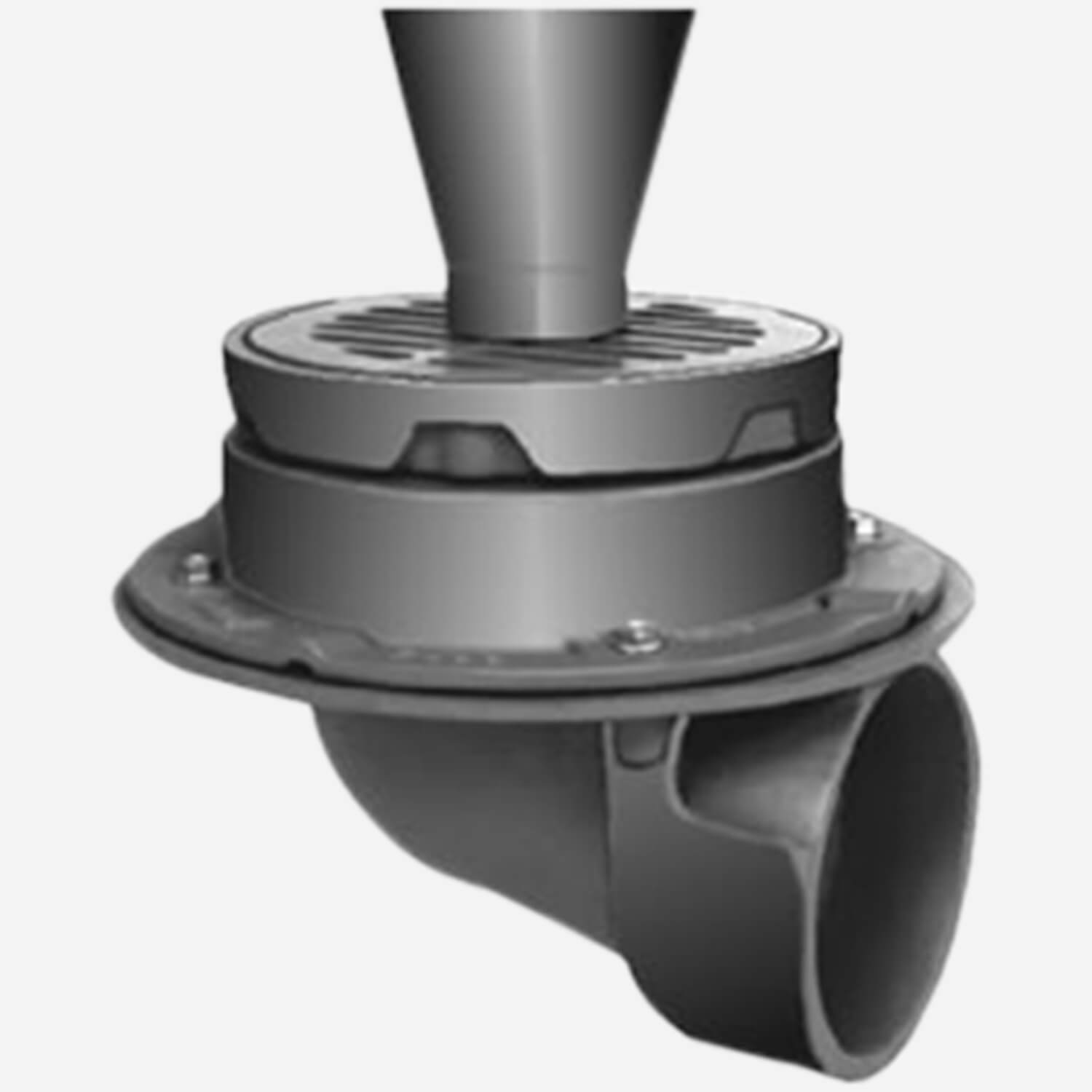

3610-3625Adjustable Round Top and Round Funnel

The 4” diam. funnel provided with this drain can be secured anywhere to the drain’s 8-1/2”, or 12” diam. strainer head to catch wastewater from above (an indirect connection) while the free area of the strainer serves the surrounding floor area. To simplify installation, the threaded strainer assembly rotates to the level of adjacent flooring after installation. The Duco coated cast iron drain has an integral collar that can be specified for use as a flashing clamp for a watertight seal with flooring materials and is available with down or side outlet.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains, Secured Grate -SG, Sediment Bucket -B, 6"(150) Dia. Funnel (Fig. 3581), 6(150) x 2 1/2(64) x 1"(25) High Oval Funnel (Fig. 3590), Vandal Proof -U - Secured Grate, Y NO-HUB - (Available on Bottom Outlet Drains), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Chrome Plated -CP - Grate and Funnel, Nickel Bronze -NB - Grate and Funnel, Polished Bronze -PB - Grate and Funnel
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
SubmittalSubmittal 3610-3625 Drain (pdf)
View
Technical Drawings
3610-3625 Drain (dwg)Funnel-Ceptor® Indirect Waste Drain with Adjustable Round Tops, Medium Duty Grate, Round Funnel [Bottom Outlet 3610C, 3610T, 3610Y, 3615C, 3615T, 3615Y; Side Outlet 3620C, 3620T, 3625C, 3625T]DWG83 KB
Literature / Videos
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

Bottom Outlet
8-1/2" Top
3610C | Caulk Outlet
3610T | Threaded Outlet
3610Y |  No-Hub Outlet

12" Top
3615C | Caulk Outlet
3615T | Threaded Outlet
3615Y |  No-Hub Outelt


Side Outlet
8-1/2" Top
3620C | Caulk Outlet
3620T | Threaded Outlet

12" Top
3625C | Caulk Outlet
3625T | Threaded Outlet
