Fine-Line Linear Shower Drain Banner

Linear Shower Drains–Premium Drainage Solutions

Stylish, Functional, and Versatile Linear Drains for Modern Showers

Jay R. Smith Mfg. Co.® has set the industry standard for exceptional plumbing and drainage systems manufactured in North America since 1926. Generations of contractors, engineers and building owners have trusted our unwavering commitment to quality and innovation.

Experience the perfect balance of time-tested reliability and cutting-edge design with our premium linear shower drains. Here, tradition meets innovation to transform your modern shower space.

What is a Linear Shower Drain?

Linear shower drains, also known as trench or channel drains, are elongated drainage systems designed to efficiently remove water from commercial shower areas. Unlike traditional center drains, which collect water at a single point, linear drains feature a channel that spans one side or edge of the shower floor.

Comparison of Linear and Traditional Drains

Traditional vs. Linear Drains

Traditional center drains require the shower floor to be sloped from all directions toward a central point, creating a four-way pitch. In contrast, linear drains allow for a single-plane slope in one direction, simplifying installation while maintaining optimal drainage performance. This fundamental difference transforms both the functionality and aesthetics of commercial shower spaces.

Commercial Hotel Shower

Key Advantages for Commercial Applications

Sleek, Modern Appearance: Linear drains provide a sophisticated, minimalist aesthetic that elevates the design of hospitality bathrooms, institutional shower facilities, and commercial bathrooms.

Superior Water Management: The extended drainage channel captures water more efficiently across a larger surface area, preventing pooling and reducing slip hazards.

Enhanced Accessibility: Linear drains facilitate barrier-free shower designs that meet ADA compliance requirements, making them ideal for healthcare facilities, universities, hotels, and other institutional settings where accessibility is essential.

Design Flexibility: Their versatile configuration supports various flooring materials and installation methods, providing architects and specifiers greater freedom when designing commercial shower spaces.

Simplified Maintenance: The streamlined design allows for easier cleaning and maintenance, reducing long-term operational costs for facility managers.

FineLine Linear Shower Drains

The 9667 Fine-Line® Designer Shower Drains by Jay R. Smith Mfg. Co.® add artful design to your shower stall. Fine-Line® pairs perfectly with natural stone, marble, ceramic, porcelain, or solid surface materials.

  • Stainless steel drain body with satin finish grates
  • Designer grate options for a soothing, artistic, or clean and elegant look
FineLine Linear Shower Drains

Customization Capabilities

For projects with unique requirements, JR Smith offers comprehensive customization capabilities:

  • Custom Lengths: Engineered to precise specifications for any commercial shower configuration
  • Special Outlet Placements: Tailored positioning to accommodate existing plumbing infrastructure
  • Custom Grate Designs: Bespoke patterns, including logo integration for branded hospitality environments
FineLine Shower Drains

Choosing the Right Linear Drain

Sizing Guide

Select a drain length proportional to shower width, typically covering 80-90% of the wall length. Standard commercial sizes include 24", 48", and 60", with custom lengths available for specialized installations.

Placement Considerations

Wall placement maximizes drainage efficiency and simplifies installation with a single-direction slope. Center placement creates a focal design element and may better accommodate existing plumbing configurations in renovation projects.

Outlet Options

Side outlets provide lower installation profiles, which is ideal for projects with limited floor depth. Bottom outlets offer flexible pipe routing and may better accommodate existing drain locations during retrofits.

Material Selection

Choose material based on environmental demands: standard stainless steel for most applications, marine-grade stainless for chlorinated or saltwater exposure, and specialty finishes for design-forward projects requiring specific aesthetic coordination.

Applications

  • Residential Showers: Modern apartment applications
  • Commercial Spaces: Hotels, spas, fitness centers
  • Healthcare Facilities: Hospitals and assisted living
  • Hospitality: Resort and luxury applications

FAQ Section

Where is the best place to put a linear drain in a shower?

Linear drains perform optimally when placed either along the wall opposite the shower entrance or beneath the fixture. Wall placement enables a simple single-directional slope, while perimeter placement maximizes water capture in high-volume commercial installations.

Do you need a flange for a linear shower drain?

An integrated waterproofing flange is essential for commercial installations to prevent water infiltration. JR Smith linear drains feature built-in flanges that integrate seamlessly with industry-standard waterproofing membranes, ensuring long-term protection against leaks.

Why invest in quality linear drains?

Quality linear drains provide superior durability in high-traffic commercial environments, reduce long-term maintenance costs, ensure code compliance, prevent costly water damage, and enhance the overall value of your project while providing the aesthetic appeal demanded by today's clients.

What sizes are available for linear shower drains?

Standard commercial sizes include 24", 36", 48", and 60" lengths. JR Smith also offers custom sizing to accommodate unique project requirements, ensuring optimal drainage for any commercial shower configuration.

How do I clean and maintain my linear shower drain?

Regular maintenance involves removing the grate, clearing debris from the channel, and wiping surfaces with non-abrasive cleaners suitable for stainless steel. Quarterly deep cleaning with a mild descaling solution helps prevent mineral buildup in commercial settings.

Can linear drains be customized for unique projects?

JR Smith offers comprehensive customization, including specific lengths, outlet positions, load ratings, and specialized finishes. Our engineering team works directly with specifiers to develop solutions that meet exact project requirements while maintaining all relevant code compliance.

Need more information?

  • Stainless steel drain body with satin finish grates
  • Optional, high polished finish for a slick look
9667 Fine-Line Linear Shower Drains
  • Designer grate options:

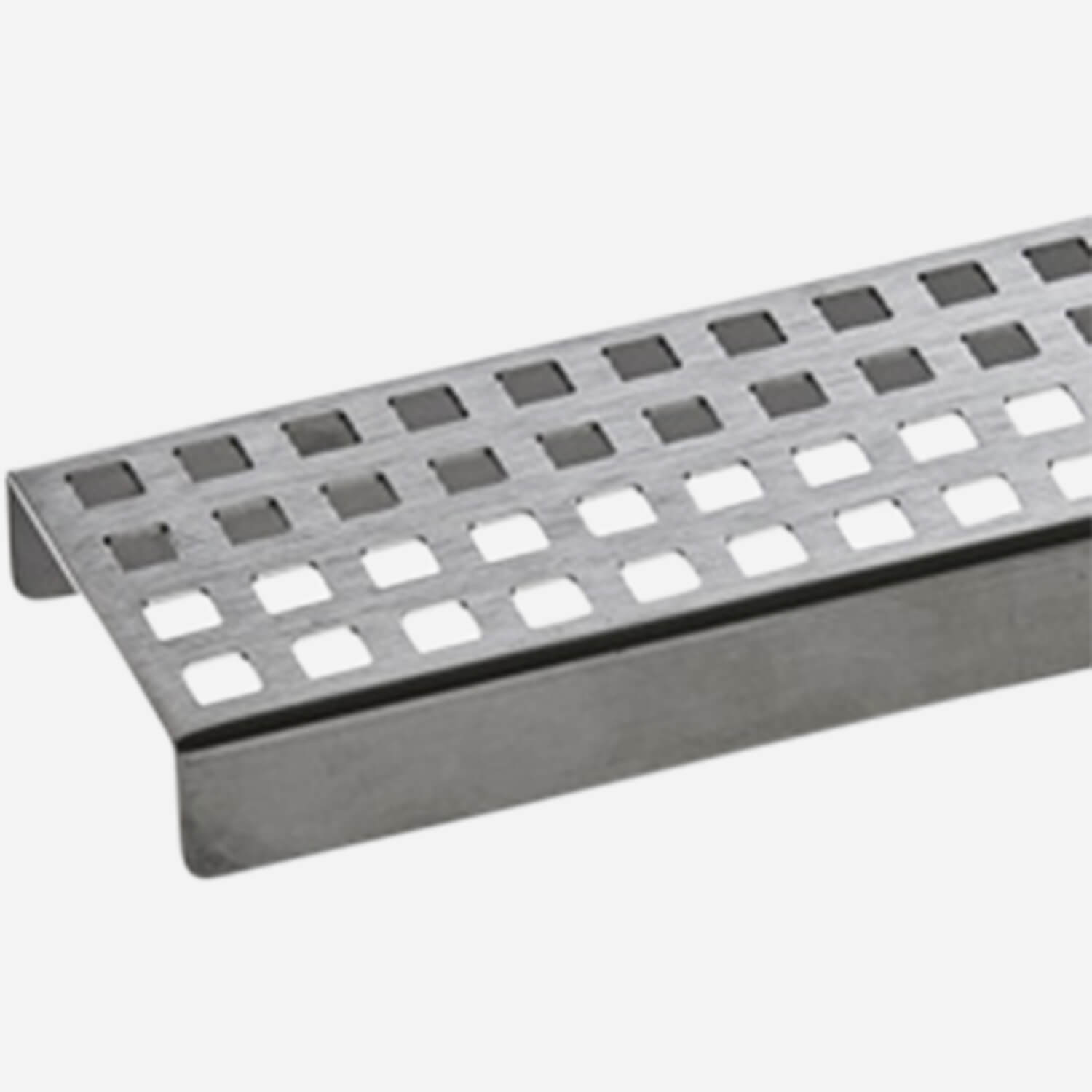

    • Symmetrical perforation for enhanced water flow

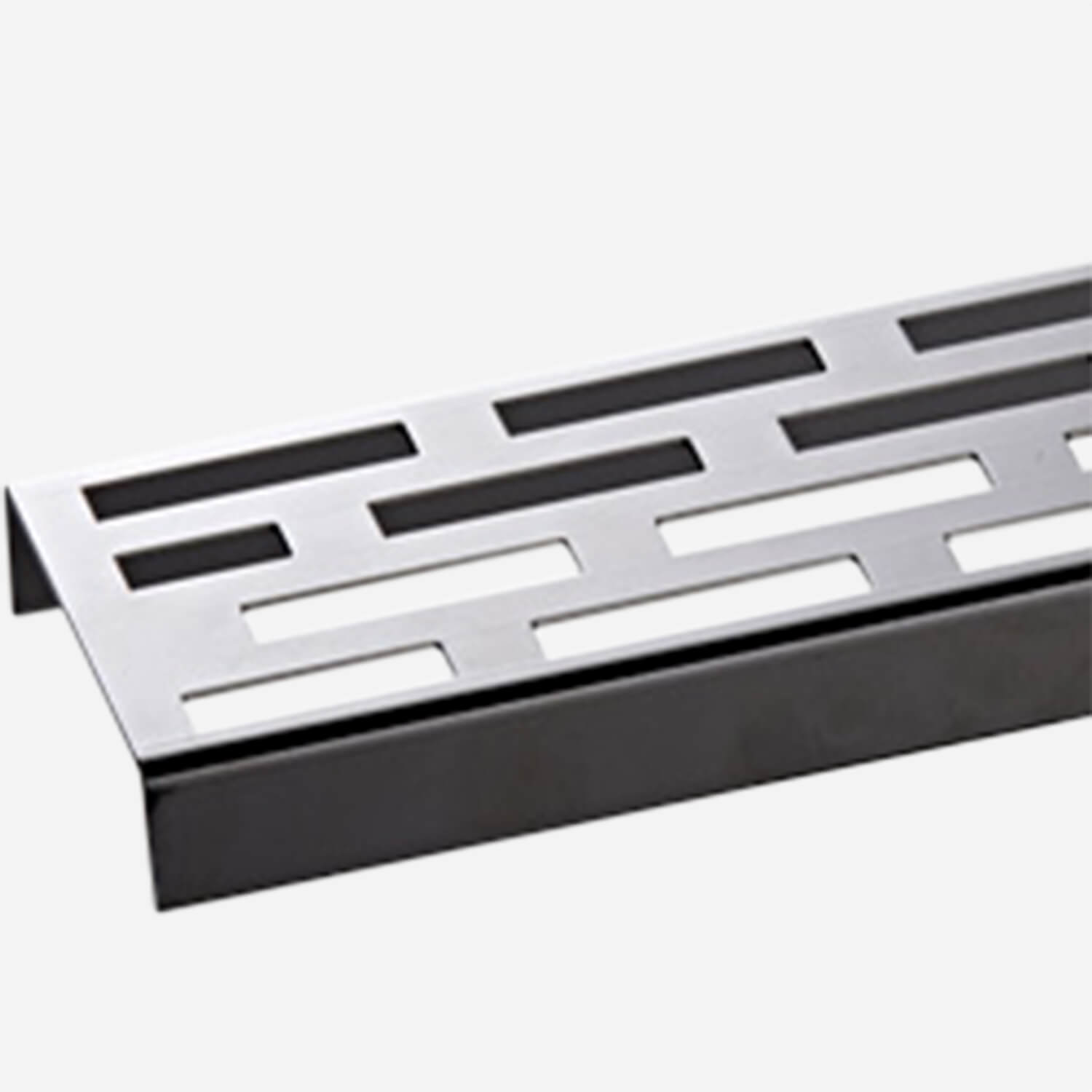

    • Geometric slots add an artistic look

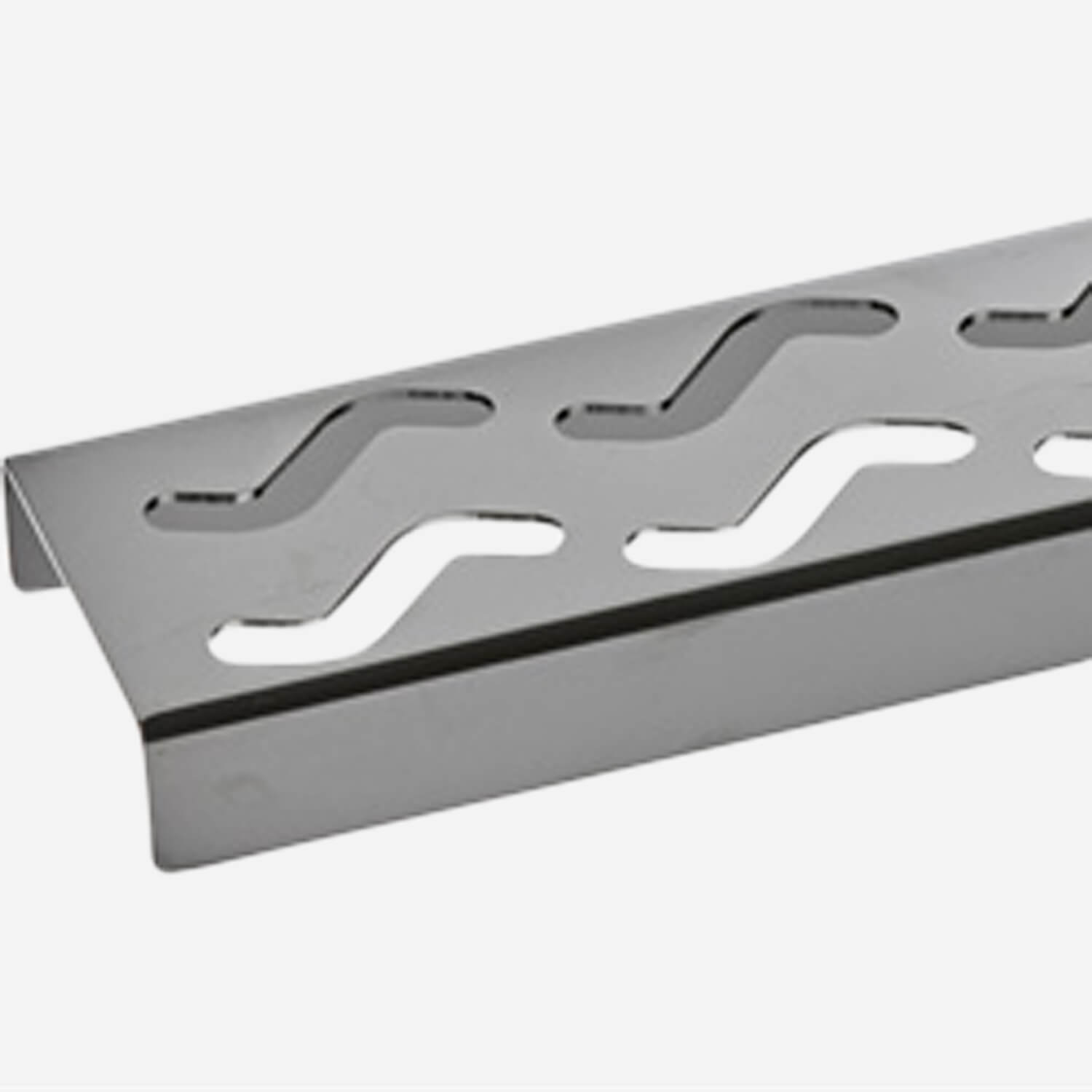

    • Soothing ocean waves to promote calm

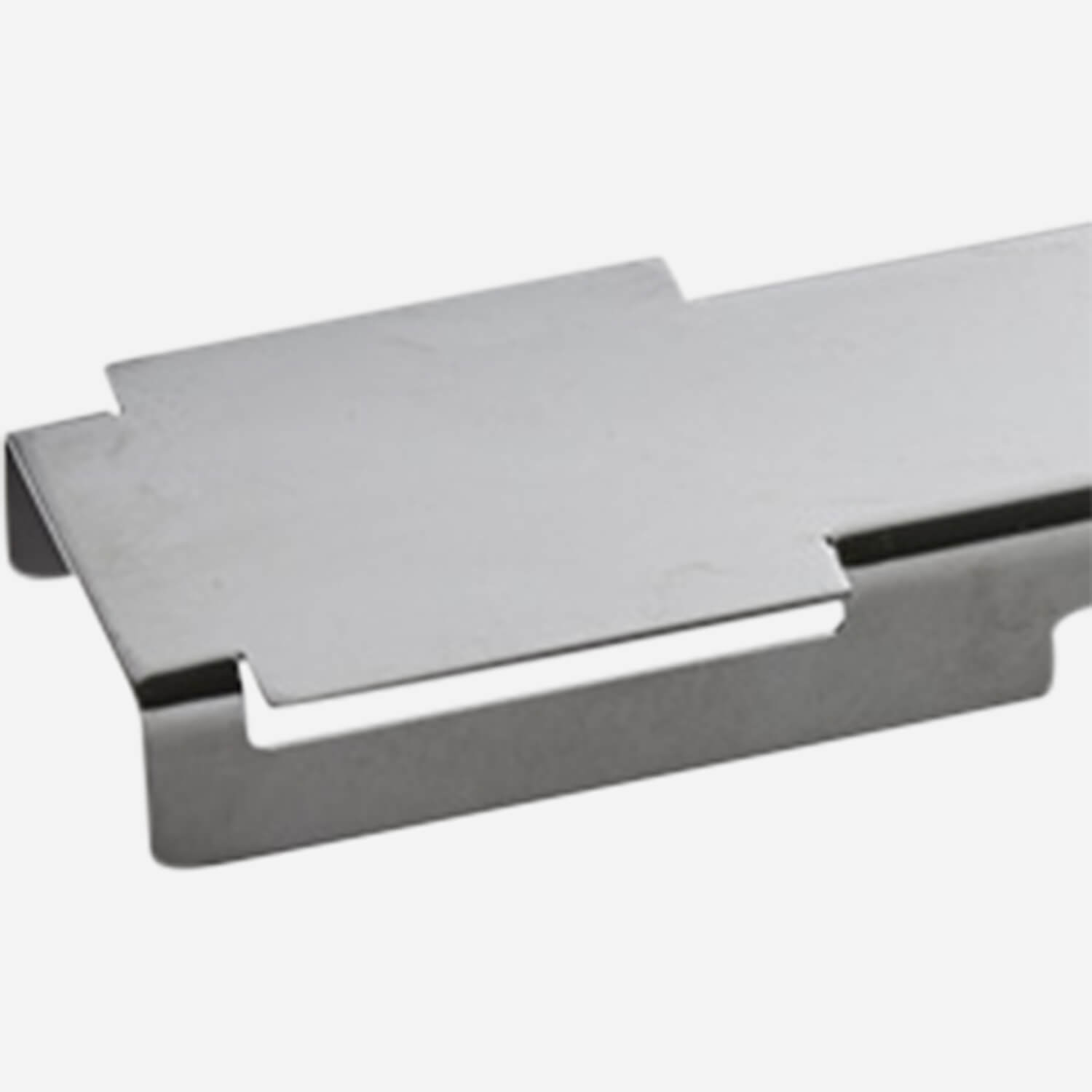

    • Solid rim flow for a clean and elegant design

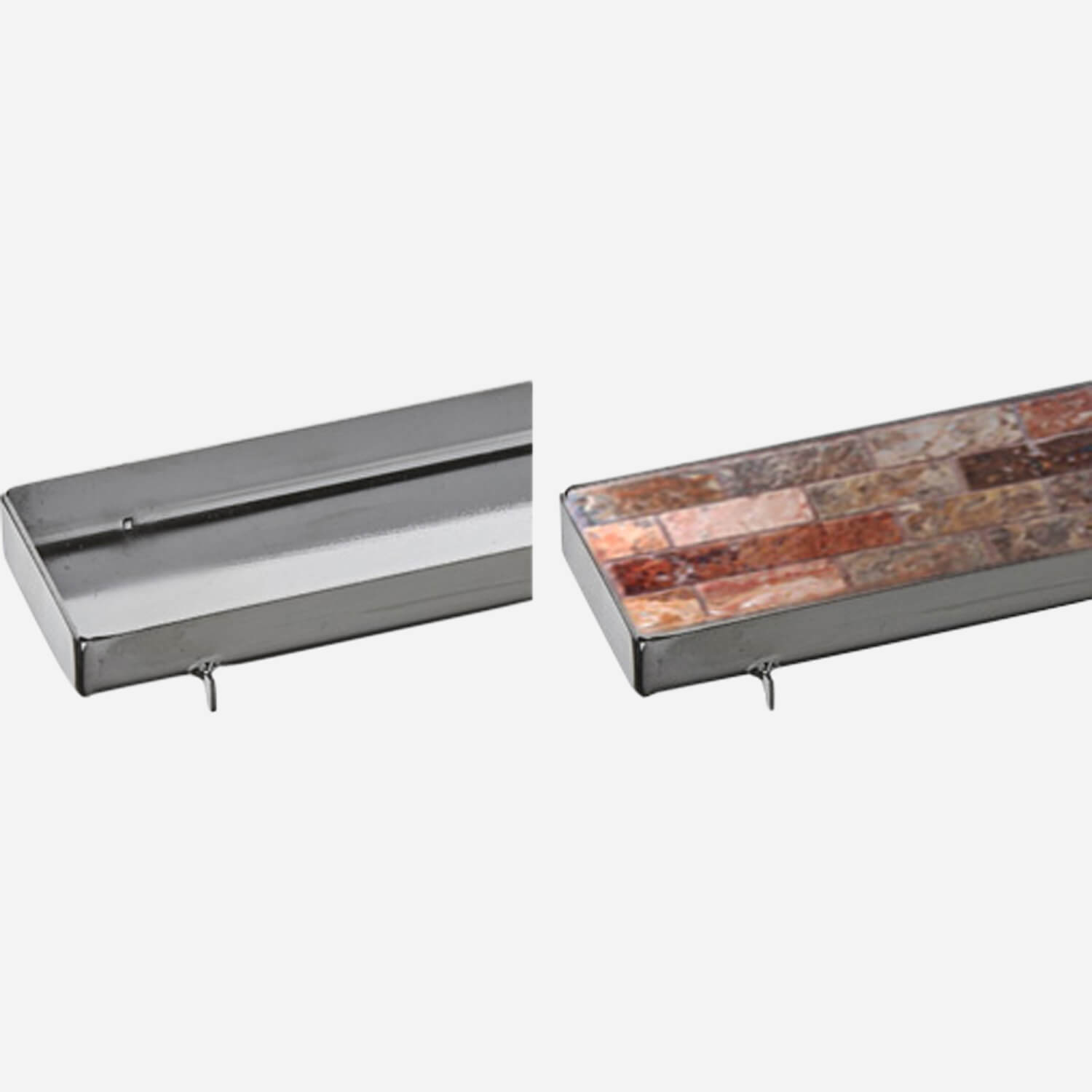

    • Tile inlay (use your tile or stone) to create a custom finish

Applications

Healthcare Applications

Healthcare/Hospitals

Athletic Facilities

Athletic Facilities

Residential Applications

Residential

Hospitality Applications

Hospitality/Hotels


Grate Variations

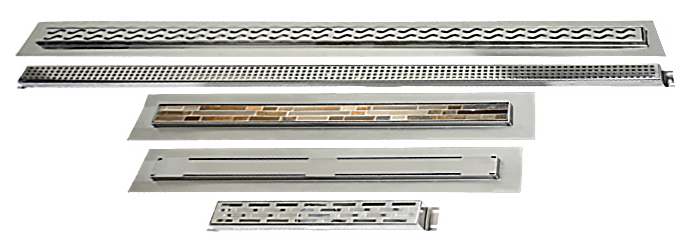

Fine-Line Grate Options

Fine-Line® Literature
