Figure Number: 2039

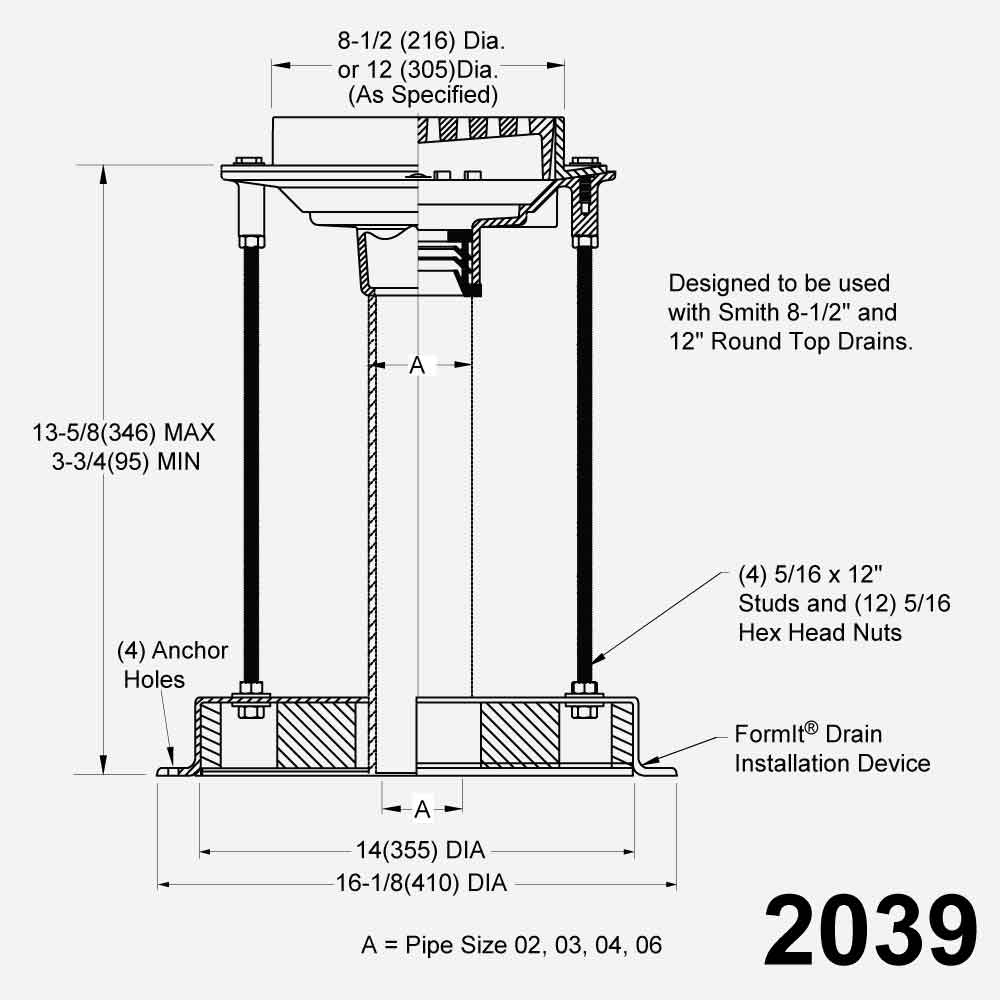

2039Floor Drain with FormIt® Installation Device

This 8-1/2" (216 mm) or 12" (315  mm) floor drain was developed to save contractor installation time and speed construction. Secured by four screws, the FormIt® drain assembly, the drain, a removable foam form, and a carriage are screwed in place to decking so they don't shift when concrete is poured. The need to reset misaligned drains is eliminated. Once the concrete sets, the foam is easily removed leaving an open path for connection to the waste line. The strainer top can then be made level with adjacent flooring from the topside after the finished flooring is installed.

Pro Tip: We designed this labor-saving floor drain stabilizer assembly with multi-story building construction in mind. Multiple floors mean multiple drains and an increased risk of some of those drains falling over or being knocked out of position prior to and during the pour. Simply mount this assembly directly onto the “fly-away” form and you eliminate the need to spend time and manpower going from floor to floor resetting misaligned drains.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Square Top -S, Vandal Proof -U - Screws, T Threaded Outlet, Trap Primer Connection -P050, Trap Primer Connect -P075, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized -G - Body, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer
  • Product Type
    Floor Drain
  • Benefit
    Labor Saving
Technical Drawings
2039 Series Floor Drain CAD DrawingsFloor Drain with FormIt® Installation Device [2039 | Basic Figure No; 2039-DID | Installation Device Only]ZIP535 KB
2039 Floor Drain Revit DrawingFloor Drain with FormIt® Installation DeviceRFA2 MB
Literature / Videos
Submittal 2039-DID Floor DrainFormIt® Installation Device Only for Floor Drain 2039PDF491 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch

Specify
pipe size 02(50), 03(75), or 04(100)
8-1/2" (216 mm) or 12" (305)


Figure 2039-DID | FormIt® Drain Installation Device Only
