Figure Number: 2020

2020Floor Drains With Adjustable Strainer Heads and Varying Trap Options

Available as shallow, deep, or with floor level cleanout traps these drains are engineered for installation in showers, kitchens and other light duty floors. This drain can be ordered with a variety of specialized, adjustable round and square strainer heads that are easily leveled with adjacent flooring.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Ball Float Backwater Valve -BFV, High Auxiliary Inlet -NH 1 1/2(38), 2"(51), Hinged Grate -H, Low Auxiliary Inlet -NL, Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized Cast Iron Body -G, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer
  • Product Type
    Floor Drain
Technical Drawings
2020T, 2030T, 2040T, 2021S, 2031S, 2041S Drain CAD DrawingsFloor or Shower Drains with Adjustable Strainer Heads [Figure 2020 | Shallow Trap -Side Outlet; 2030 | Deep Trap - Side Outlet; 2040 | Deep Trap with Floor Cleanout - Side Outlet]DWG113 KB
2020, 2021 Floor Drain (rfa)Floor or Shower Drains with Adjustable Strainer Heads [2020, 2021 | Shallow Trap -Side Outlet]RFA460 KB
2030, 2031 Floor Drain (rfa)Floor or Shower Drains with Adjustable Strainer Heads [2030, 2031 | Deep Trap - Side Outlet]RFA740 KB
2040, 2041 Floor Drain (rfa)Floor or Shower Drains with Adjustable Strainer Heads [2040, 2041 | Deep Trap with Floor Cleanout - Side Outlet]RFA492 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Additional Options Strainer Heads for Floor Drains (pdf)Optional Strainer Heads [Suffixes -A, -AV, -B, -BS, -C, -D-E,-F, -F37, -F38, -G, -H, -J, -K, -L, -M, -N, -P,-R, -T, -V, -W, -X, -Y, -Z, -69] applicable on Figures 2005, 2010, 2020, 2038, 2095PDF451 KB
Can't find what you are looking for? Get in touch

Floor or Shower Drains with Side Outlets Adjustable Strainer Heads

2020T | Shallow Trap - Threaded Outlet
2021S | Shallow Trap - Spigot Outlet

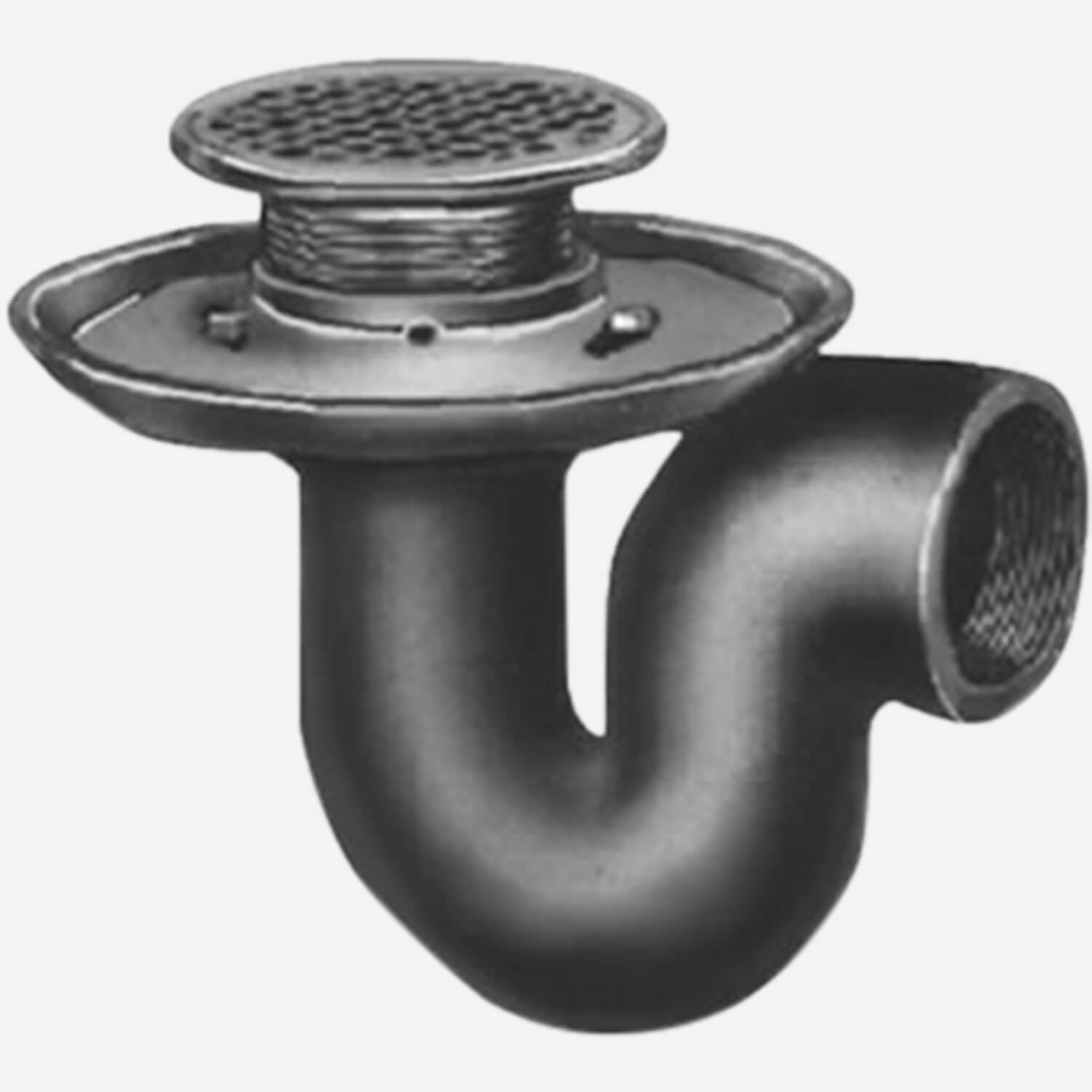

2030T | Deep Trap - Threaded Outlet
2031S | Deep Trap - Spigot Outlet

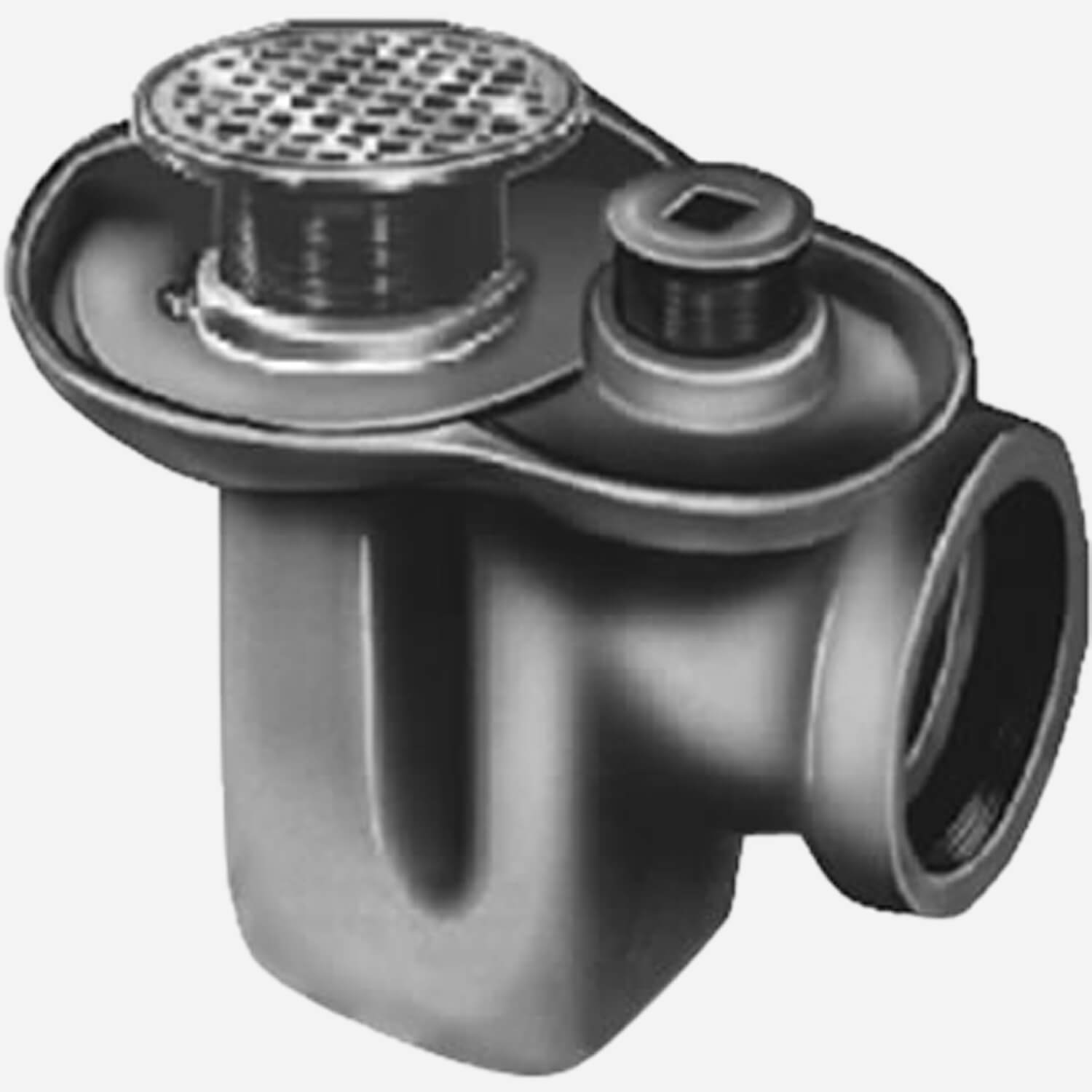

2040T | Deep Trap with Floor Cleanout - Threaded Outlet
2041S | Deep Trap with Floor Cleanout - Threaded Outlet

OPTIONAL STRAINER HEADS
Suffix A | Round Strain
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS | Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
