Figure Number: 1906
Contact a Representative

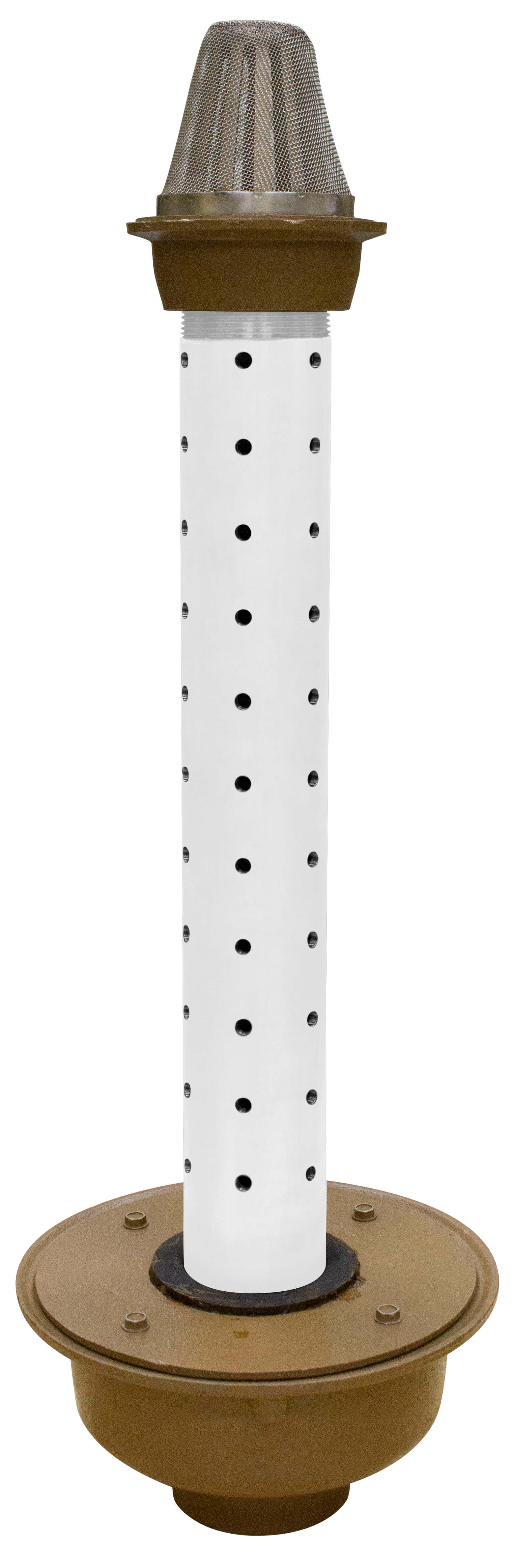

1906Roof Top Planting Area Drain

Engineered for installation in growing medium on green roof systems, a 6" diam. stainless steel mesh covered receptacle collects drainage at ground level atop a sturdy 3" diam. perforated PVC standpipe. The standpipe channels drainage to a 12" diameter corrosion resistant, Duco coated cast iron drain installed in roof decking while extracting excess moisture from the surrounding growing medium ensuring optimal growing conditions for rooftop plantings.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, Solid Standpipe -SP, Roof Deck Plate -RDP, Seepage Holes -WSH
  • Optional Materials
    Galvanized Cast Iron -G, Cast Iron Standpipe -CIS
  • Product Type
    Roof Drain
SubmittalSubmittal 1906 Roof Drain (pdf)
View
Technical Drawings
1906 Roof Drain (dwg)Roof Top Planting Area DrainDWG405 KB
1906 Roof Drain (rfa)Roof Top Planting Area DrainRFA580 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Green Roof and Cool Roof Drains Brochure (pdf)Brochure Green Roof and Cool Roof DrainsPDF2 MB
1906 Roof Drain (hi res)Roof Top Planting Area DrainJPG325 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

1906C | Caulk Bottom Outlet
1906T | Threaded Bottom Outlet
1906Y | No-Hub Bottom Outlet
