Figure Number: 1416
Contact a Representative

1416Heavy Duty Roof Drains for Parking Area

Topped with a tough 15-1/4" (390) diam. tractor grate, this corrosion resistant Duco coated cast iron roof drain will clear large wastewater volumes from parking decks and other heavy traffic areas fast. This heavy duty roof drain was specifically designed to accomodate roof construction that requires a shallow drain body and area where wastewater is free of debris.

Suffixes available:

  • -E  |  with (Vertical) Extension
  • -DEP  |  with Top Mount Deck Extentsion Plate

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Grate -D, L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Square Top -S, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof -U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
  • Optional Materials
    Nickel Bronze - Heel Proof -NBHP, Polished Bronze - Heel Proof -PBHP, Ductile Iron Grate - M, Galvanized Cast Iron -G, Galvanized Cast Iron Dome -CIDG, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Roof Drain
SubmittalSubmittal 1416 Roof Drain (pdf)
View
Technical Drawings
1416 Roof Drain [dwg]Heavy-Duty Roof Drain for Parking Area [1416C | Caulk Bottom Outlet; 1416T | Threaded Bottom Outlet; 1416Y | No-Hub Bottom Outlet] DWG45 KB
Literature / Videos
Submittal 1416-E Roof Drain (pdf)Heavy Duty Roof Drains for Parking Area with Extension [1416C-E | Caulk Bottom Outlet; 1416T-E | Threaded Bottom Outlet, 1416Y-E | No-Hub Bottom Outlet]PDF476 KB
Submittal 1416-DEP Roof Drain (pdf)Heavy-Duty Roof Drain for Parking Area -Duco Cast Iron Body, Flashing Collar and Heavy Duty Loose Set ADA Tractor Grate with Top Mount Deck Extension Plate [1416C-DEP | Caulk Outlet; 1416T-DEP | Threaded Outlet; 1416Y-DEP | No-Hub Outlet] PDF488 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

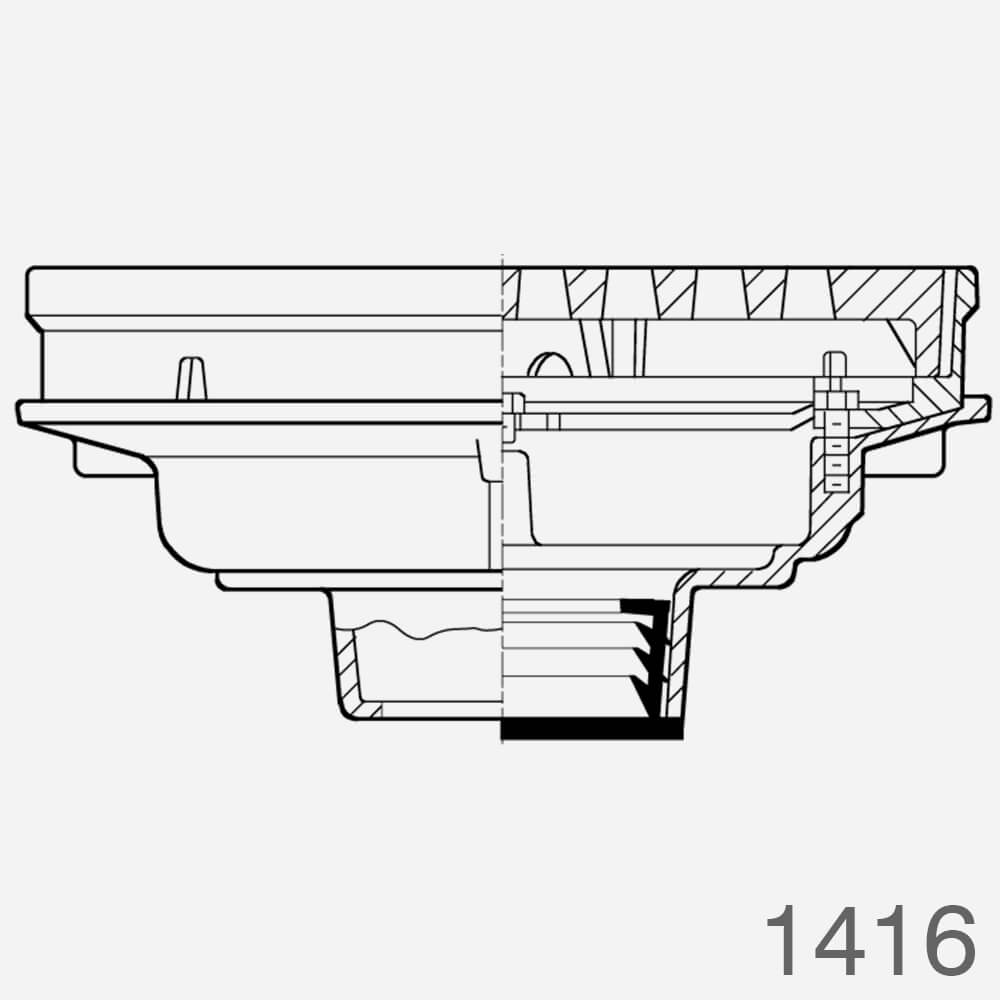

1416 - Standard

1416C | Caulked Bottom Outlet
1416T | Threaded Bottom Outlet
1416Y | No-Hub Bottom Outlet
[submittal]

1416-DEP With Deck Ext Plate

With Deck Ext. Plate
1416C-DEP | Caulked Bottom Outlet
1416T-DEP | Threaded Bottom Outlet
1416Y-DEP | No-Hub Bottom Outlet
[submittal]

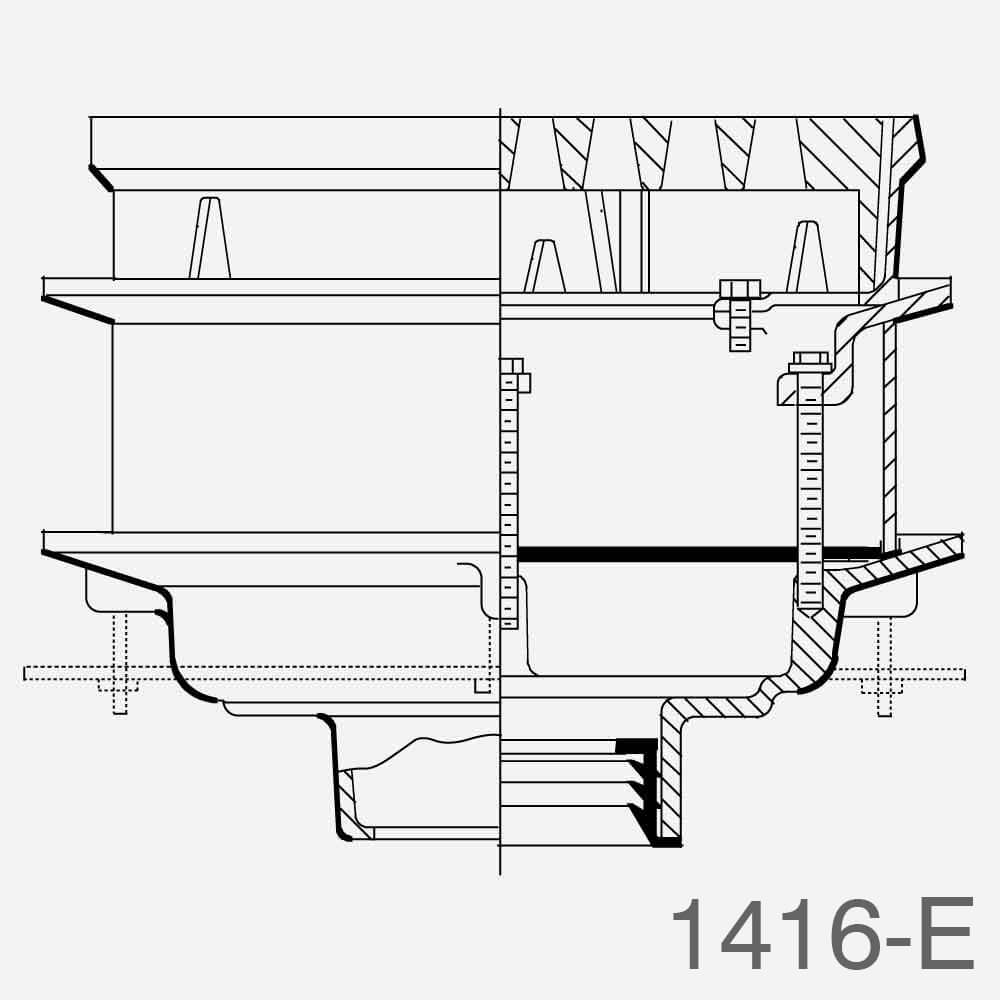

1416-E

With (Vertical) Extension
1416C-E | Caulked Bottom Outlet
1416T-E | Threaded Bottom Outlet
1416Y-E | No-Hub Bottom Outlet
[submittal]
