Figure Number: 1410
Contact a Representative

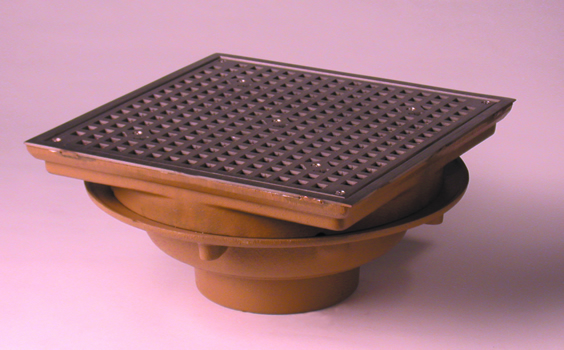

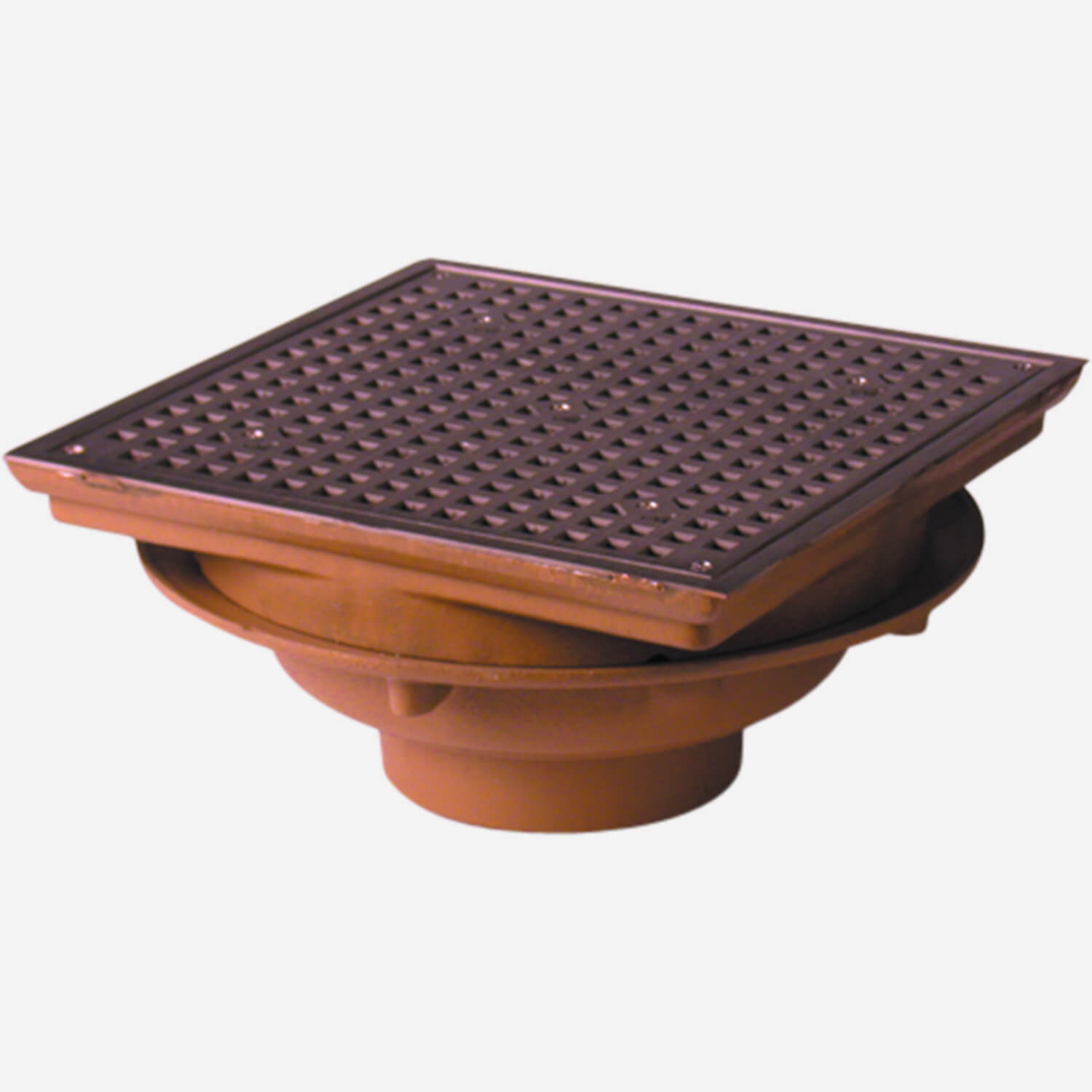

141014" Promenade Deck Drain

Our 14" (355) sq. Deck Drain is designed for installation on roof top recreational and parking decks built using all types of roof construction methods. It is fitted with a combined flashing collar and clamp that securely grips waterproofing materials without puncturing for a leakproof bond. Constructed of Duco coated cast iron and protected by a heavy duty grate, it is engineered to withstand many years of tough traffic.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1410 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only(Fig. 1410 Only), NO-HUB Adaptor - Fig. 1420 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Heel Proof -HP, Roof Deck Plate -RDP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Roof Drain
SubmittalSubmittal 1410, 1420 Drain (pdf)
View
Technical Drawings
1420 Roof Drain CAD DrawingLarge 14" Promenade Deck Drain - [1420 | Side Outlet; 1410 | Bottom Outlet]DWG146 KB
1412 Roof Drain CAD DrawingLarge 14" Heel-Proof Promenade Deck Drain with Heavy-Duty Finished Nickel Bronze Top, Bottom OutletDWG88 KB
1412-AE Roof Drain CAD DrawingLarge 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top and Adjustable ExtensionDWG376 KB
1425 Roof Drain CAD DrawingLarge 14" Promenade Deck Drain with Adjustable Top [1425T | Threaded Side Outlet; 1415C | Caulk Bottom Outlet; 1415Y | No-Hub Bottom Outlet; 1415T | Threaded Bottom Outlet]DWG138 KB
1410 Deck Drain CAD DrawingLarge 14" Promenade Deck Drain - Bottom OutletDWG168 KB
1415 Roof Drain (dwg)Large 14" Promenade Deck Drain with Adjustable Top [1415C | Caulk Bottom Outlet; 1415Y | No-Hub Bottom Outlet; 1415T | Threaded Bottom Outlet]DWG195 KB
1415 Drain (rfa)Large 14" Promenade Deck Drain with Adjustable Top [1415C | Caulk Bottom Outlet; 1415Y | No-Hub Bottom Outlet; 1415T | Threaded Bottom Outlet]RFA2 MB
1425 Drain (rfa)Large 14" Promenade Deck Drain with Adjustable Top [1425T | Threaded Side Outlet]RFA2 MB
1410 Deck Drain Revit DrawingLarge 14" Promenade Deck Drain - Bottom OutletRFA228 KB
1420 Deck Drain Revit DrawingLarge 14" Promenade Deck Drain, Square Top, Side OutletRFA808 KB
1412 Deck Drain Revit DrawingLarge 14" Heel-Proof Promenade Deck Drain with Heavy-Duty Finished Nickel Bronze Square Top. Bottom OutletRFA756 KB
Literature / Videos
Submittal 1412, 1422 Roof Drain (pdf)Large 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top [Bottom Outlet 1412C | Caulked; 1412Y | No-Hub; 1412T | Threaded; Side Outlet 1422C | Caulked; 1422T | Threaded]PDF380 KB
Submittal 1412-AE Roof Drain (pdf)Large 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top, Adjustable Extension, Bottom Outlet [1412C-AE | Caulked; 1412Y-AE | No-Hub; 1412T-AE | Threaded]PDF352 KB
Submittal 1415, 1425 Roof Drain (pdf)Large 14" Promenade Deck Drain with Adjustable Top [1415C | Caulk Bottom Outlet; 1415Y | No-Hub Bottom Outlet; 1415T | Threaded Bottom Outlet; 1425T | Threaded Side Outlet]PDF455 KB
Submittal 1410-DEP Drain (pdf)Promenade Deck Drain - Large 14" Deck Drain with Top-Mount Deck Extension Plate [1410C-DEP | Caulk Outlet; 1410Y-DEP | No-Hub Outlet; 1410T-DEP | Threaded Outlet]PDF550 KB
Submittal 1410-RDP Drain (pdf)Large 14" Promenade Deck Drain with Roof Deck Plate [Bottom Outlet 1410C-RDP | Caulked Bottom Outlet; 1410Y-RDP | No-Hub Bottom Outlet; 1410T-RDP | Threaded Bottom Outlet] PDF627 KB
Submittal 1412-DEP Drain (pdf)14" Heel-Proof Promenade Deck Drain with Bottom Outlet, Heavy Duty Nickel Bronze top and Deck Extension Plate [1412C-DEP | Caulk Outlet; 1412T-DEP | Threaded Outlet; 1412Y-DEP | No-Hub Outlet]PDF421 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
1410 - 14" Large Deck Drains (hi res jpg)JPG169 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

14" PROMENADE DECK DRAIN [submittal]

Figure 1410 Series
Bottom Outlet
1410C | Caulked
1410Y | No-Hub
1410T | Threaded

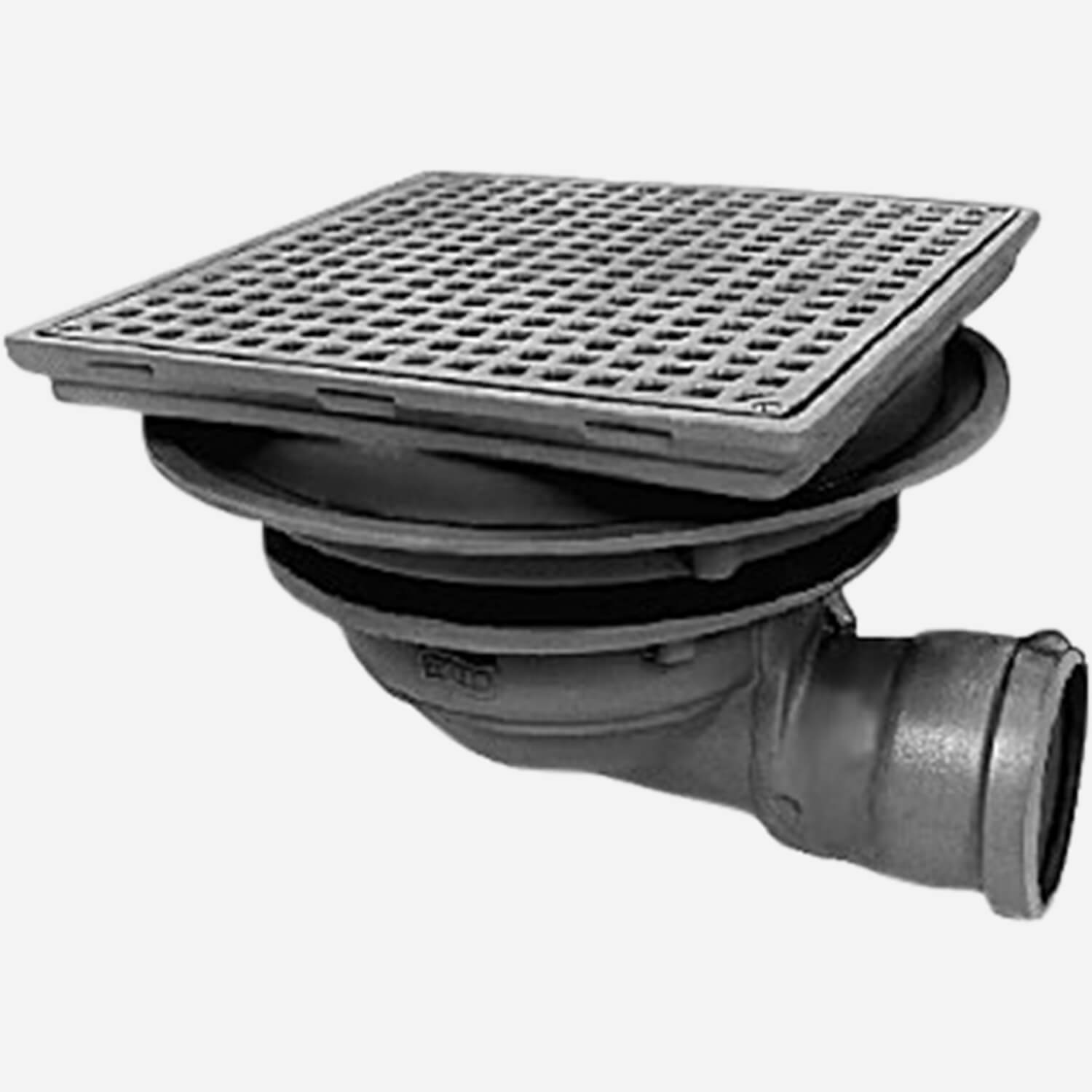

Figure 1420 Series
Side Outlet
1420C | Caulked
1420T | Threaded

14" PROMENADE DECK DRAIN WITH DECK EXTENSION PLATE [submittal]

Figure 1410-DEP Series
Bottom Outlet
1410C-DEP | Caulked
1410Y-DEP | No-Hub
1410T-DEP | Threaded

14" PROMENADE DECK DRAIN WITH ROOF DECK PLATE [submittal]

Figure 1410-RDP Series
Bottom Outlet
1410C-RDP | Caulked
1410Y-RDP | No-Hub
1410T-RDP | Threaded

14" HEEL-PROOF PROMENADE DECK DRAIN WITH HEAVY DUTY NICKEL BRONZE TOP [submittal]

Figure 1412 Series
Bottom Outlet
1412C | Caulked
1412Y | No-Hub
1412T | Threaded

Figure 1422 Series
Side Outlet
1422C | Caulked
1422T | Threaded

14" HEEL-PROOF PROMENADE DECK DRAIN WITH BOTTOM OUTLET, HEAVY DUTY NICKEL BRONZE TOP AND ADJUSTABLE EXTENSION SLEEVE [submittal]

Figure 1412-AE Series
Bottom Outlet
1412C-AE | Caulked
1412T-AE | Threaded
1412Y-AE | No-Hub

14" HEEL-PROOF PROMENADE DECK DRAIN WITH BOTTOM OUTLET, HEAVY DUTY NICKEL BRONZE TOP AND DECK EXTENSION PLATE [submittal]

Figure 1412-DEP Series
Bottom Outlet
1412C-DEP | Caulked
1412T-DEP | Threaded
1412Y-DEP | No-Hub


14" PROMENADE DECK DRAIN WITH ADJUSTABLE TOP [submittal]

Figure 1415 Series
Bottom Outlet
1415C | Caulked
1415T | Threaded
1415Y | No-Hub

Figure 1425
Side Outlet
1425T | Threaded
