Figure Number: 0834 Series

0834 SeriesFloor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler

Smith floor-mounted fixture supports are fabricated of tubular, epoxy-coated steel uprights welded to pre-drilled steel bases. The uprights are furnished with heavy-gauge backing plates with studs attached for securing typically two water coolers. The installer can specify stud dimensions.

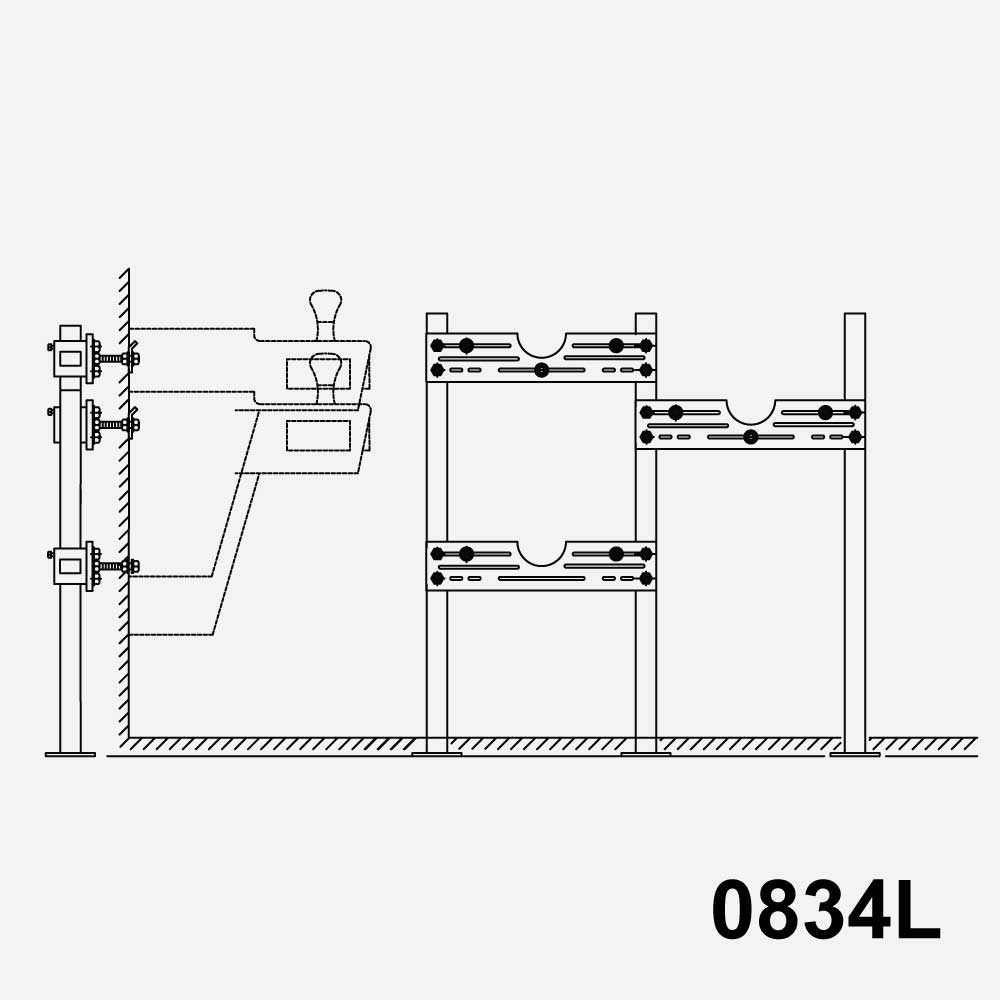

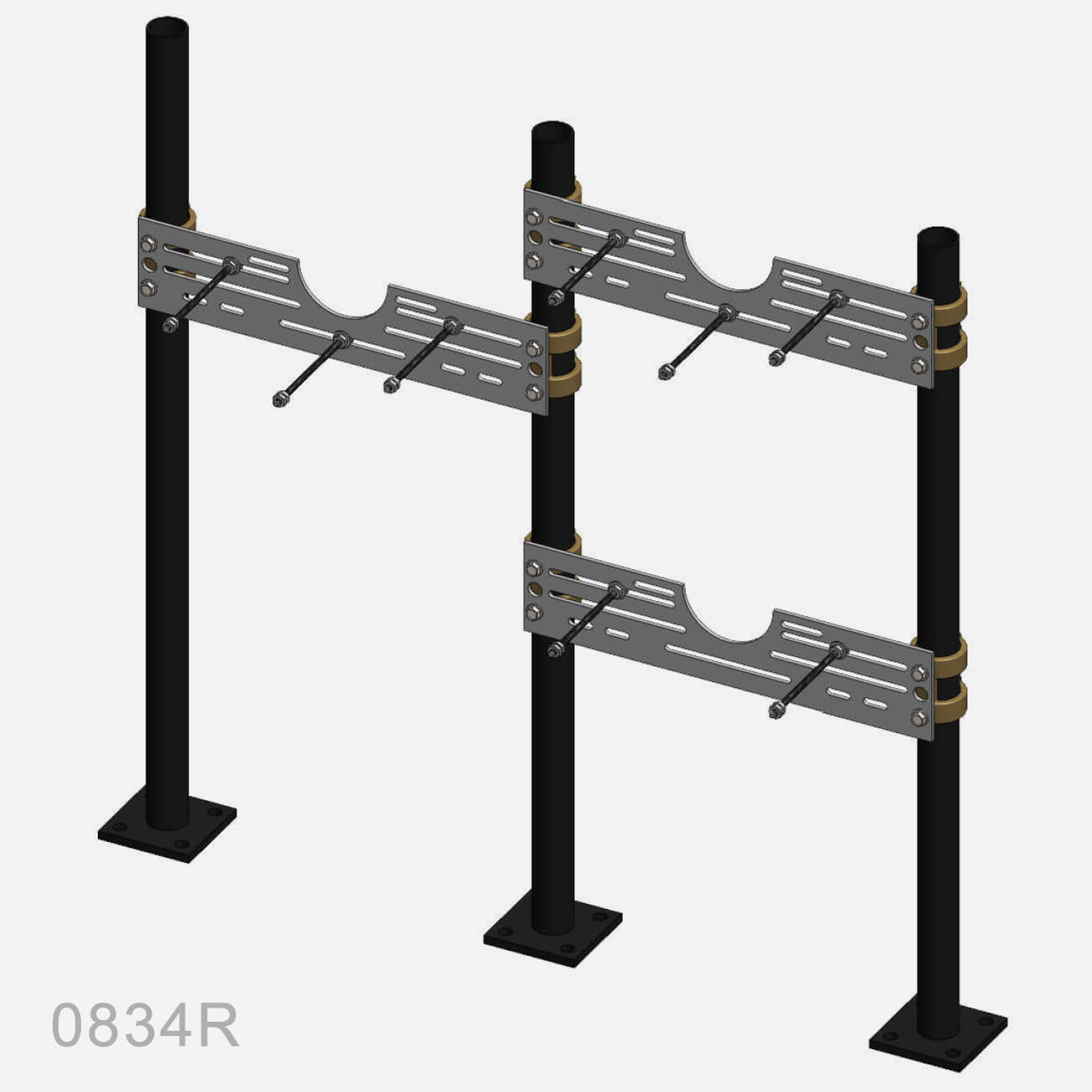

Specify Figures 0834L (left side high) or 0834R (right side high) for typical installation using 3 support plates.

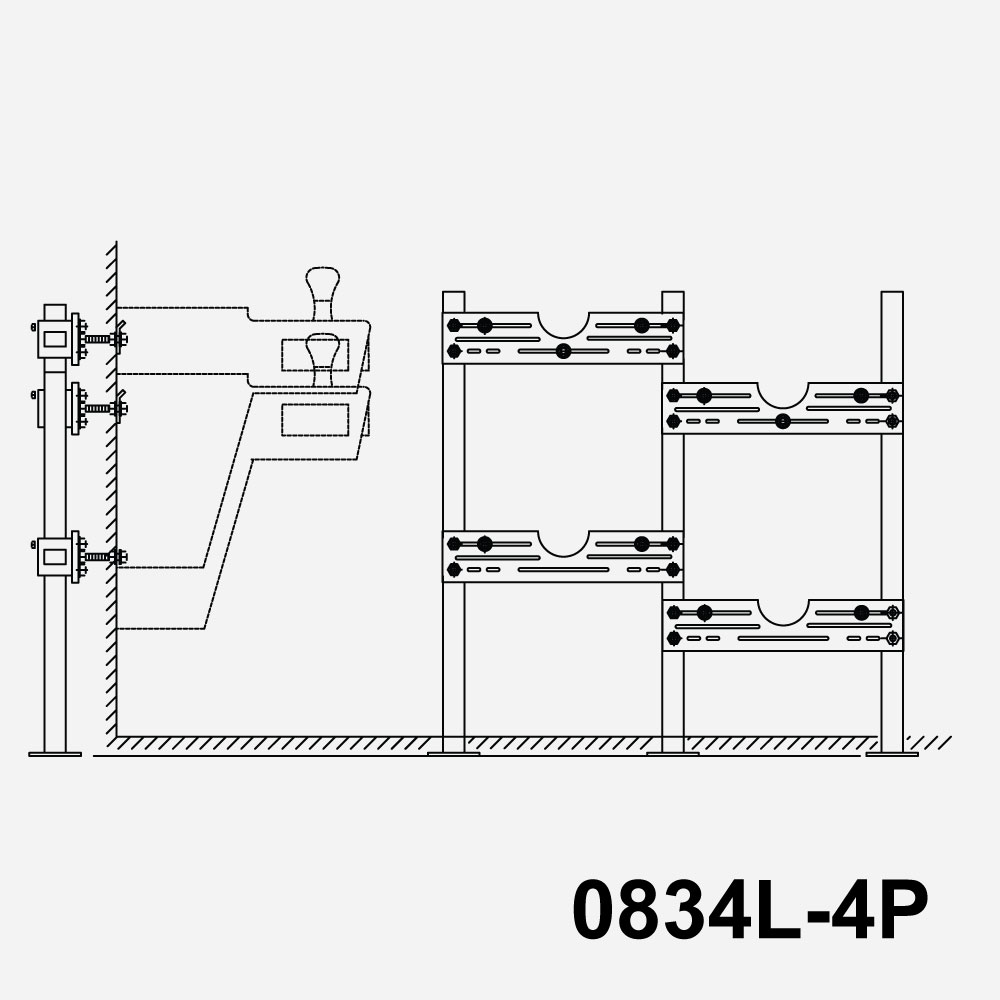

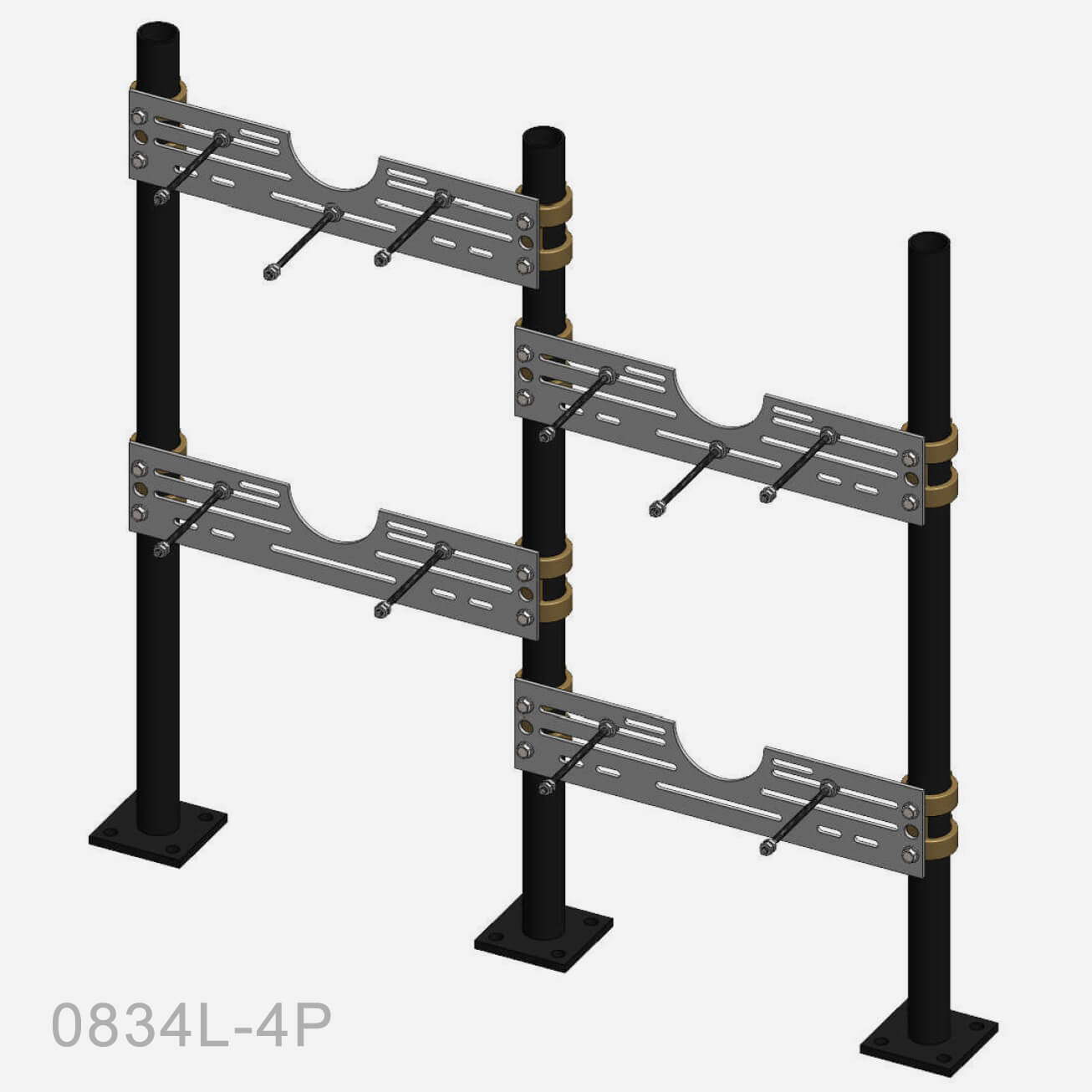

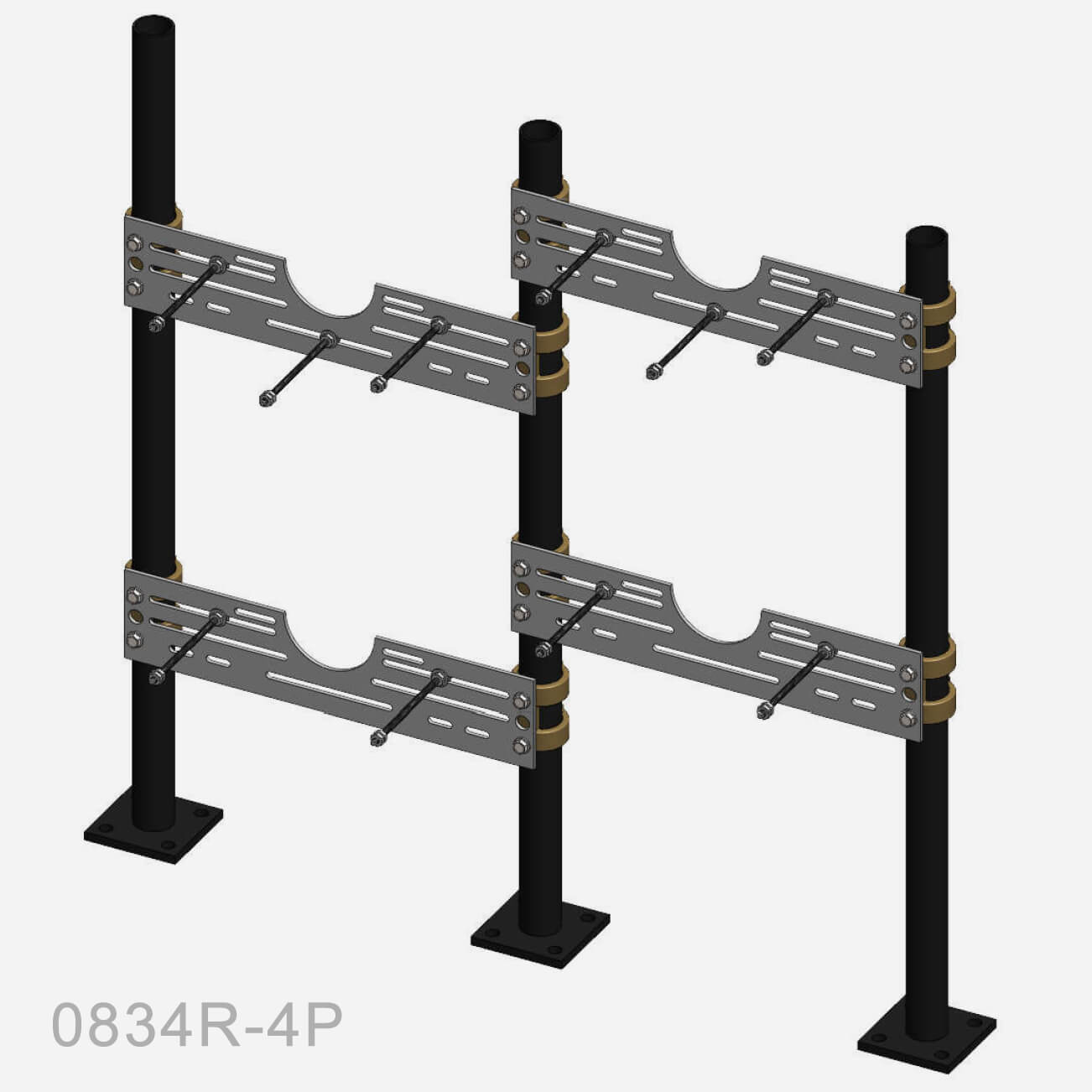

Specify Figures 0834L-4P (left side high) or 0834L-4P (right side high) for heavy-duty installation using 4 support plates.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
Technical Drawings
0834L Support CAD DrawingFloor Mounted Support for Bi-Level Wall Mounted Water Coolers including Support Plates and Studs [834L | 3 plates Left Side High]DWG92 KB
0834 Series Support Revit DrawingsFloor Mounted Support for Bi-Level Wall Mounted Water Coolers including Support Plates and Studs [834 | 3 plates; 0834L-4P | Heavy Duty Installation with 4 Plates,- Left Side High; 0834R-4P | Heavy Duty Installation with 4 Plates,- Righ Side High]ZIP3 MB
Literature / Videos
Submittal 0834L-4P SupportFloor Mounted Support for Bi-Level Wall Mounted Water Coolers including 4 Support Plates and Studs - Left Side High Heavy Duty InstallationPDF378 KB
Submittal 0834R-4P SupportFloor Mounted Support for Bi-Level Wall Mounted Water Coolers including 4 Support Plates and Studs - Right Side High Heavy Duty InstallationPDF381 KB
Submittal 0834-M32EZSTL8 Support (pdf)Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 3 Mounting Plates- Exclusive for Install on Elkay EZSTLDDLC, EZSTTLDDSC, EZSTLDDWSSK, EZSTLDDWSVRLK, EZSTLG8, EZSTL8 and others.PDF607 KB
Submittal 0834-M32EZSTL8-4 Support (pdf)Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 4 Mounting Plates- Exclusive for Install on Elkay EZSTLDDLC, EZSTTLDDSC, EZSTLDDWSSK, EZSTLDDWSVRLK, EZSTLG8, EZSTL8, EZSTL8C, EZOSTL8, EZSTL8LCand others.PDF644 KB
Submittal 0834-M32MURDOCK Support (pdf)Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 3 Mounting Plates- Exclusive for Install on Murdock A172108F-UG, A172108F-UG-SO, A172108F-UG-VR, A172108S-UG, A172108S-US-SO, A172108S-UG-VR, A172408F-UG and othersPDF465 KB
Submittal 0834-M32MURDOCK-4 Support (pdf)Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 4 Mounting Plates- Exclusive for Install on Murdock A172108F-UG, A172108F-UG-SO, A172108F-UG-VR, A172108S-UG, A172108S-US-SO, A172108S-UG-VR, A172408F-UG, and othersPDF479 KB
