Model 9960CB

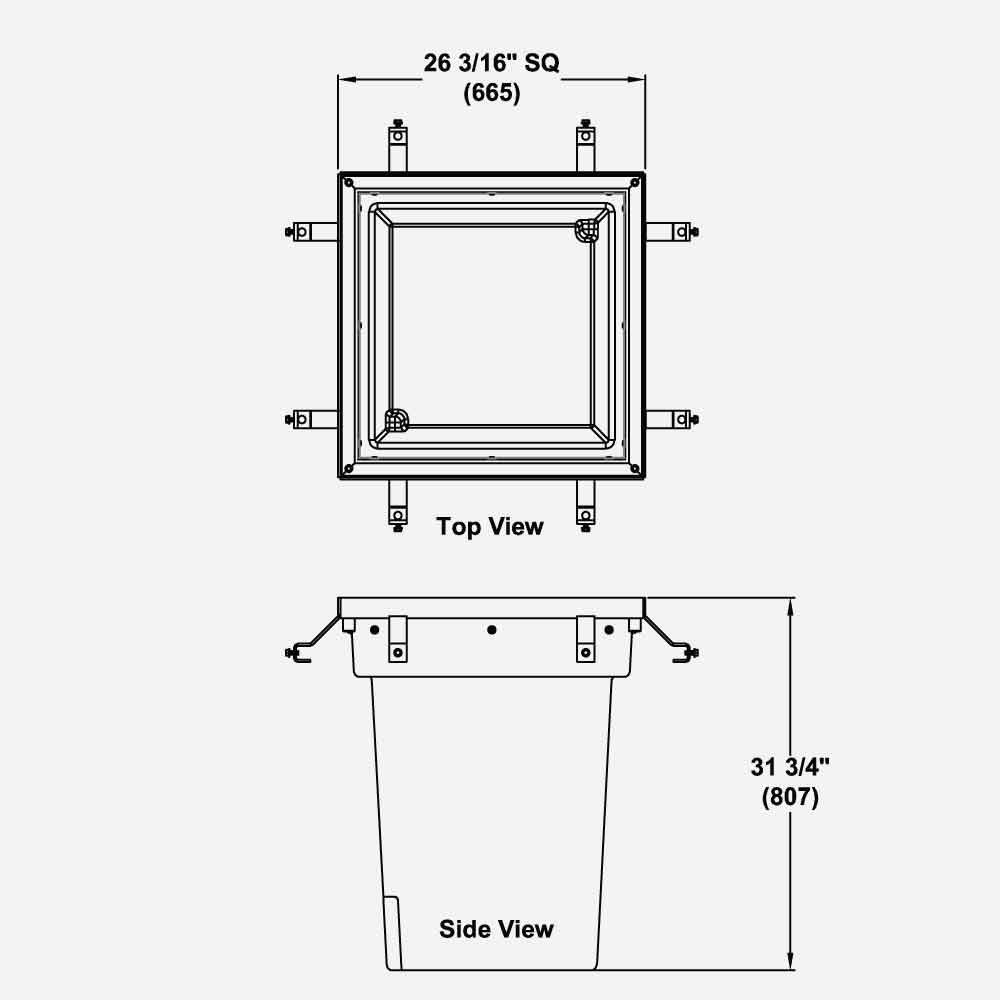

2' x 2' Polyethylene Catch Basin - Zip Trench®

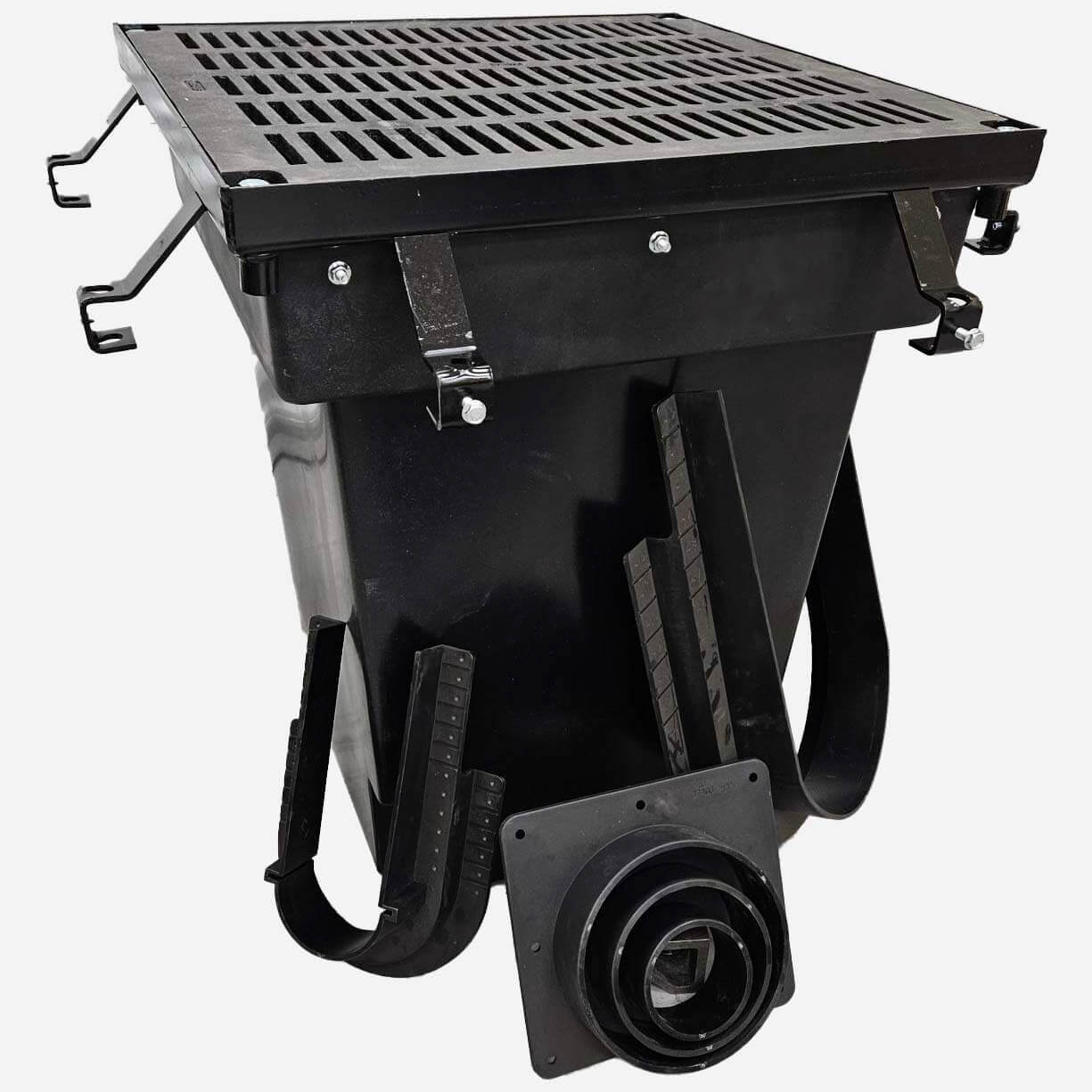

Polyethylene Catch Basin with Duco Coated Steel Frame with Integral Installation Brackets and Secured Specified Grate. The Catch Basin is configured to work with the 9960 Series 12" Wide or 9940 Series 6" Wide Polypropylene Trench Drain System - Zip Trench®
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® [Featured Grates 9960CB-MC | Ductile Iron Slotted Grate Load Class C; 9960CB-ME | Ductile Iron Slotted Grate Load Class E; 9960CB-ADAC | Ductile Iron ADA Grate Load Class C; 9960CB-ADAE | Ductile Iron ADA Grate Load Class E] | 0 | 2 MB |
Specifications

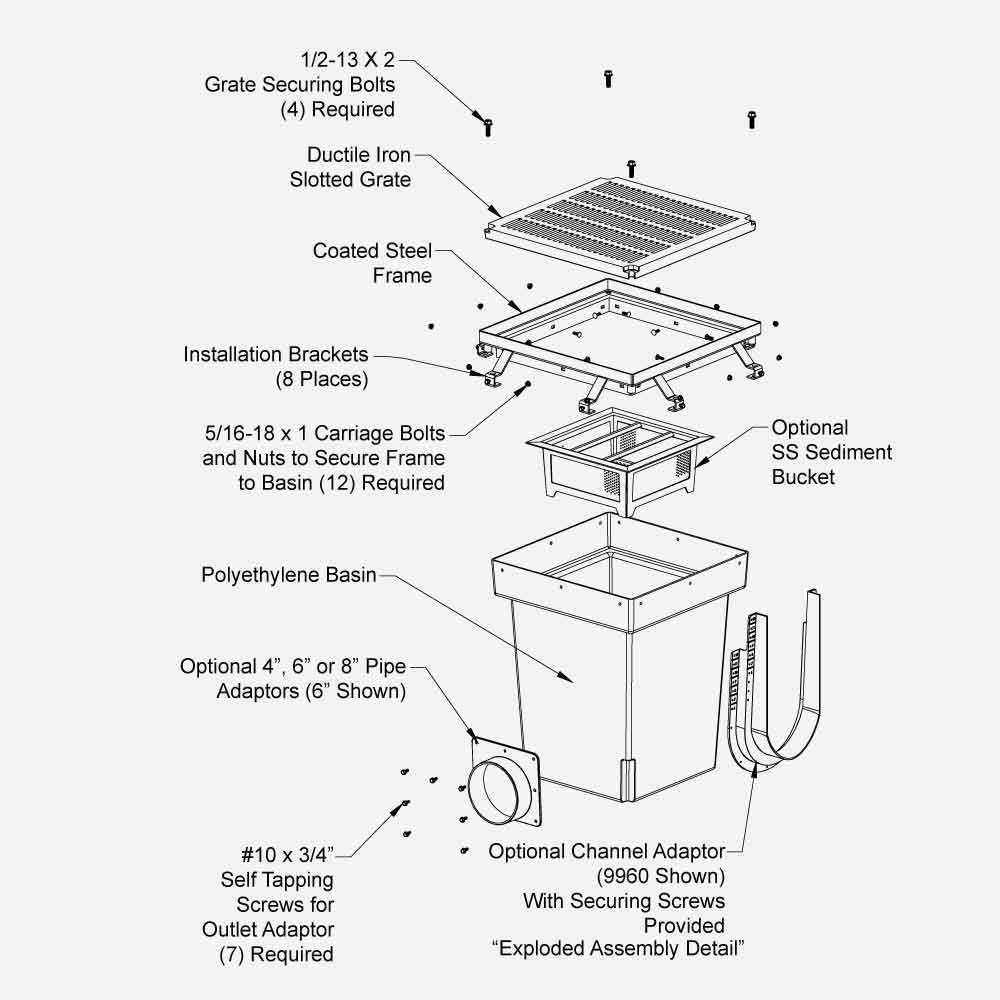

| Variations | Stainless Steel Sediment Bucket -BSS, 9940 Channel/Catch Basin Adaptor, 9960 Channel/Catch Basin Adaptor, 4" Schedule 40 Pipe Adaptor PE-PA4, 6" Schedule 40 Pipe Adaptor PE-PA6, 8" Schedule 40 Pipe Adaptor PE-PA8 |
| Optional Materials | Type 304 Stainless Steel, Cold Spray Galvanized Steel |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 9660CB-ADAC | 25-11/16" Square Iron ADA Grate for Zip Trench® Catch Basin - Load Class C | ||
 | 9660CB-ADAE | 25-11/16" Square Iron ADA Grate for Zip Trench® Catch Basin - Load Class E | ||
 | 9960CB-MC | 25-11/16" Square Iron Grate for Zip Trench® Catch Basin - Load Class C | ||
 | 9960CB-ME | 25-11/16" Square Iron Grate for Zip Trench® Catch Basin - Load Class E |
Models
Typical models are shown below

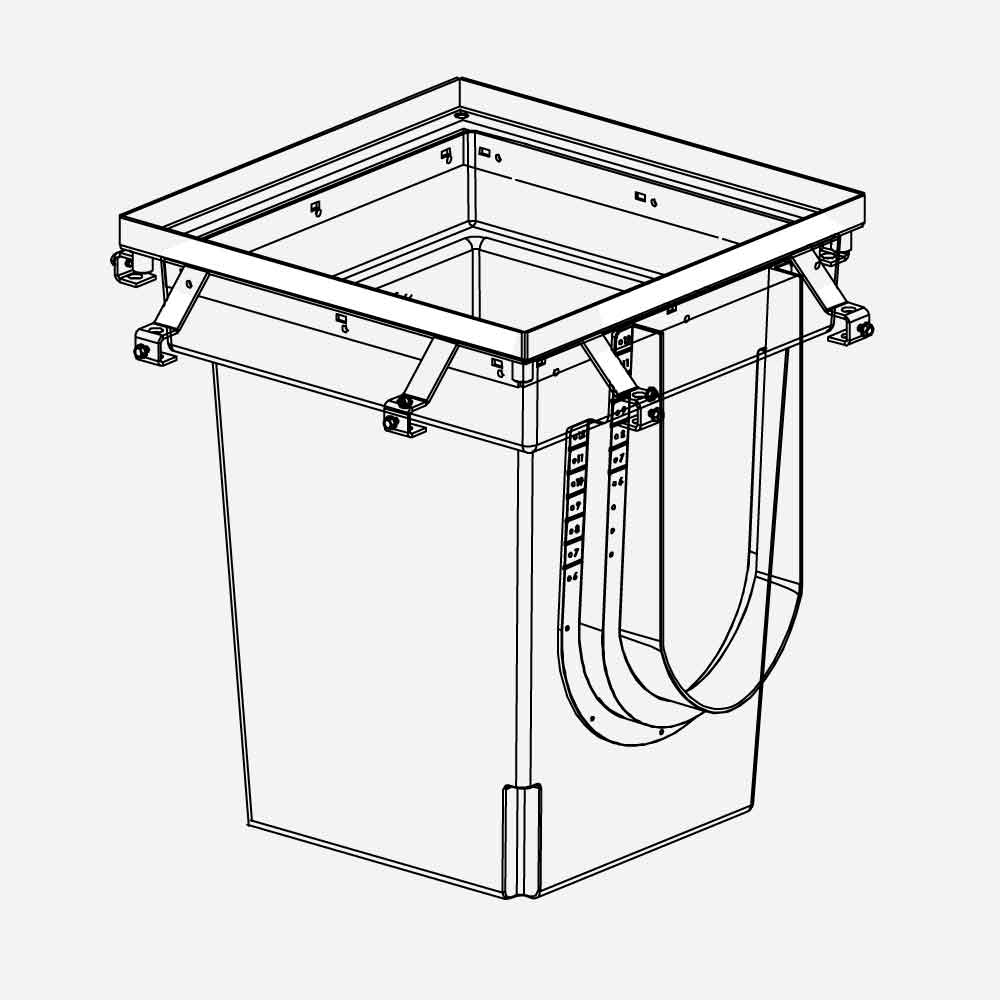

Shown with Adaptor for
Figure 9960
12-Inch Wide Zip Trench®

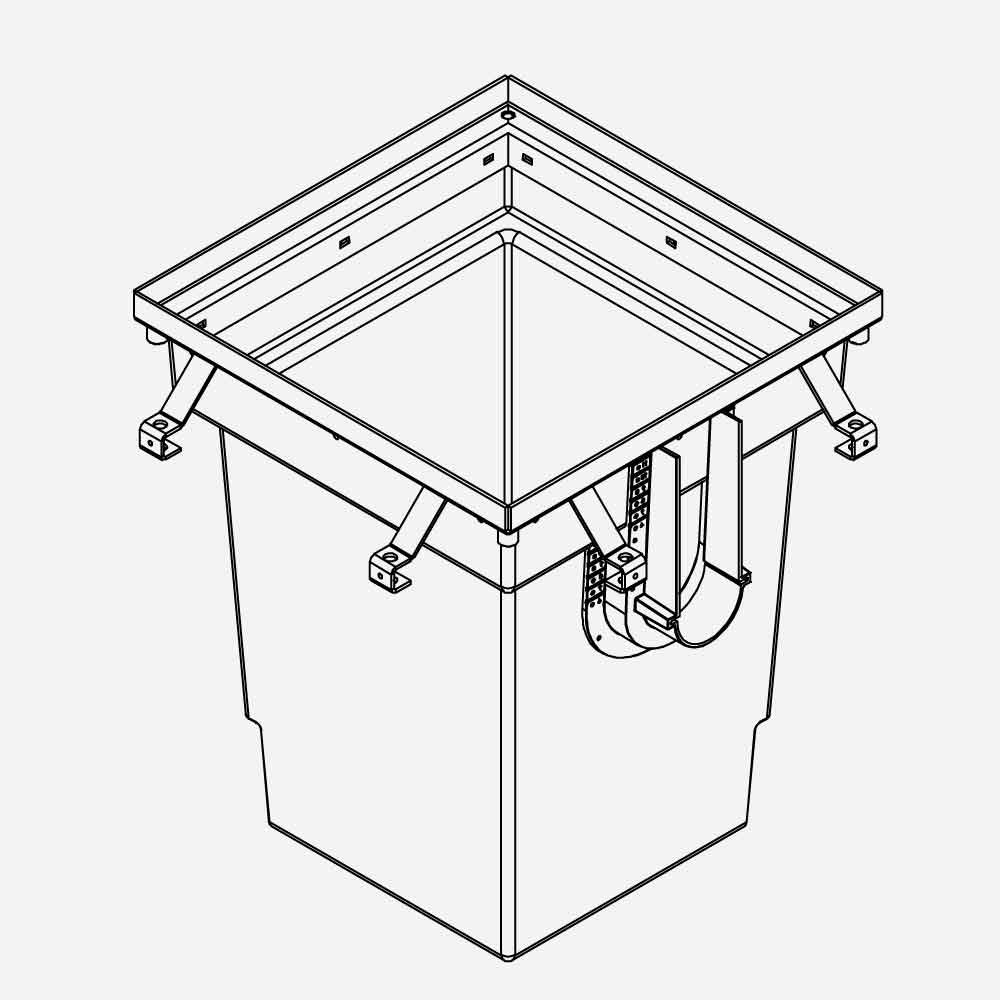

Shown with Adaptor
Figure 9940
6-Inch Wide Zip Trench®
