Figure Number: 3450

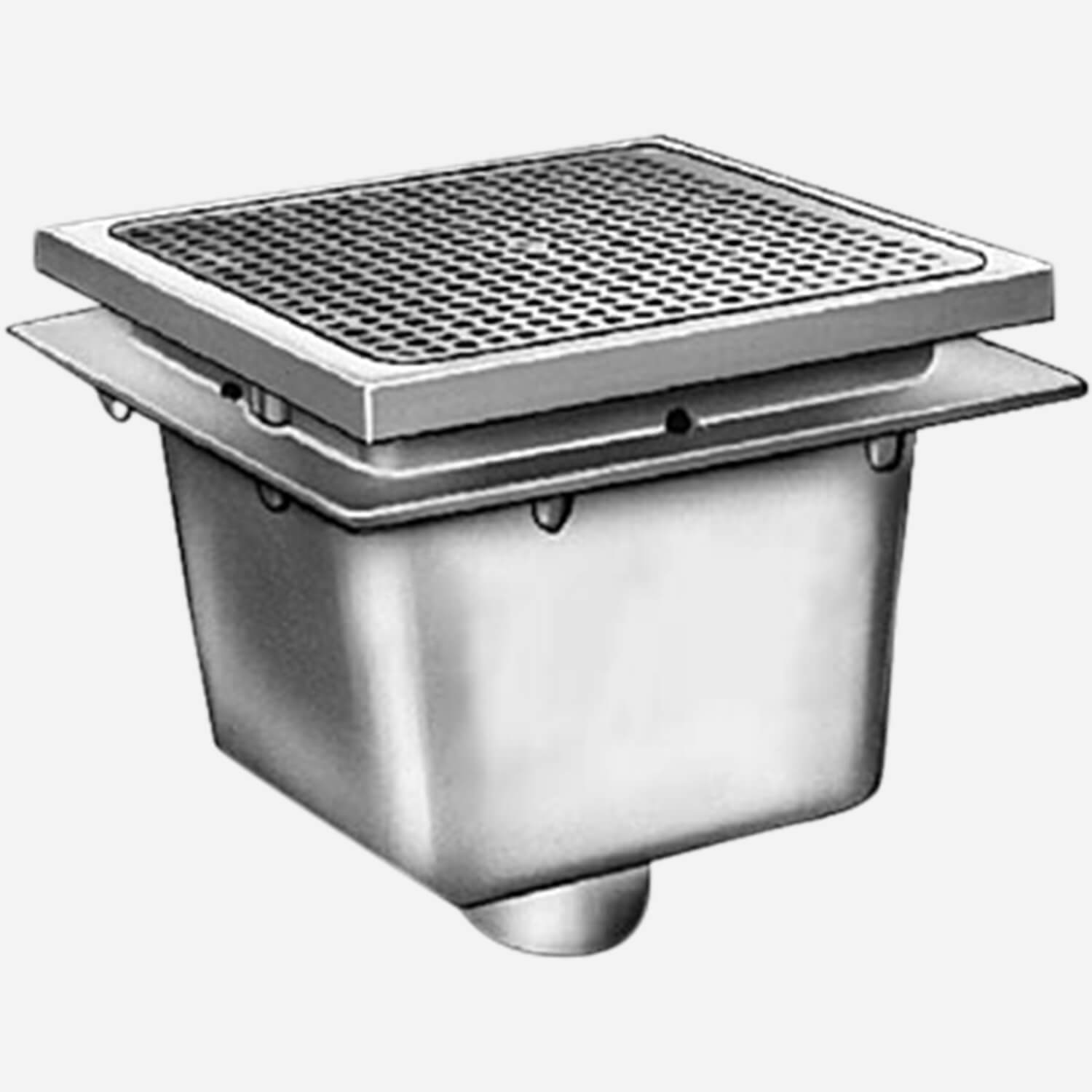

3450Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Square Non-Traffic Top

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 16” square Sani-Ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The extra deep 12” (255). capacity drain body has an integral flange which can accept an optional flashing clamp permitting it to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer or sediment bucket to keep drain lines debris free.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3455, 3456), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
Technical Drawings
3450, 3451 Drain CAD DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 16" Square Top - 12" Depth Receptor [With Dome Bottom Strainer 3450C | Caulk Outlet; 3450Y | No-Hub Outlet; With Sediment Bucket 3451C | Caulk Outlet; 3451Y | No-Hub Outlet]DWG105 KB
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch
With Dome Bottom Strainer
3450C | Caulk Outlet
3450Y | No-Hub Outlet

With Sediment Bucket
3451C | Caulk Outlet
3451Y | No-Hub Outlet
