Figure Number: 3410

3410Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Medium Receptor and ARC Square Non-Traffic Top

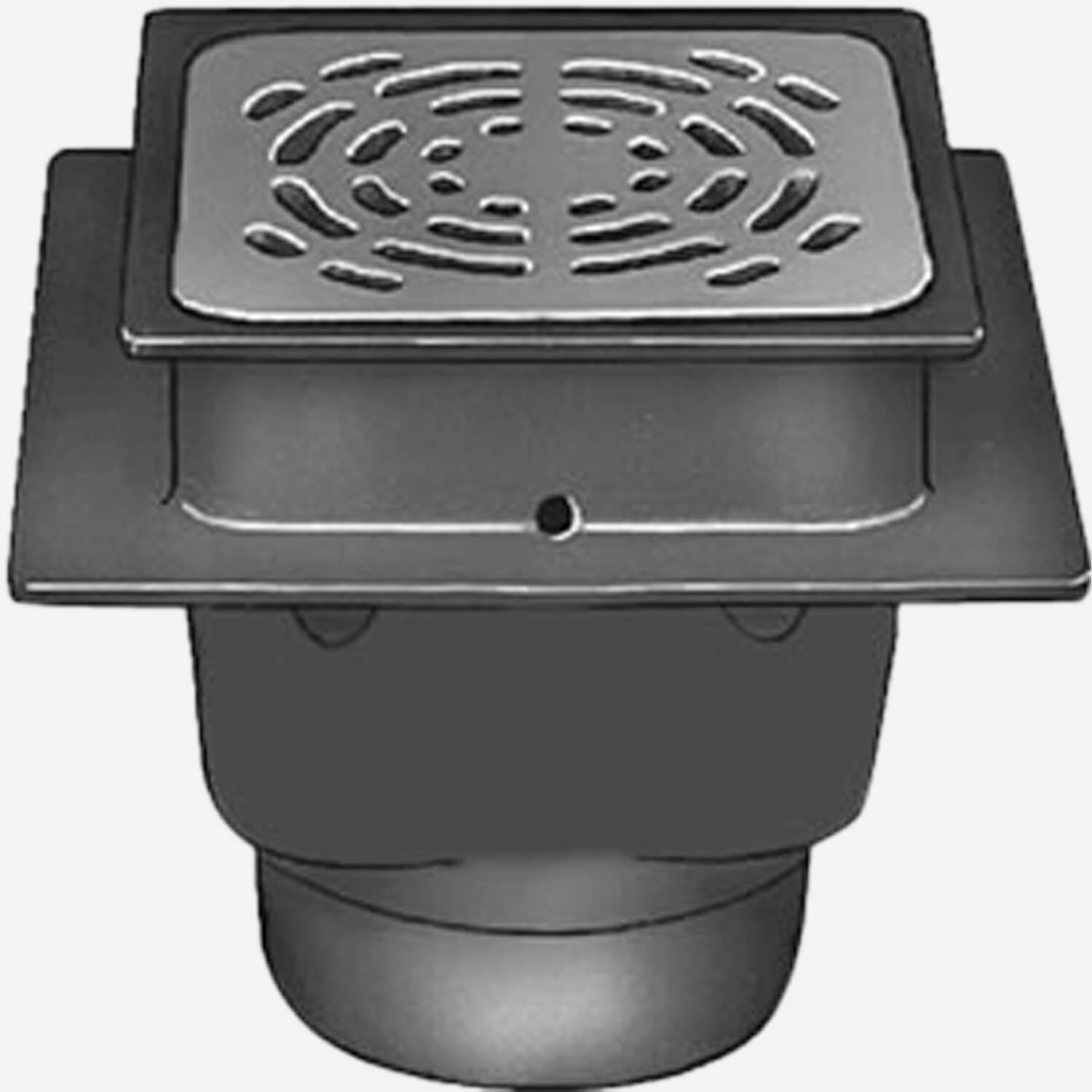

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 8” square Sani-Ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The 6” deep, medium capacity drain body is has an integral flange which accepts an optional flashing clamp permitting it to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer (fig. 3410) or white ABS sediment bucket (fig. 3411) that keep drain lines debris free.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3415, 3416), Polished Aluminum Dome Bottom Strainer -PDBS, L Speedi-Set® Service Weight, LXH Speedi-Set® Extra Heavy, (2) 3/8” (10) Tappings -TAP, Drain Installation Device -DID
  • Optional Materials
    All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
Technical Drawings
3410, 3411 Drain CAD DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 8" Square Top - Medium Depth Receptor [With Dome Bottom Strainer 3410C | Caulk Outlet; 3410Y | No-Hub Outlet; With Sediment Bucket 3411C | Caulk Outlet; 3411Y | No-Hub Outlet]DWG91 KB
3413, 3414 Drain CAD DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 8" Round Top - Medium Depth Receptor [With Dome Bottom Strainer 3413C | Caulk Outlet; 3413Y | No-Hub Outlet; With Sediment Bucket 3414C | Caulk Outlet; 3414Y | No-Hub Outlet] DWG272 KB
3410 Drain Revit DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 8" Square Top - Medium Depth Receptor [With Dome Bottom Strainer 3410C | Caulk Outlet; 3410Y | No-Hub Outlet; With Sediment Bucket 3411C | Caulk Outlet; 3411Y | No-Hub Outlet]RFA232 KB
Literature / Videos
Submittal 3413, 3414 Drain (pdf)Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 8" Round Top - Medium Depth Receptor [With Dome Bottom Strainer 3413C | Caulk Outlet; 3413Y | No-Hub Outlet; With Sediment Bucket 3414C | Caulk Outlet; 3414Y | No-Hub Outlet]PDF569 KB
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

Sani-Ceptor® Acid-Resistant Coated Floor and Indirect Waste Drains - Non-Traffic Tops - Medium Depth Receptor

8" Square Top [submittal]
With Dome Bottom Strainer
3410C | Caulk Outlet
3410Y | No-Hub Outlet

With Sediment Bucket
3411C | Caulk Outlet
3411Y | No-Hub Outlet

8" Round Top [submittal]
With Dome Bottom Strainer
3413C | Caulk Outlet
3413Y | No-Hub Outlet

With Sediment Bucket
3414C | Caulk Outlet
3414Y | No-Hub Outlet


Optional Top Grates and Covers for Indirect Waste Applications
Suffix -10 | Less Acid-Resisting Coating Grate
Suffix -12 | With A.R.C. 1/2 Grate
Suffix -13 | With A.R.C. 3/4 Grate
Suffix -14 | With A.R.C. Grate with 2 1/2" (64) DIA Center Hole
Suffix -15 | With Nickel Bronze Rim and Aluminum Recessed Grate
Suffix -21 | With A.R.C. Grate and 4" (100) DIA A.R.C. Funnel
Suffix -22 | With A.R.C. Grate and 6" (150) DIA A.R.C. Funnel
Suffix -25 | With A.R.C. Grate and 8 1/4(210) x 3 1/4(83) x 4 1/2"(115) High Oval A.R.C. Funnel
Suffix -26 | With A.R.C. Grate and 6(150) x 2 1/2(64) x 1"(25) High Oval A.R.C. Funnel
Suffix -41 | With A.R.C. Solid Cover
Suffix -42 | With A.R.C. 1/2 Solid Cover
Suffix -44 | With A.R.C. Solid Cover with 2 1/2" (64) DIA Center Hole

-DID Variation:
FormIt® Drain Installation Device for 8" and 8-1/2" Top Size Floor Sinks, see Submittal 3038-DID
