Figure Number: 3402

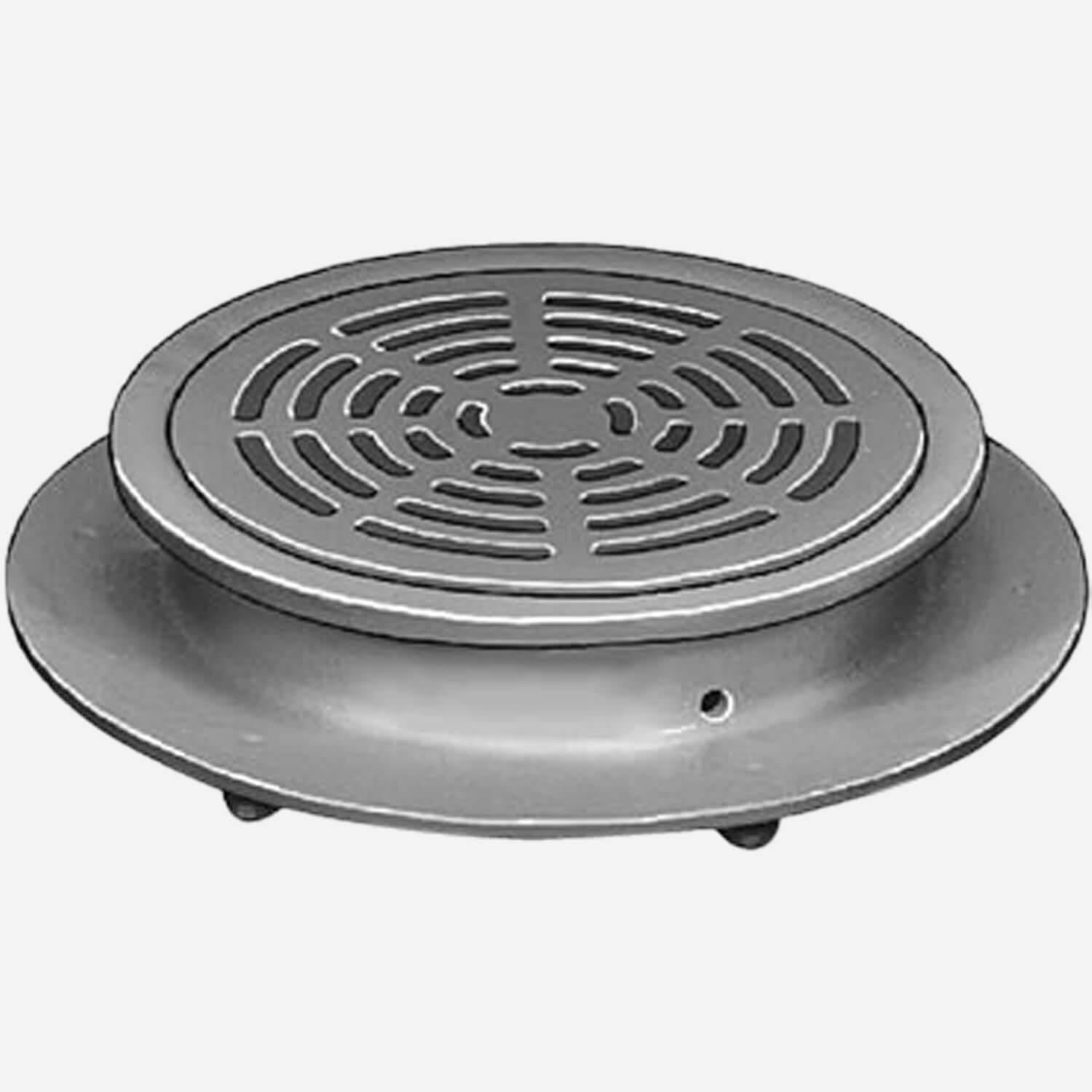

3402Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Shallow Receptor and ARC Round Non-Traffic Top

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 12” diam. Sani-ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The shallow, medium capacity drain body is has an integral flange which accepts an optional flashing clamp permitting it to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer (fig. 3402) or sediment bucket (fig. 3412) that keep drain lines debris free.

Smaller Diameter 8" is also available. Dome bottom strainer (fig 3403) or sediment bucket (fig 3404).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3407, 3417), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
Technical Drawings
3402, 3412 Drain (dwg)Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic Tops - 12" Round Top - Shallow Receptor [With Dome Bottom Strainer 3402C | Caulk Outlet; 3402Y | No-Hub Outlet; With Sediment Bucket 3412C | Caulk Outlet; 3412Y | No-Hub Outlet]DWG101 KB
Literature / Videos
Submittal 3403, 3404 Sanitary Drain (pdf)Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain - 8" Round Top - Shallow Receptor [With Dome Bottom Strainer 3403C | Caulk Outlet; 3403Y | No-Hub Outlet; With Sediment Bucket 3404C | Caulk Outlet; 3404Y | No-Hub Outlet]PDF521 KB
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch
12" Diameter Round Top. Dome Bottom Strainer
3402C | Caulk Outlet
3402Y | No-Hub Outlet;

12" Diameter Round Top, Sediment Bucket
3412C | Caulk Outlet
3412Y | No-Hub Outlet

8" Diameter Round Top. Dome Bottom Strainer
3403C | Caulk Outlet
3403Y | No-Hub Outlet;

8" Diameter Round Top, Sediment Bucket
3404C | Caulk Outlet
3404Y | No-Hub Outlet
