Figure Number: 0230Y-M54-XX
Contact a Representative

0230Y-M54-XXVertical Fittings Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closets

Contractor labor saving, adjustable fixture support for bariatric duty siphon jet water closets featuring no-hub vertical fittings. When installed correctly it is able to support 750 lbs.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Water Closet Support
SubmittalSubmittal 0230Y-M54-XX WC Support (pdf)
View
Technical Drawings

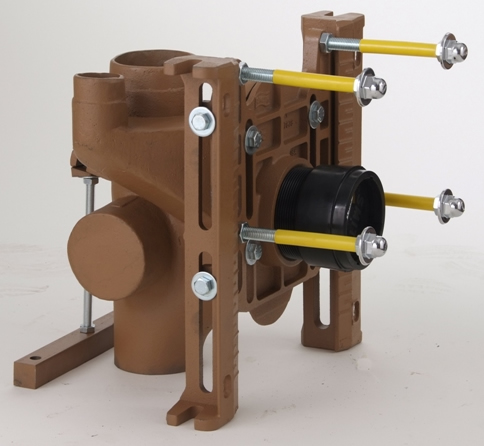

0230Y-M54-XX WC Support (dwg)Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings - Extra Heavy Duty (Rated 750 lbs) with Face Plate, Side Mounted Base Support Assembly [0230Y-M54-XX | Single-Sided; 0230DY-M54-XX | Double-Sided (back-to-back]DWG243 KB

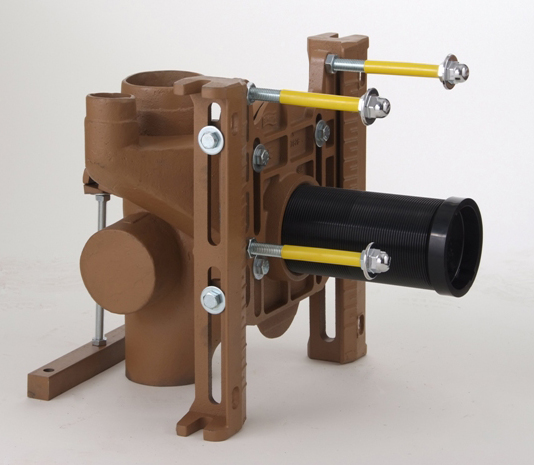

0230Y-M58-M54-XX WC Support (dwg)Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings - Extra Heavy Duty (Rated 750 lbs) Face Plate, Side-Mounted Base Support Assembly, Adjustable Nipple and O-Ring [0230Y-M58-M54; 0230DY-M58-M54]DWG260 KB
Literature / Videos
Submittal 0230Y-M58-M54-XX WC Support (pdf)Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings - Extra Heavy Duty (Rated 750 lbs) Face Plate, Side-Mounted Base Support Assembly, Adjustable Nipple and O-Ring [0230Y-M58-M54; 0230DY-M58-M54]PDF288 KB
Technical Data for Water Closet Supports (pdf)Technical Data for Water Closet SupportsPDF3 MB
Article: Water Closet SupportsArticle: Water Closet SupportsPDF2 MB
Article: Bariatric Water Closet SupportsArticle: Bariatric Water Closet SupportsPDF324 KB
Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsArticle: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsPDF419 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
0230Y-M54-XX WC Support (hi res jpg)Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings - Extra Heavy Duty (Rated 750 lbs) with Face Plate, Side Mounted Base Support Assembly [0230Y-M54-XX | Single-Sided]JPG89 KB
0230Y-M58-M54-XX WC Support (hi res jpg)Adjustable Support for Siphon Jet Water Closets - Vertical Fittings - Extra Heavy Duty (Rated 750 lbs) with Face Plate, Side-Mounted Base Support Assembly, Adjustable Nipple and O-Ring [0230Y-M58-M54-XX | One-sided, No-Hub]JPG147 KB
Engineering Newsletter: Vol. 1, Issue 5 (May 2011)0200Y-M54-XX and 0200Y-M54-XK Series Bariatric Water Closet SupportsPDF2 MB
Parts Order Guide for Water Closet SupportsParts Order Guide for Water Closet SupportsPDF4 MB
Order Guidelines for Water Closet SupportsOrder Guidelines for Water Closet SupportsPDF169 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch

Adjustable Support for Siphon Jet Water Closets - Vertical Fittings - Extra Heavy Duty (Rated 750 lbs)

Suffix -M54

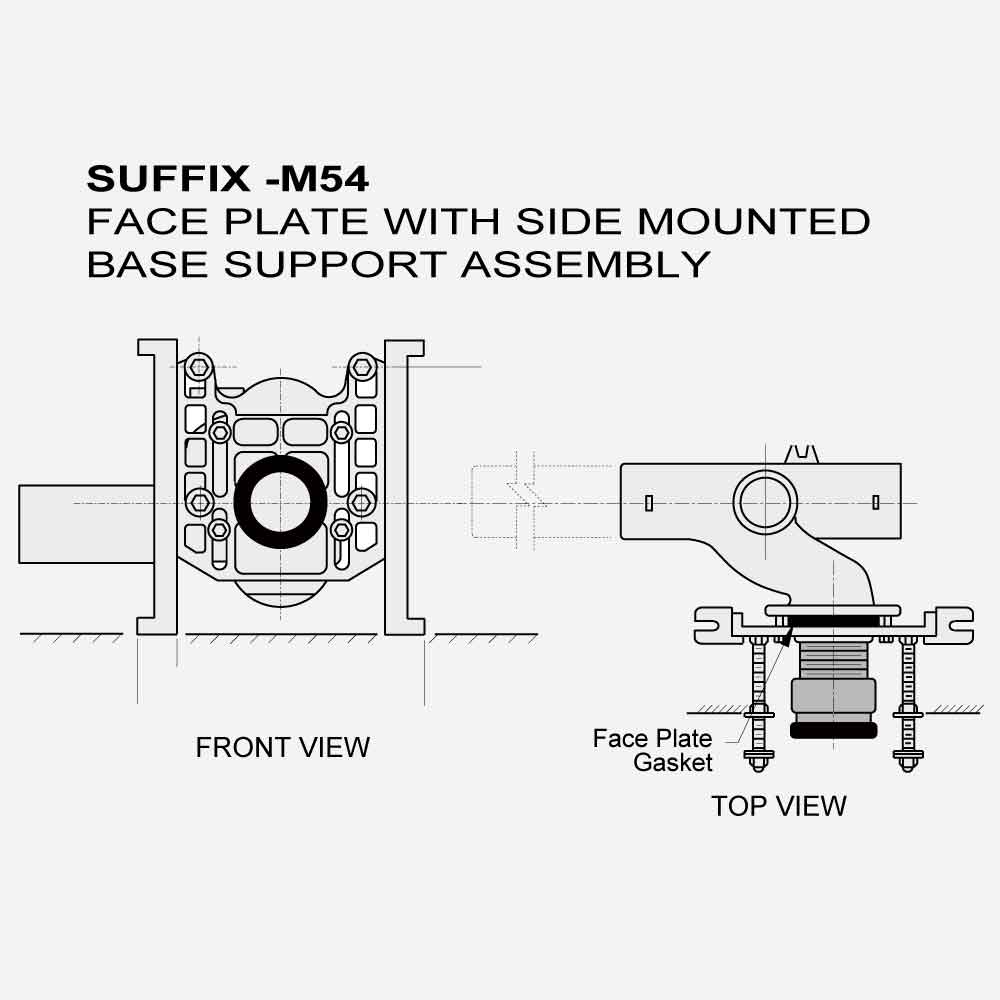

with Face Plate, Side Mounted Base Support Assembly submittal
0230Y-M54-XX | One-sided, No-Hub
0230DY-M54-XX | Double-sided (back-to-back), No-Hub

Suffix -M54

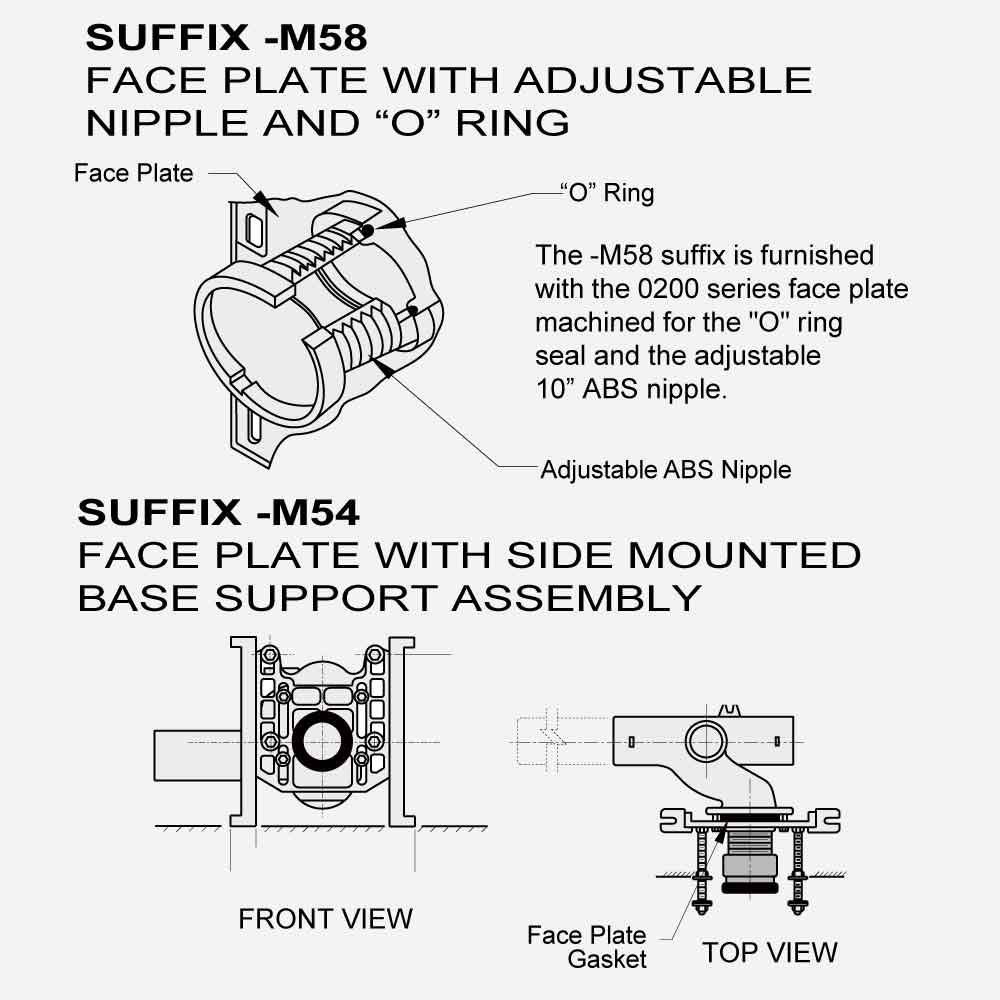

with Face Plate, Side-Mounted Base Support Assembly, Adjustable Nipple and O-Ring submittal
0230Y-M58-M54-XX | One-sided, No-Hub
0230DY-M58-M54-XX | Double-sided (back-to-back), No-Hub

with Face Plate, Side-Mounted Base Support Assembly, Adjustable Nipple and O-Ring submittal
0230-M58-M54-XX | One-sided, No-Hub, Spigot/Caulked Hub
0230D-M58-M54-XX | Double-sided (back-to-back), Spigot/Caulked Hub
