Figure Number: 0230Y-M54-XK
Contact a Representative

0230Y-M54-XKVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet

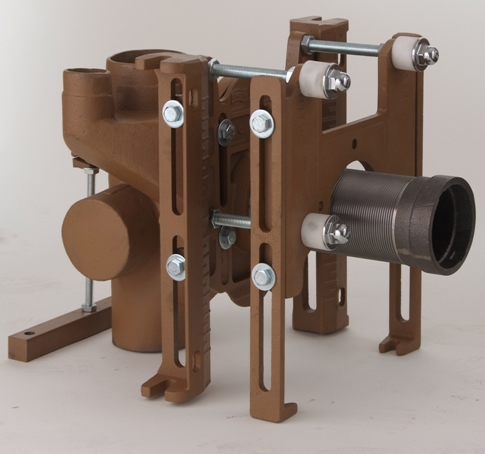

This contractor labor saving, adjustable fixture support for bariatric duty siphon jet water closets features no-hub vertical fittings. When installed correctly it is able to support a pull-out force of 1000 lbs (454 kg).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Water Closet Support
SubmittalSubmittal 0230Y-M54-XK Support
View
Technical Drawings
0230Y-M54-XK Support CAD DrawingVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base AssemblyDWG283 KB
0230Y-M58-M54-XK Support CAD DrawingVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly, Adjustable Nipple and O-RingDWG281 KB
0230Y-M54-XK Support Revit DrawingVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base AssemblyRFA956 KB
Literature / Videos
Submittal 0230Y-M58-M54-XK SupportVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly, Adjustable Nipple and O-Ring PDF415 KB
Submittal 0230-M58-M54-XK SupportVertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - Caulked Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly, Adjustable Nipple and O-Ring PDF541 KB
Technical Data for Water Closet Supports (pdf)Technical Data for Water Closet SupportsPDF3 MB
Article: Water Closet SupportsArticle: Water Closet SupportsPDF2 MB
Article: Bariatric Water Closet SupportsArticle: Bariatric Water Closet SupportsPDF324 KB
Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsArticle: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsPDF419 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
0230Y-M54-XK Support (hi res jpg)Vertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base AssemblyJPG90 KB
0230Y-M58-M54-XK Support (hi res jpg)Vertical Fittings Extra Heavy Duty 1,000 Lbs. for Siphon Jet Water Closet - No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly, Adjustable Nipple and O-RingJPG90 KB
Engineering Newsletter: Vol. 1, Issue 5 (May 2011)0200Y-M54-XX and 0200Y-M54-XK Series Bariatric Water Closet SupportsPDF2 MB
Parts Order Guide for Water Closet SupportsParts Order Guide for Water Closet SupportsPDF4 MB
Order Guidelines for Water Closet SupportsOrder Guidelines for Water Closet SupportsPDF169 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch
  • 0230Y-M58-M54-XK NO-HUB with "O" Ring Faceplate
