0230YVertical Fittings for Shallow Rough-In Type for Siphon Jet Water Closets

Contractor labor saving, adjustable fixture support for siphon jet water closets featuring no-hub horizontal fittings. When installed correctly it is able to support 750 lbs.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type
Water Closet Support

SubmittalSubmittal 0230Y WC Support (pdf)

View

Technical Drawings

0230 - Vertical Fittings (3D, dwg)		DWG452 KB
0230 - 5" Vertical Fittings (3D, dwg)		DWG439 KB
0230 - 6 " Vertical Fittings (3D, dwg)		DWG439 KB
0230D - Vertical Fittings (3D, dwg)		DWG500 KB
0230D - 5" Vertical Fittings (3D, dwg)		DWG493 KB
0230D - 6" Vertical Fittings (3D, dwg)		DWG493 KB
0230Y - Vertical Fittings-No Hub (3D, dwg)	0230Y - Vertical Fittings-No Hub (3D, dwg)	DWG449 KB
0230Y - 5" Vertical Fittings-No Hub (3D, dwg)		DWG432 KB
0230Y - 6" Vertical Fittings-No Hub (3D, dwg)		DWG432 KB
0230DY - 5" Vertical Fittings-No Hub (3D, dwg)		DWG494 KB
0230DY - 6" Vertical Fittings-No Hub (3D, dwg)		DWG479 KB
0230Y-M54 - Vertical Fittings-No Hub (3D, dwg)		DWG403 KB
0230DY-M54 - Vertical Fittings-No Hub (3D, dwg)		DWG2 MB
0260 - Vertical Fittings (3D, dwg)	0260 - Vertical Fittings (3D, dwg)	DWG456 KB
0260-5 - Vertical Fittings (3D, dwg)	0260-5 - Vertical Fittings (3D, dwg)	DWG439 KB
0260-6 - Vertical Fittings (3D, dwg)	0260-6 - Vertical Fittings (3D, dwg)	DWG440 KB
0260D - Vertical Fittings (3D, dwg)	0260D - Vertical Fittings (3D, dwg)	DWG497 KB
0260D-5 - Vertical Fittings (3D, dwg)	0260D-5 - Vertical Fittings (3D, dwg)	DWG492 KB
0260D-6 - Vertical Fittings (3D, dwg)	0260D-6 - Vertical Fittings (3D, dwg)	DWG482 KB
0230DY - Vertical Fittings-No Hub (3D, dwg)	0230DY - Vertical Fittings-No Hub (3D, dwg)	DWG497 KB
DWG 0230 Support	DWG 0230 Support	DWG236 KB
DWG 0230Y Support	DWG 0230Y Support	DWG231 KB
0230Y-M54 WC Support (dwg)	Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings with Face Plate, Side Mounted Base Support Assembly [0230Y-M54 \| Single-Sided; 0230DY-M54 \| Double-Sided (back-to-back]	DWG403 KB
d0230Y-M54-M58 Support (dwg)	d0230Y-M54-M58 Support (dwg)	DWG406 KB
0230DY-M54 Support (rfa)		RFA2 MB
0230Y-M54 WC Support (rfa)	Adjustable Support for Siphon Jet Water Closets - No-Hub Vertical Fittings with Face Plate, Side Mounted Base Support Assembly [0230Y-M54 \| Single-Sided; 0230DY-M54 \| Double-Sided (back-to-back]	RFA2 MB
0230DY-M54-M58 Support (rfa)	Siphon Jet Water Closets Fittings	RFA2 MB
0230Y-M54-M58 Support (rfa)	Siphon Jet Water Closets Fittings	RFA2 MB
Lav Support, Support, Roof Drain, Floor Drain, Water Hammer Arrestor (itm)	0208LY-M54 thru 0250DY4-M58-M54; 0636 and 0637; 0700 thru 0800D; 0800; 0800D; 1015Y; 1045Y; 2005Y-B; 2141Y; 3041	ZIP8 MB
RFA 0230 Support	RFA 0230 Support	RFA3 MB
RFA 0230D Support	RFA 0230D Support	RFA2 MB
RFA 0230DY-M54-XK Support		RFA2 MB

Literature / Videos

Submittal 0230, 0260 WC Support (pdf)	Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, Caulk Connection 0230 \| Short Vertical Barrel; 0230D \| Short Barrel, Double (Back-to-Back); 0260 \| Long Vertical Barrel 0260D \| Long Vertical Barrel, Double]	PDF866 KB
Submittal 0230Y-M58-M54 WC Support (pdf)	Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, No-Hub Connection, Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0230Y-M58-M54 \| Single; 0230DY-M58-M54 \| Double (Back-to-Back)]	PDF588 KB
Submittal 0230Y-M54 WC Support (pdf)	Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, No-Hub Connection, Face Plate, Side Mounted Base Support Assembly [0230Y-M54 \| Single; 0230DY-M54 \| Double (Back-to-Back)]	PDF248 KB
Submittal 0230-M54 WC Support (pdf)	Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, Caulk Connection, Face Plate, Side Mounted Base Support Assembly [0230-M54 \| Single; 0230D-M54 \| Double (Back-to-Back)]	PDF602 KB
Submittal 0230-M58-M54-XX WC Support (pdf)	Adjustable Support for Siphon Jet Water Closet - Hub & Spigot Vertical Fittings - Extra Heavy Duty [0230-M58-M54-XX \| Caulked Single; 0230D-M58-M54-XX \| Caulked Double (Back-to-Back)]	PDF2 MB
Technical Data for Water Closet Supports (pdf)	Technical Data for Water Closet Supports	PDF3 MB
Article: Water Closet Supports	Article: Water Closet Supports	PDF2 MB
Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products	Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products	PDF419 KB
MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	PDF8 MB
MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	PDF712 KB
Specifications for Water Closet Supports	Specifications for Water Closet Supports	DOC113 KB
Article: F. W. Spencer & Son Meets Levi’s Stadium’s Tight Deadline Thanks to Jay R. Smith Prefab Ready Products (pdf)	EMC Sees 30-Percent Labor Savings with Victaulic 3D Renderings and Installation-Ready Couplings	PDF2 MB
Order Guidelines for Water Closet Supports	Order Guidelines for Water Closet Supports	PDF169 KB
Parts Order Guide for Water Closet Supports	Parts Order Guide for Water Closet Supports	PDF4 MB
Quote Worksheet Smith Drainage Systems	Quote Worksheet Smith Drainage Systems	PDF36 KB
Water Closet Supports (video)	Video Water Closet Supports	Video

Can't find what you are looking for? Get in touch

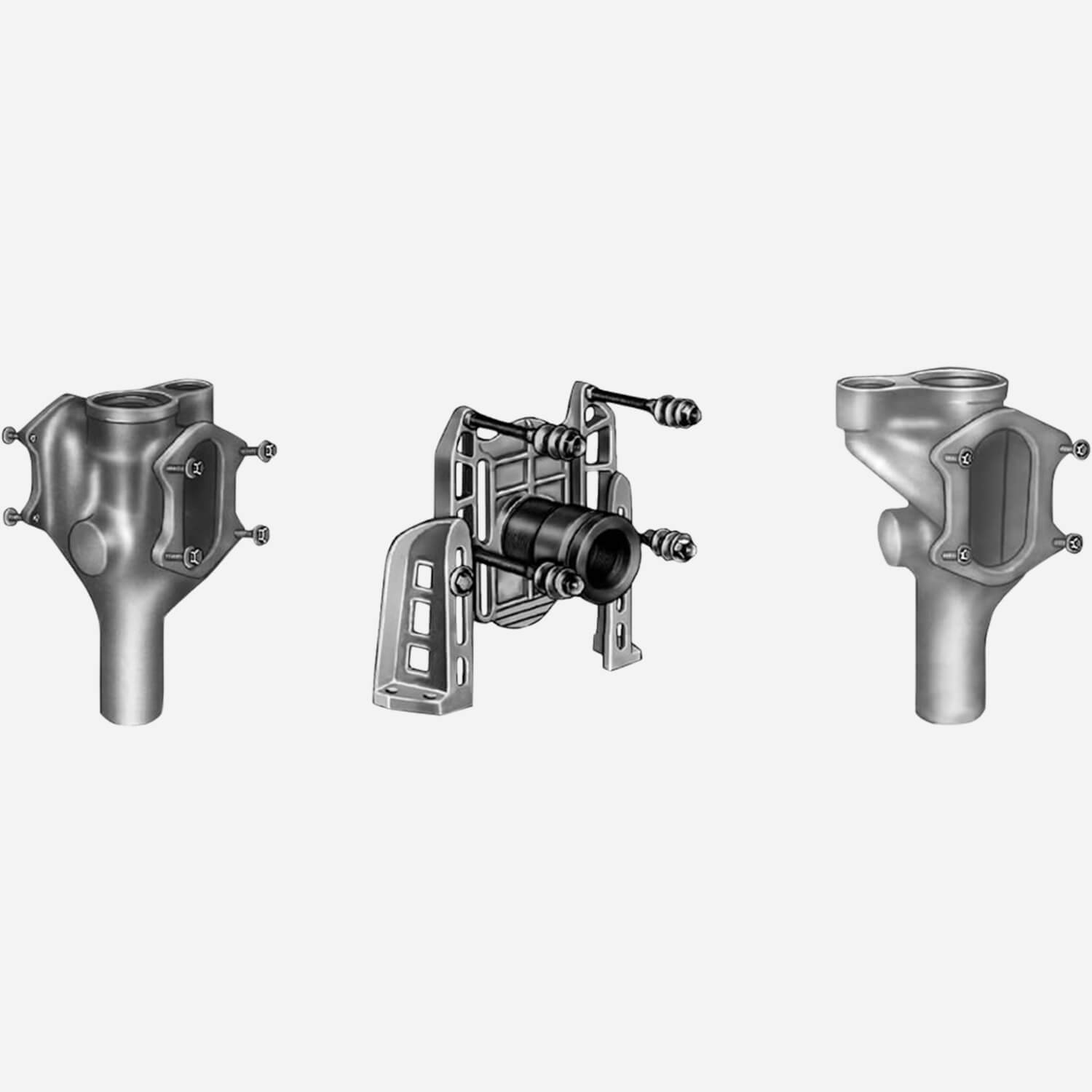

Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, Caulk Connection [submittal]
0230 | Short Vertical Barrel
0230D | Short Vertical Barrel, Double (Back-to-Back)
0260 | Long Vertical Barrel
0260D | Long Vertical Barrel, Double (Back-to-Back)

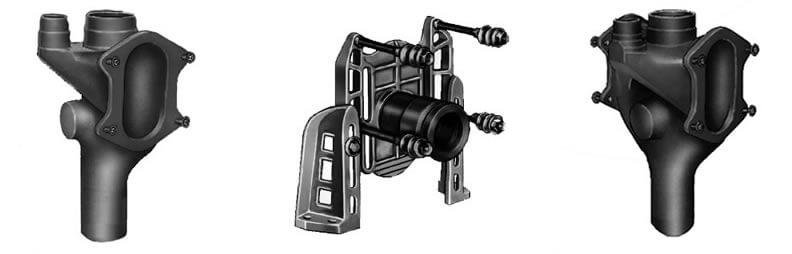

Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, No-Hub Connection [submittal]
0230Y | Single
0230DY | Double (Back-to-Back)

Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, Caulk Connection,
Face Plate, Side Mounted Base Support Assembly [submittal]
0230-M54 | Single
0230D-M54 | Double (Back-to-Back)

Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, No-Hub Connection,
Face Plate, Side Mounted Base Support Assembly [submittal]
0230Y-M54 | Single
0230DY-M54 | Double (Back-to-Back)

Adjustable Support for Siphon Jet Water Closets - Shallow Rough-in Type, Vertical Fittings, No-Hub Connection,
Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]
0230Y-M58-M54 | Single
0230DY-M58-M54 | Double (Back-to-Back)
