Figure Number: 4436 & 4437
Contact a Representative

4436 & 4437Taper Thread Plug with Round Frame and Cover

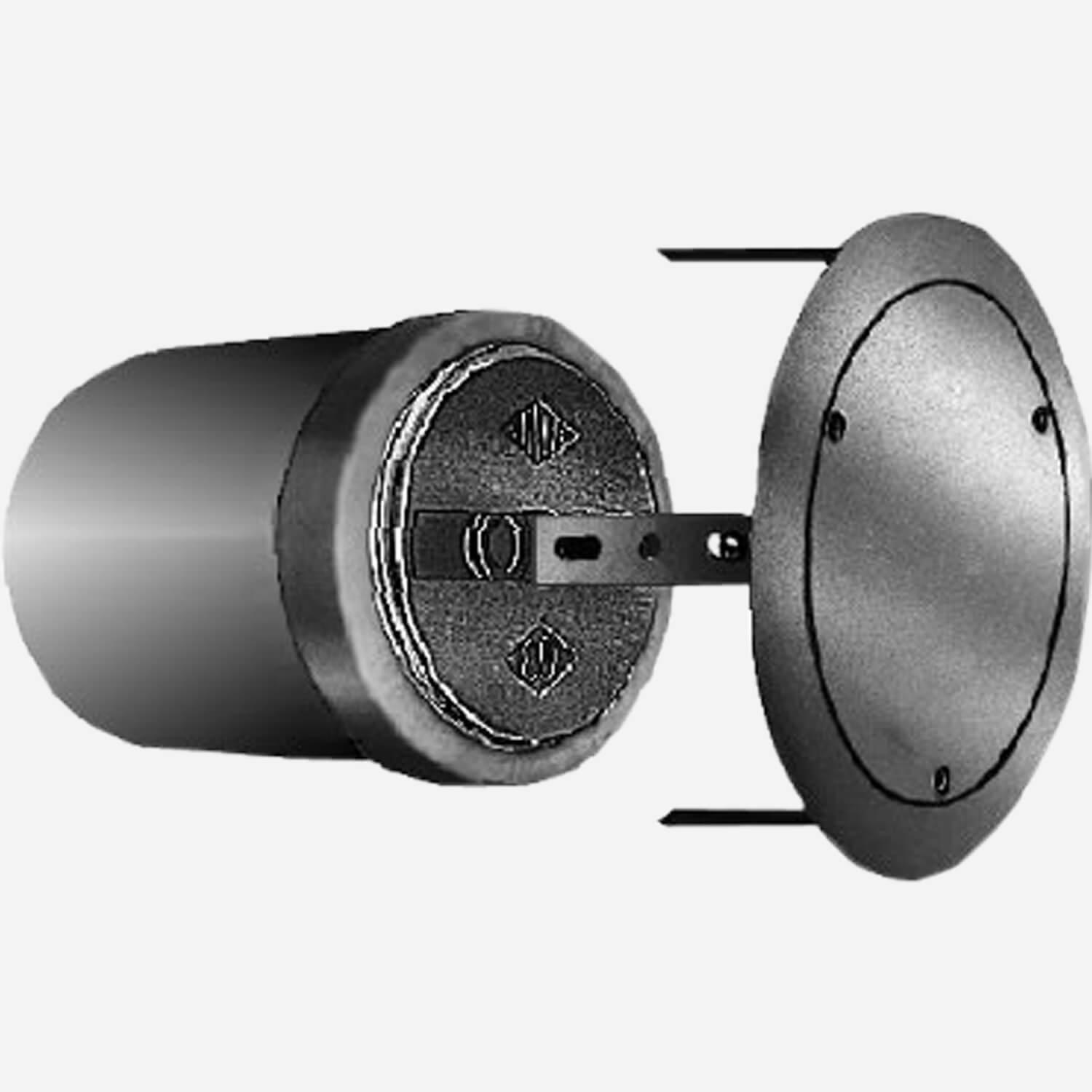

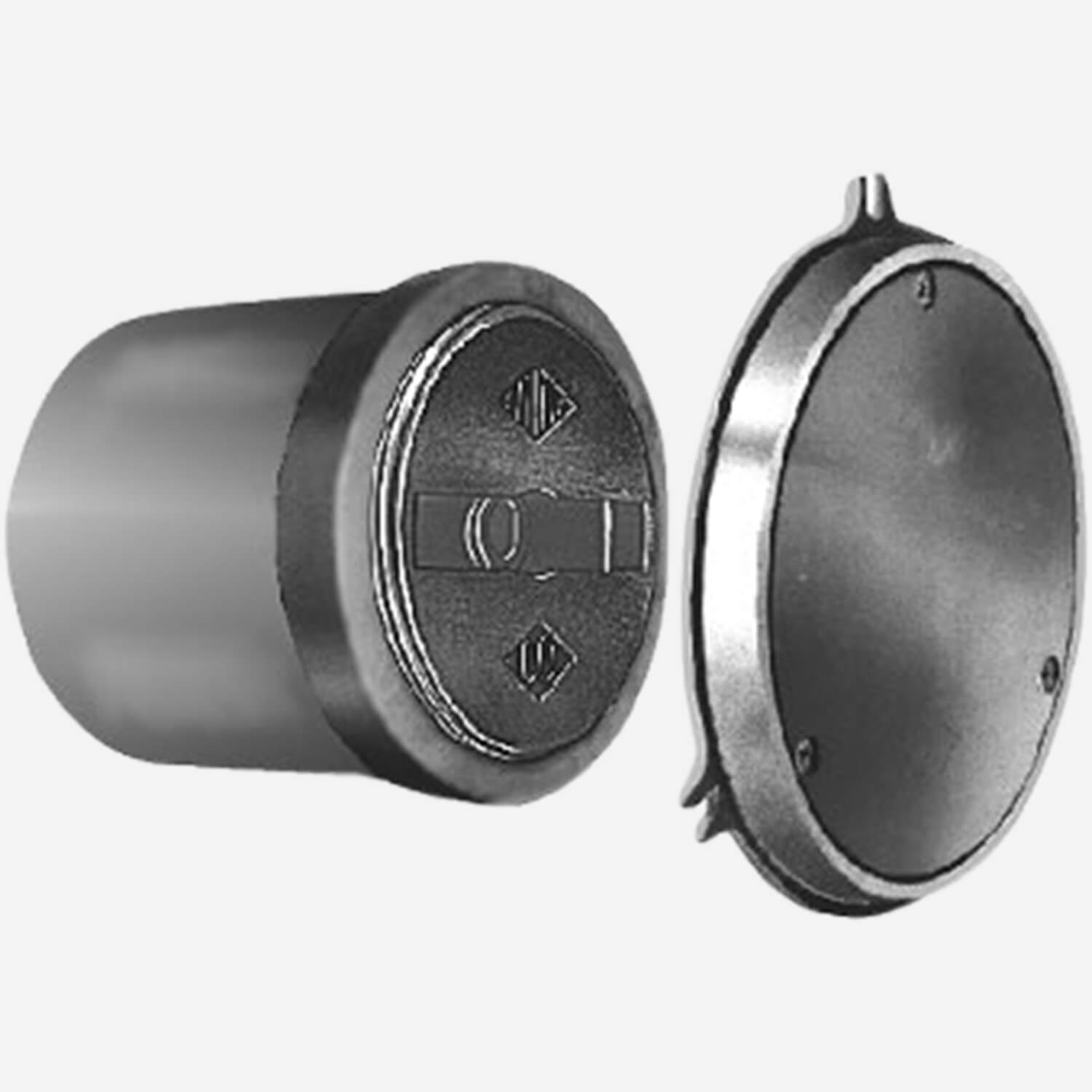

This cast bronze tapered thread closure plug is used in caulk ferrule cleanouts that have tapered threads. It can be equipped with one of two circular frames with secured covers. Fig. 4436 is designed for face-of-wall installation in tile, masonry, or dry wall construction. It is usually installed on an opening in the finished wall. Fig. 4437 is intended for flush-with-wall installation in plaster or wet wall construction and is installed during the wall construction. Both are fitted with anchoring lugs that secure the frame to the wall.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze -NB - Frame and Cover, Polished Bronze -PB - Frame and Cover
  • Product Type
    Cleanout
SubmittalSubmittal 4436, 4437 Cleanout (pdf)
View
Technical Drawings
4436, 4437 Cleanout (dwg)Caulk Ferrule Cleanouts with Frame and Cover, Cast Iron Taper Thread Plug - Chrome Plated Bronze Round Frame and Cover [4436C | Face-of-Wall Cover; 4437 | Flush-with-Wall Cover]DWG47 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Can't find what you are looking for? Get in touch

Caulk Ferrule Cleanouts with Frame and Cover
Cast Iron Taper Thread Plug - Chrome Plated Bronze Round Frame and Cover

Face-of Wall Round Cover
4436C02 | 2" Pipe Size, 6" Frame Size
4436C03 | 3" Pipe Size, 7" Frame Size
4436C04 | 4" Pipe Size, 7-1/2" Frame Size
4436C05 | 5" Pipe Size, 7-1/2" Frame Size
4436C06 | 6" Pipe Size, 10" Frame Size

Flush-with-Wall Round Cover
4437C02 | 2" Pipe Size, 4-1/2" Cover Size
4437C03 | 3" Pipe Size, 5-3/4" Cover Size
4437C04 | 4" Pipe Size, 6-1/2" Cover Size
4437C05 | 5" Pipe Size, 6-1/2" Cover Size
4437C06 | 6" Pipe Size, 8-1/2" Cover Size
4437C08 | 8" Pipe Size, 10-1/2" Cover Size
