Figure Number: 0720

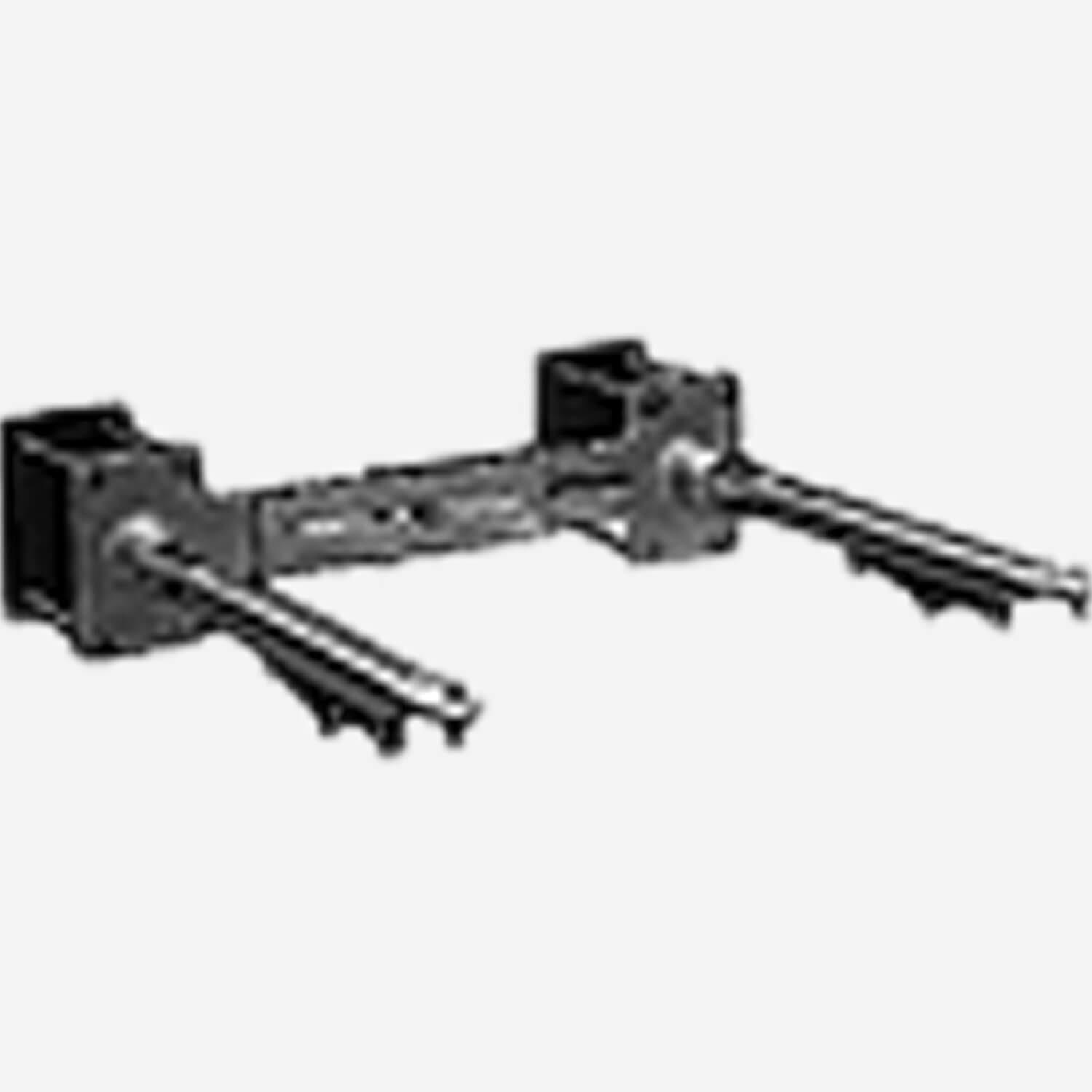

0720Support Set on Masonry or Stud Walls - Wall Mounted

For masonry or stud wall installation, the epoxy coated heavy gauge steel plates of our wall mounted high back lavatory supports clamp to wall framing to meet height specifications. Sleeves are internally threaded to accept horizontal adjustment of the threaded concealed arms and arm lock nuts. To ensure that the lavatory is solidly affixed to the support arms, our Sure-set locking device easily adjusts from underneath the lavatory to firmly grip its inner wall while leveling screws ensure a precise installation.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
Technical Drawings
DWG 0720 SupportDWG 0720 SupportDWG81 KB
DWG 0720-E SupportDWG 0720-E SupportDWG78 KB
Literature / Videos
Submittal 0720-E SupportSubmittal 0720-E SupportPDF583 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Lavatory SupportsSpecifications for Lavatory SupportsDOC141 KB
Technical Data for Lavatory SupportsTechnical Data for Lavatory SupportsPDF493 KB
Order Guidelines for Lavatory SupportsOrder Guidelines for Lavatory SupportsPDF120 KB
Parts Order Guide for Lavatory SupportsParts Order Guide for Lavatory SupportsPDF748 KB
