Figure Number: DX1240
Contact a Representative

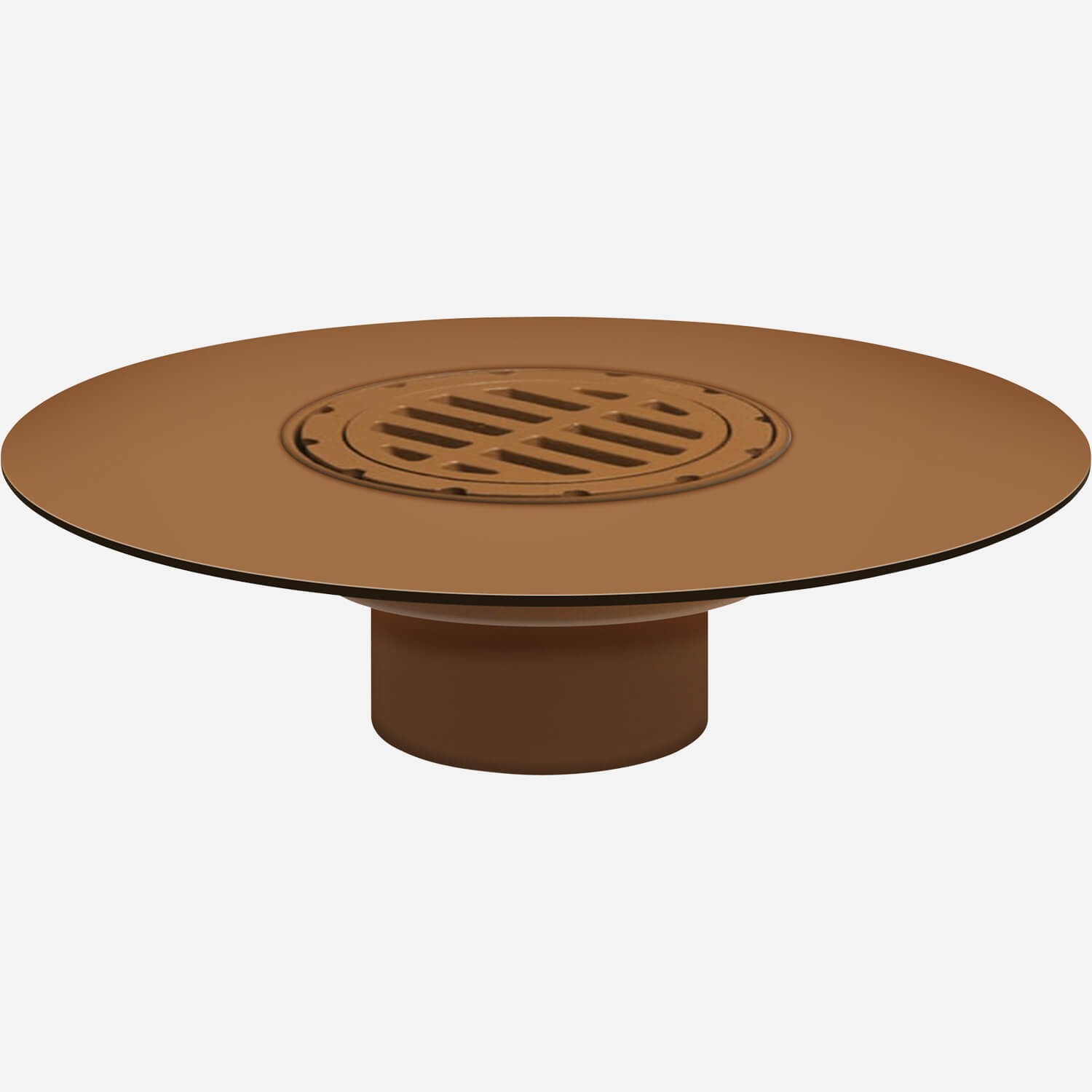

DX1240Medium Wide Flange Body Roof Drain with "Safe-Set®" Bucket

Designed for installation on promenade roof decks, this 8-1/2" diam. general purpose roof drain has a 17" diam. flange that provides a large surface for bonding with waterproof sheathing. It is fitted with our Safe-Set® sediment bucket that guarantees proper reallignment after cleaning, ensuring protection of the drainage system.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Membrane Clamp - (Specify DX2565R), NO-HUB Adaptor - (Specify Fig. 2646Y), Securing Holes -SH, Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Roof Drain
SubmittalSubmittal DX1240 Roof Drain
View
Technical Drawings
DX1240 Roof Drain CAD DrawingMedium Wide Flange Body Roof Drain with "Safe-Set®" BucketDWG16 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Parts Order Guide for Roof DrainsParts Order Guide for Roof DrainsPDF5 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
