Name: Vertical Fittings with Side Inlet Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closets
Brand: Jay R. Smith Mfg. Co.
SKU: 0240Y-M54-XX

Model 0240Y-M54-XX

Vertical Fittings with Side Inlet Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closets

Contractor labor saving, shallow rough-in, adjustable fixture support for bariatric siphon jet water closets featuring vertical fittings with side inlet. When installed correctly it is able to support 750 lbs (340.20 kg).

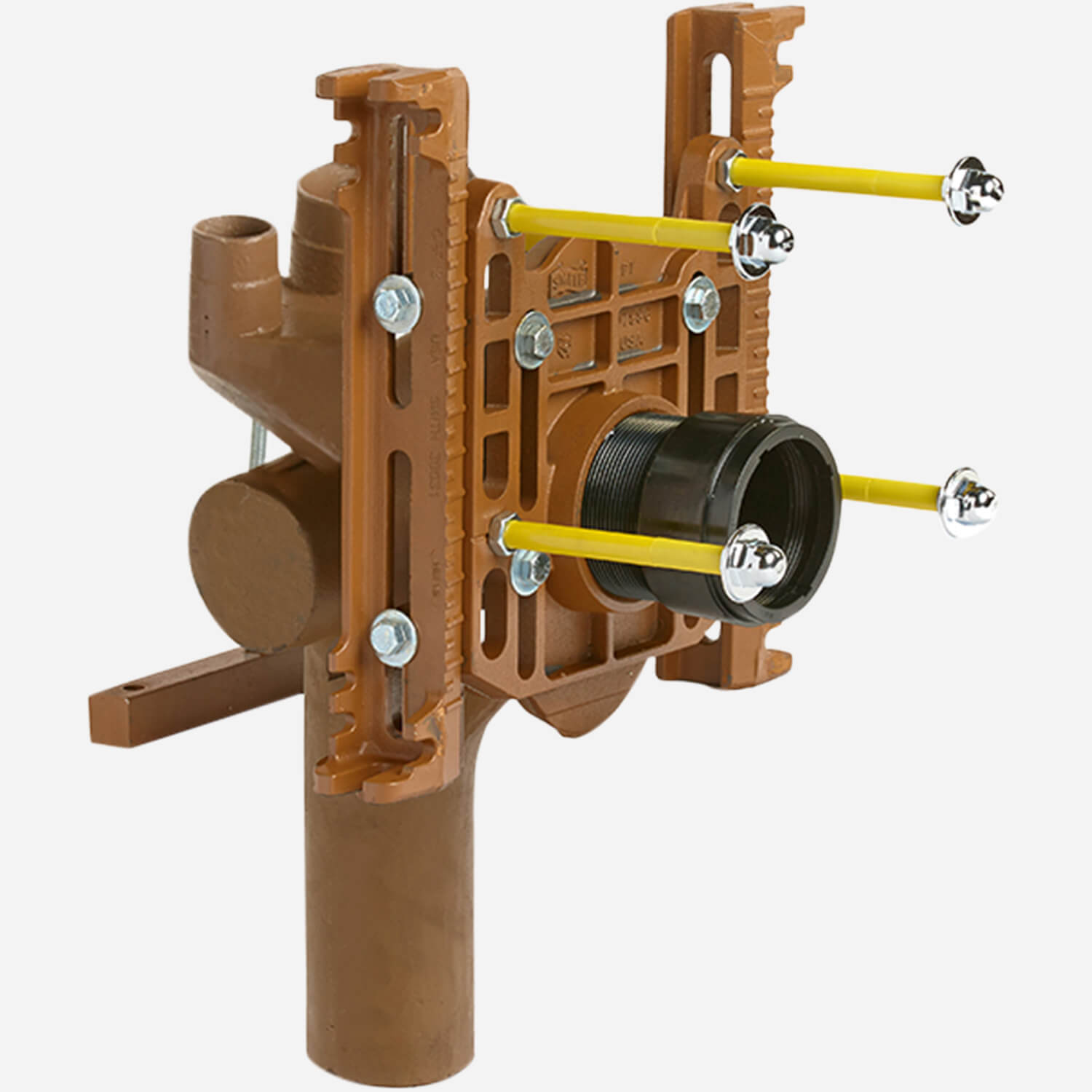

Figure 0240Y-M54-XX features no hub vertical fittings, side inlet, face plate, and side-mounted base assembly.

Figure 0240Y-M58-M54-XX features no hub vertical fittings, side inlet, face plate, side-mounted base assembly, adjustable nipple, and o-ring

Figure 0240-M54-XX features vertical fittings, side inlet, face plate, and side-mounted base assembly

Additional supports are available to facilitate much less than 750 lbs or as much as 1,000 lbs (454 kg) capacities.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 0240Y-M54-XX WC Support (pdf)	Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - No Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Support Assembly	119 KB
Drawings	0240_XX Support CAD Drawings	Vertical Fittings with Side Inlet Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closet [0240Y-M54-XX No Hub - Face Plate, Side-Mounted Base Support Assembly; 0240Y-M58-M54-XX also with Adjustable Nipple and O-Ring]	141 KB
Submittals	Submittal 0240Y-M58-M54-XX WC Support (pdf)	Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - No Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple and O-Ring	124 KB
Submittals	Submittal 0240-M54-XX WC Support (pdf)	Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - Vertical Fittings with Side Inlet, Face Plate, and Side Mounted Base Support Assembly [0240L-M54-XX; 0240R-M54-XX; 0240D-M54-XX]	1 MB
Technical Data Sheets	Technical Data for Water Closet Supports (pdf)	Technical Data for Water Closet Supports	2 MB
Articles	Article: Water Closet Supports	Article: Water Closet Supports	1 MB
Articles	Article: Bariatric Water Closet Supports	Article: Bariatric Water Closet Supports	324 KB
Articles	Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products	Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products	420 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Newsletters	Engineering Newsletter: Vol. 1, Issue 5 (May 2011)	0200Y-M54-XX and 0200Y-M54-XK Series Bariatric Water Closet Supports	1 MB
Parts Manuals	Parts Order Guide for Water Closet Supports	Parts Order Guide for Water Closet Supports	4 MB
Ordering	Order Guidelines for Water Closet Supports	Order Guidelines for Water Closet Supports	170 KB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
