Model 0675

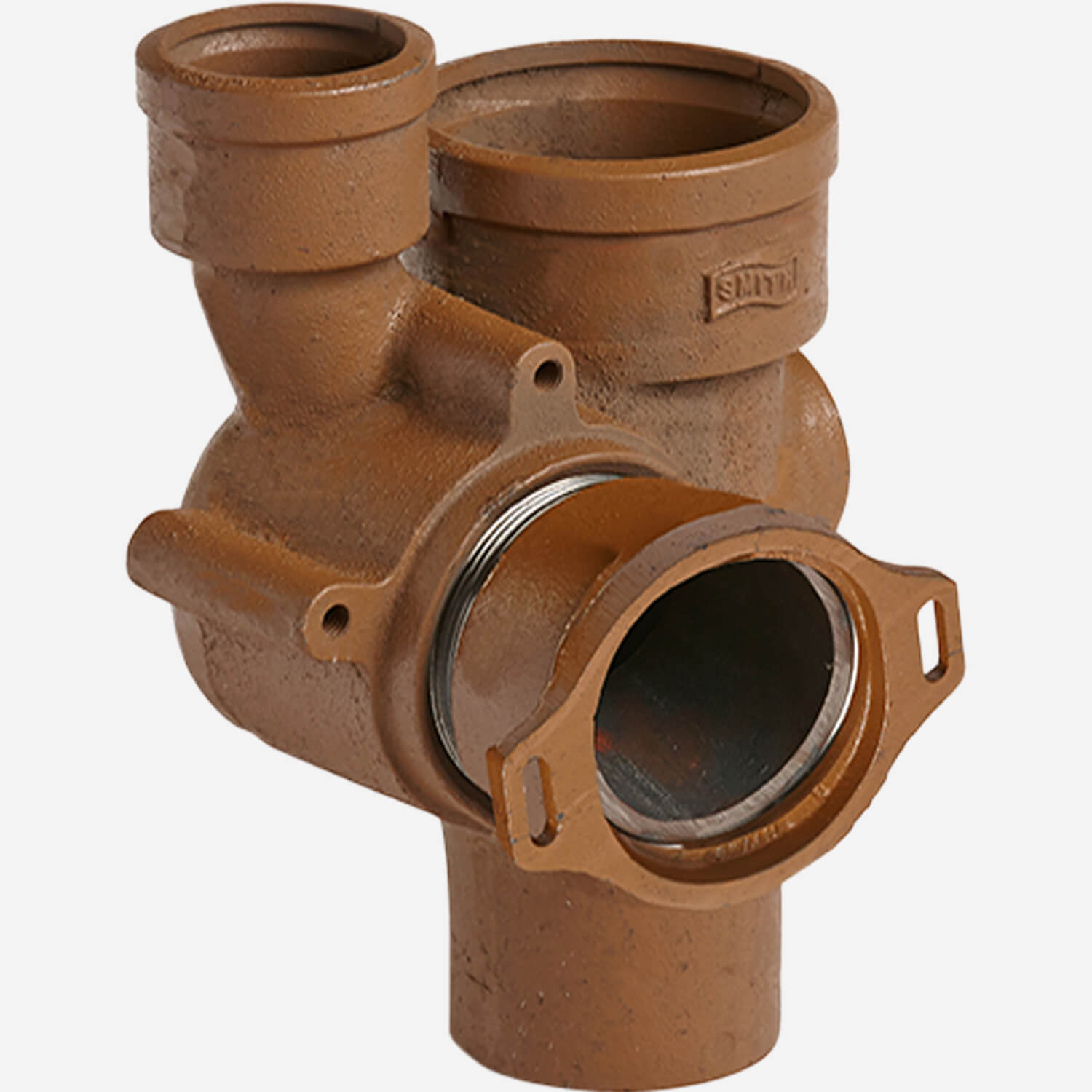

Floor Mounted Side Inlet Vertical Fitting with Back Outlet
This vertical offset waste fitting is designed for use with floor mounted back outlet water closets. Selecting the proper vertical stack fitting is of prime importance since that fitting with side inlets is the start of the horizontal battery of fittings and supports. To determine left or right hand fitting, face the stack from the fixture side of the wall. If the inlet is to the left of the stack, it is a left hand fitting. If the inlet is on the right of the stack, it is a right hand fitting. The vent is always located on the same side as the inlet on a single inlet stack fitting.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Vertical Offset Water Closet Waste Fitting - for use with Floor Mounted Back Outlet Water Closet [Short Barrel 0675L, 0675R, 0675D; Long Barrel 0688L, 0688R, 0688D] | 562 KB | |||
 | | Vertical Offset Water Closet Waste Fitting - for use with Floor Mounted Back Outlet Water Closet [Short Barrel 0675L, 0675R, 0675D; Long Barrel 0688L, 0688R, 0688D] | 0 | 154 KB | ||
| | No-Hub Vertical Offset Waste Fitting - For Use with Floor Mounted Back Outlet Water Closet [0688LY | No-Hub Left Hand Long Barrel; 0688RY | No-Hub Right Hand Long Barrel; 0688DY | No-Hub Double (Back-to-Back) Long Barrel] | 0 | 544 KB | ||
| | Technical Data for Water Closet Supports | 0 | 2 MB | ||
| | Article: Water Closet Supports | 0 | 1 MB | ||
| | Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products | 0 | 420 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Water Closet Supports | 0 | 113 KB | ||
| | Parts Order Guide for Water Closet Supports | 0 | 4 MB | ||
| | Order Guidelines for Water Closet Supports | 0 | 170 KB | ||
 | | Video Water Closet Supports | 0 | 132 KB |
Specifications
| Product Type | Water Closet Support |
Models
SHORT BARREL [submittal]
0675L | Left Hand Orientation
0675R | Right Hand Orientation
0675D | Double (Back-to-Back) Orientation
LONG BARREL [submittal]
0688L | Left Hand Orientation
0688R | Right Hand Orientation
0688D | Double (Back-to-Back) Orientation
LONG BARREL NO-HUB CONNECTION [submittal]
0688LY | Left Hand Orientation
0688RY | Right Hand Orientation
0688DY | Double (Back-to-Back) Orientation
