Name: Labor Saver® Blowout Urinal Support with Supporting Studs and Adjustable Coupling
Brand: Jay R. Smith Mfg. Co.
SKU: 0609

Model 0609

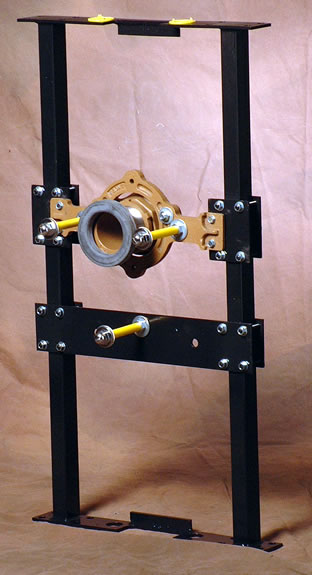

Labor Saver® Blowout Urinal Support with Supporting Studs and Adjustable Coupling

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations

This contractor labor saving support features supporting studs and adjustable coupling for blowout urinals. It has been designed to speed up the installation process by using a one-piece, pre-assembled rigid steel frame construction. This innovative support is easy to adjust and allows for installation in narrow wall and metal stud configurations. Meets or exceeds the applicable requirement of ASME A112.6.1 M 1997 and is IAPMO Listed.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.
