Adjustable Support for Siphon Jet Water Closets - Horizontal Fittings with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring

0211Y-M58-M54 Series is an adjustable support specifically for Siphon Jet Water Closets. The supports designed for a No-Hub horizontal fittings. Barrels are available in 14" (355 mm) short dimension (0211) and 36" (915 mm) long dimension (0221). They are available in single left-hand orientation, single right-hand orientation or double (back-to-back.

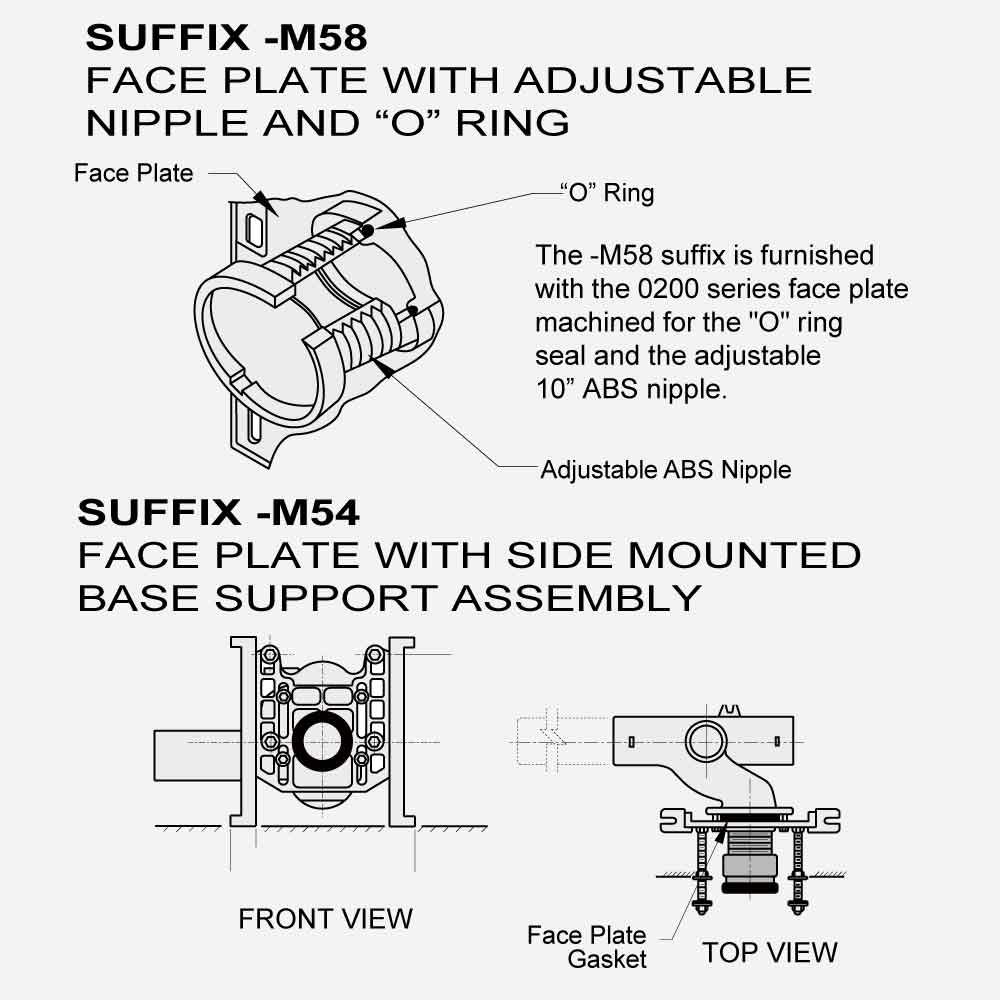

Additionally, the support features Face Plate, Side Mounted Base Support Assembly (Suffix -M54) and Adjustable Nipple, O-Ring (Suffix -M58).

Easy to Build, Quick to Assemble, Adjustable, Smaller Chase Space

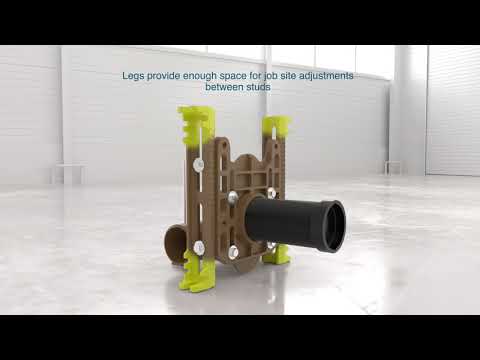

The Quarterback Water Closet Support from Jay R. Smith Mfg. Co. is designed for a better fit in less chase area. Newly designed legs provide easy access to the securing bolts of the faceplate allowing for height adjustment even with adjacent wall framing. The legs also have four additional securing slots, which can accommodate accessories to aid in installation, especially for pre-fabrication.

Pro Tip: The legs on this support provide numerous options to secure and transport a battery and/or mount or affix the supply line for the flush valve.

Note: if heavy duty supports are necessary see Figures 0211Y-M54-XX Series (750 lbs rating) or 0211Y-M54-XK Series (Bariatric 1,000 lbs rating).
