Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting
Labor Saving Narrow Wall Closet Water Closet Supports - Vertical Fittings
- Fits into narrow chase spaces, minimum of 9" (228.6 mm) from the front of the faceplate to the back of the fitting
- No rear anchor required
- Creates more billable space for the architect
- Two anchors for install versus 3 anchors on traditional carriers
- 500 lbs (226.796 kg) load rating
- Prefab compatible with the ability to anchor angle iron or strut at top or base of leg

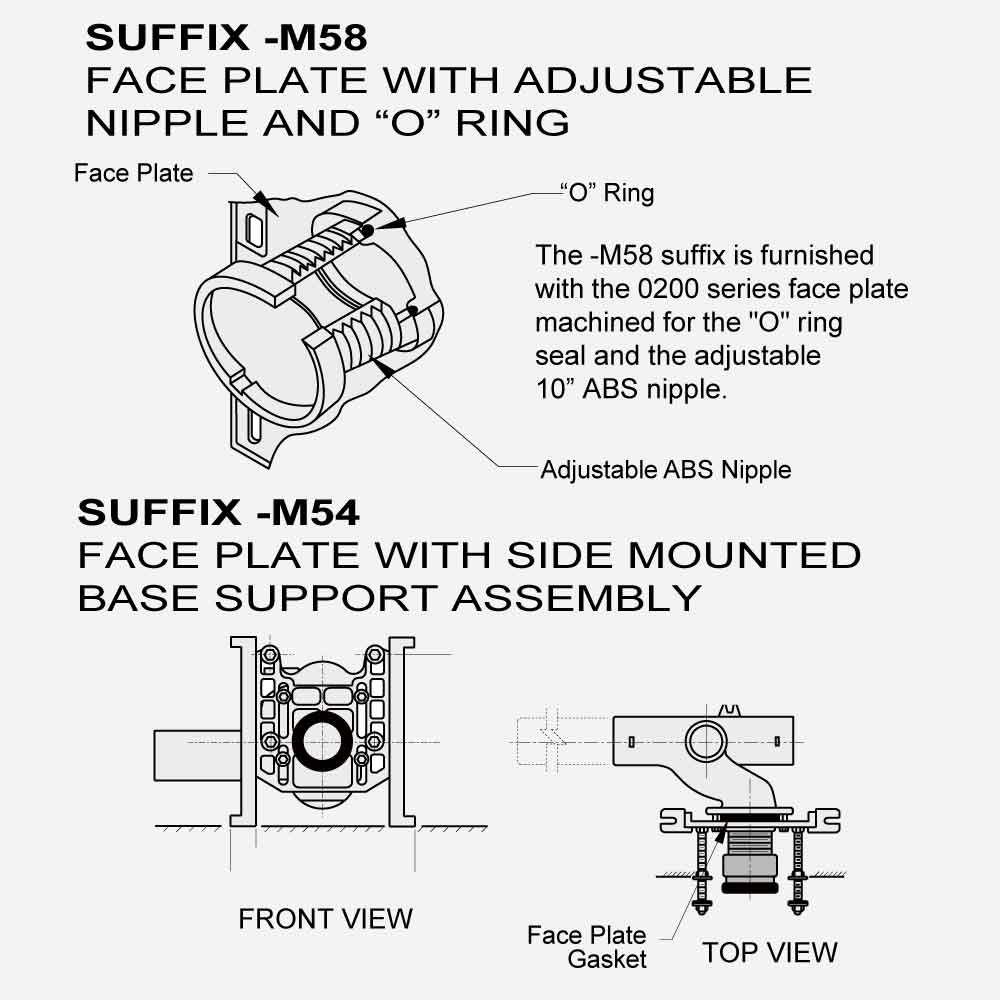

- Features Face Plate, Side Mounted Base Support Assembly
- Additionally available with Adjustable Nipple, O-Ring
- Available with single (left or right) or dual side inlets
- Available as single sided or double-sided (back-to-back) installations
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Face Plate, Side Mounted Base Support Assembly [0230Y-M54NW | Single ; 0230DY-M54NW | Double (back to back)] | 882 KB | |||
 | | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fittings with Face Plate, Side Mounted Base Support Assembly [0230Y-M54NW, 0230Y-M58-M54NW,0230DY-M58-M54NW] | 0 | 6 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets, Face Plate, Side Mounted Base Support Assembly [0250Y-M54NW, 0250Y-M58-M54NW, 0250DY-M54NW, 0250DY-M58-M54NW] | 0 | 9 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly [0240LY-M54NW, 0240RY-M54NW, 0240DY-M54NW] | 0 | 7 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0240LY-M58-M54NW, 0240RY-M58-M54NW, 0240DY-M58-M54NW] | 0 | 7 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0230Y-M58-M54NW | Single; 0230DY-M58-M54NW | Double (back-to back)] | 0 | 997 KB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Side Inlet with Face Plate, Side Mounted Base Support Assembly [0240LY-M54NW, 0240RY-M54NW, 0240DY-M54NW] | 0 | 898 KB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0240LY-M58-M54NW, 0240RY-M58-M54NW, 0240DY-M58-M54NW] | 0 | 1007 KB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets with Face Plate, Side Mounted Base Support Assembly [0250Y-M54NW | Single; 0250DY-M54NW | Double (back-to-back)] | 0 | 890 KB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0250Y-M58-M54NW | Single, 0250DY-M58-M54NW | Double] | 0 | 996 KB | ||
| | Narrow Wall Carrier Flyer (pdf) | 0 | 575 KB |
Specifications
| Benefit | Labor Saving |
Models
0230Y-NW SERIES

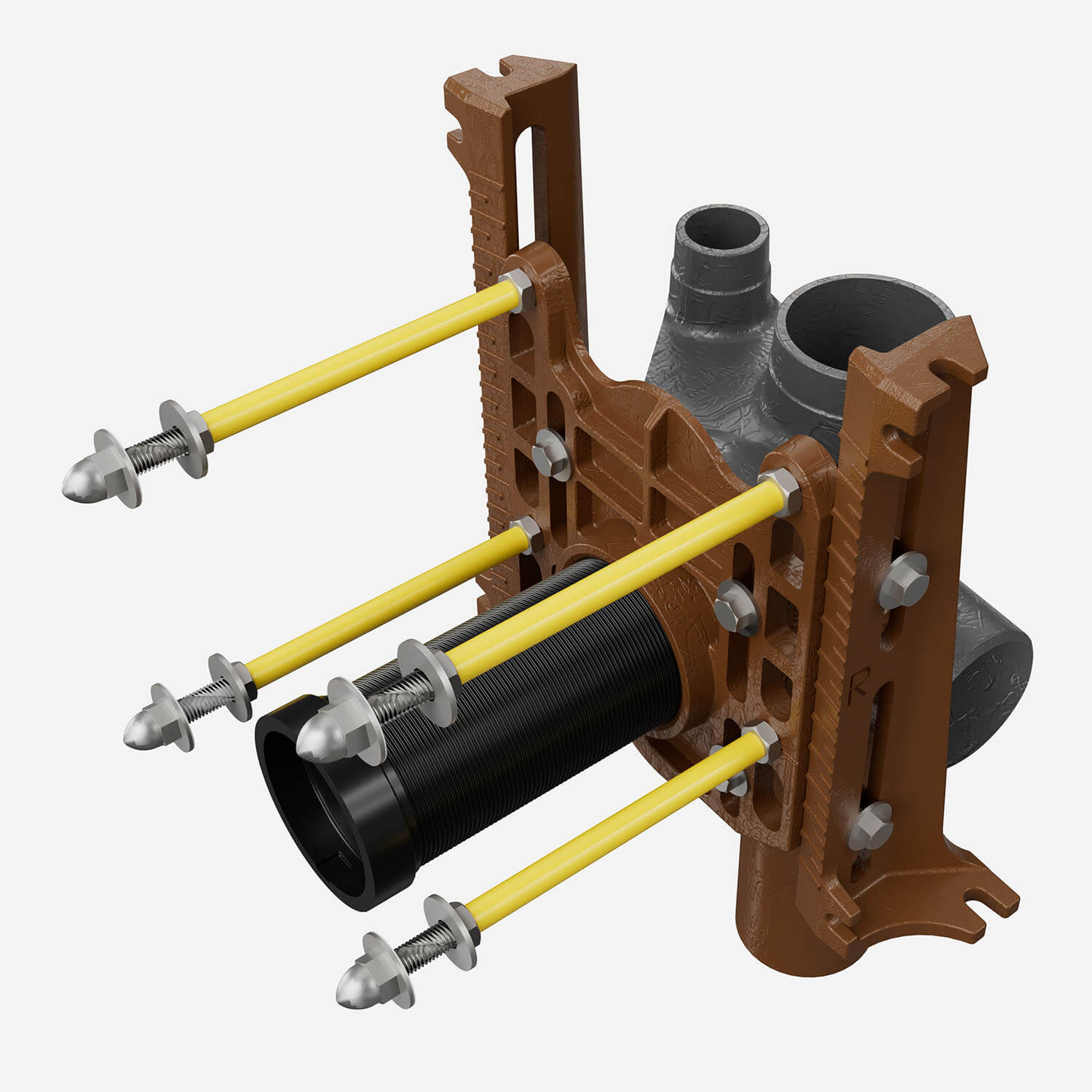

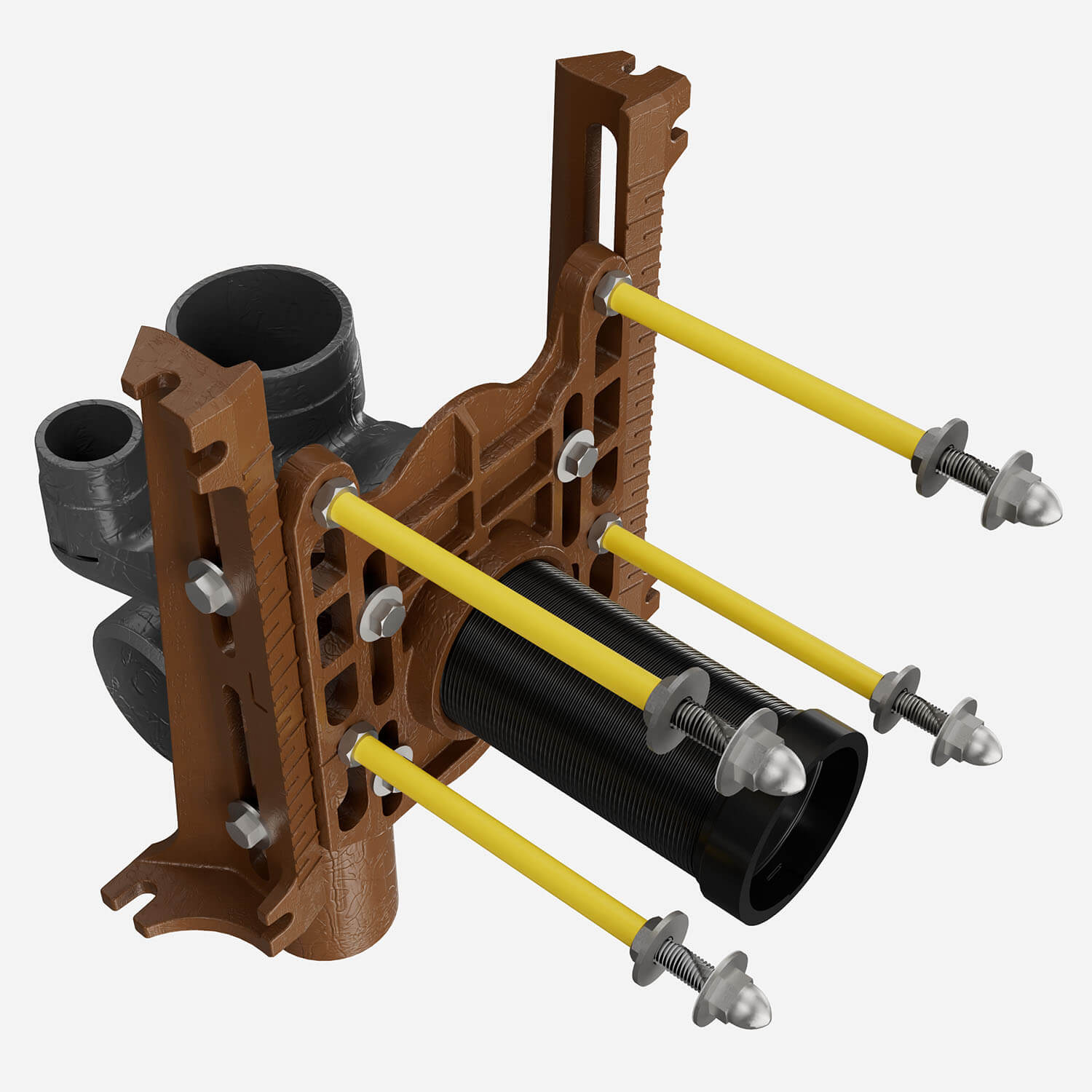

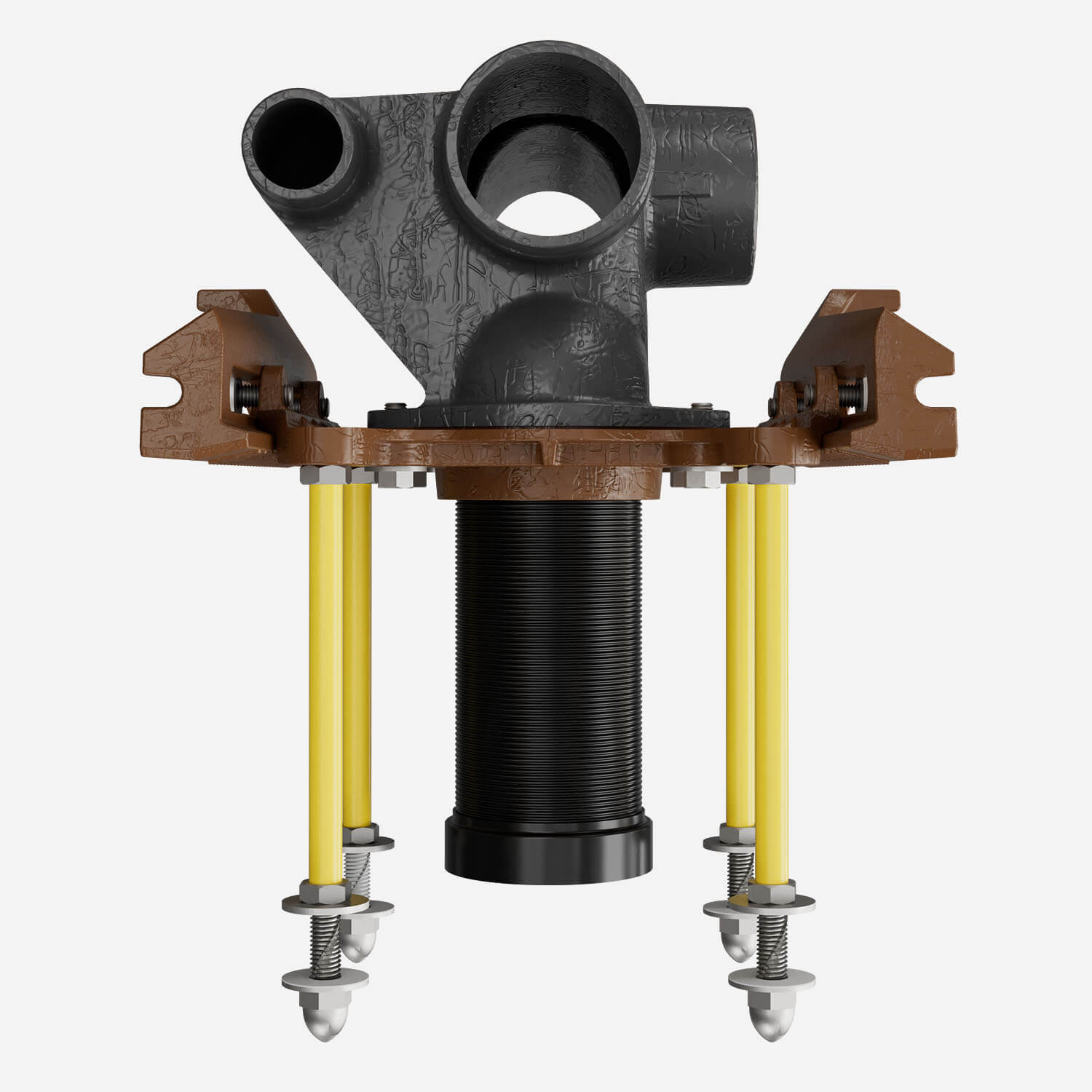

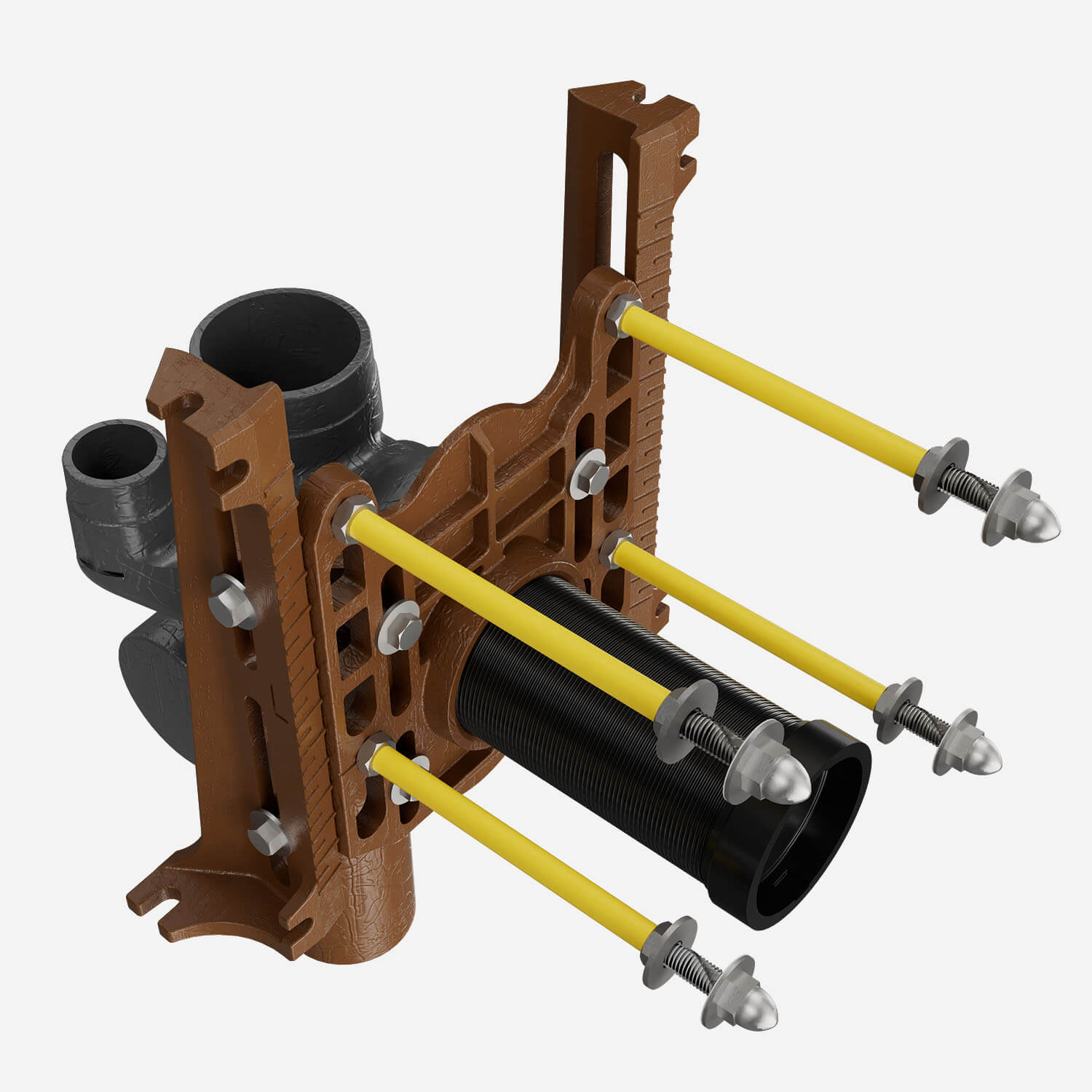

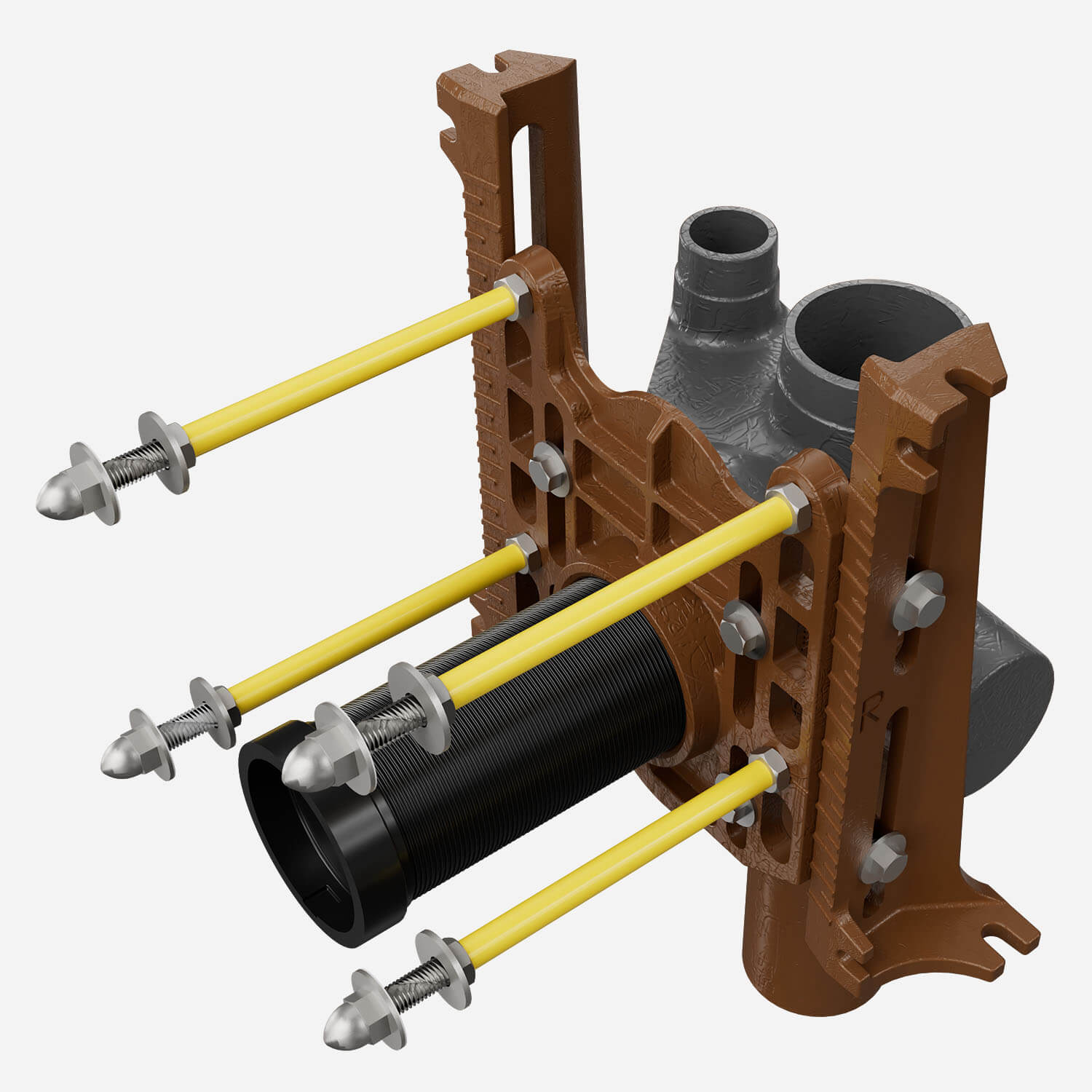

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting (No Side Inlets) with Face Plate, Side Mounted Base Support Assembly [submittal]
0230Y-M54NW
Single-Sided
0230DY-M54MW
Double-Sided (back-to-back)
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting (No Side Inlets) with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]
0230Y-M58-M54NW
Single-Sided
0230DY-M58-M54MW
Double-Sided (back-to-back)
0240Y-NW SERIES
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly [submittal]
0240LY-M54NW
Single-Sided, Left Hand Inlet
0240RY-M54NW also available
0240DY-M54MW
Double-Sided (back-to-back)
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]
0240LY-M58-M54NW
Single-Sided, Left Hand Inlet
0240RY-M58-M54NW also available
0240DY-M58-M54NW
Double-Sided (back-to-back)
0250Y-NW SERIES
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Two Side Inlets with Face Plate, Side Mounted Base Support Assembly [submittal]
0250Y-M54NW
Single-Sided
0250DY-M54MW
Double-Sided (back-to-back)
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Two Side Inlets with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]
0250Y-M58-M54NW
Single-Sided
0250DY-M58-M54MW
Double-Sided (back-to-back)
