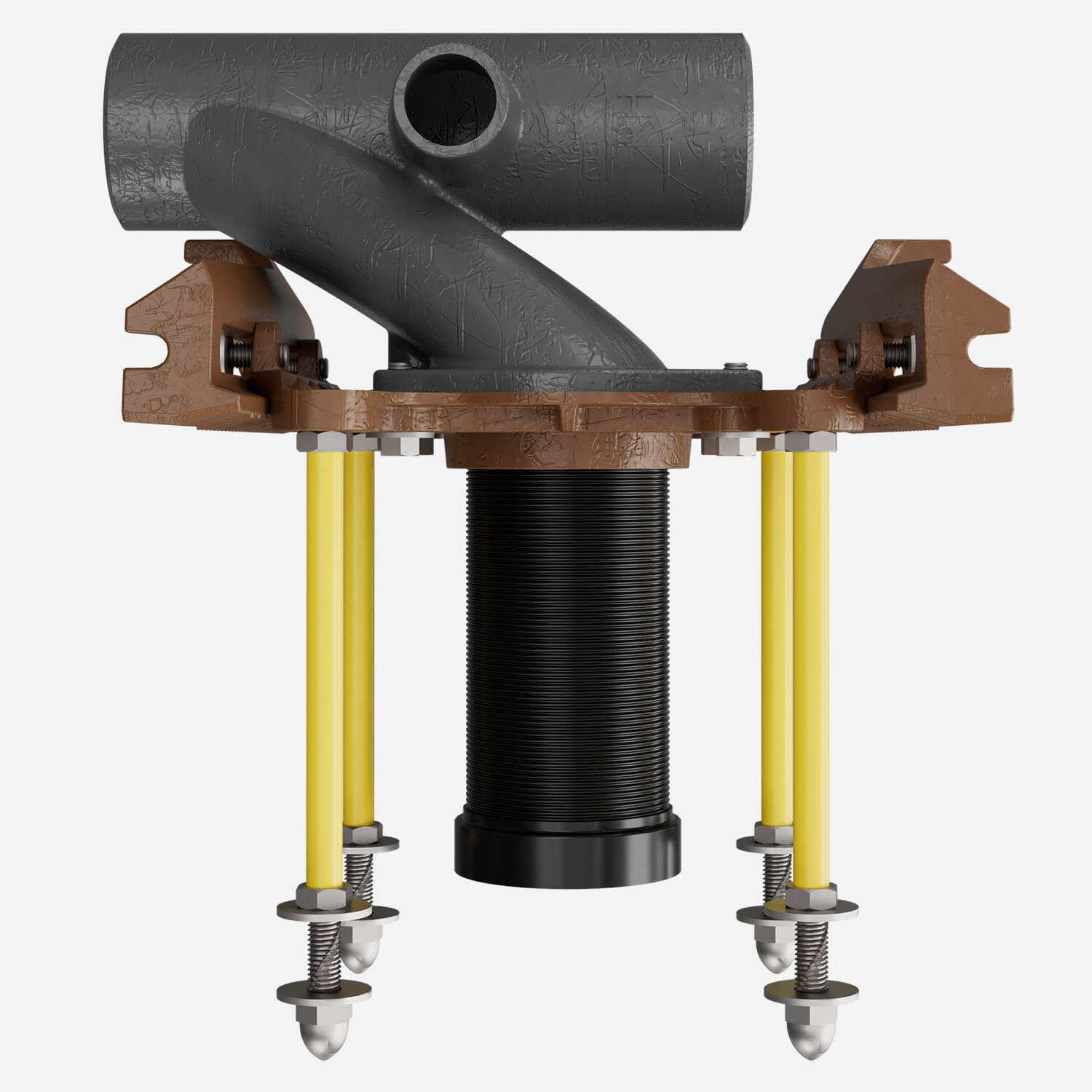

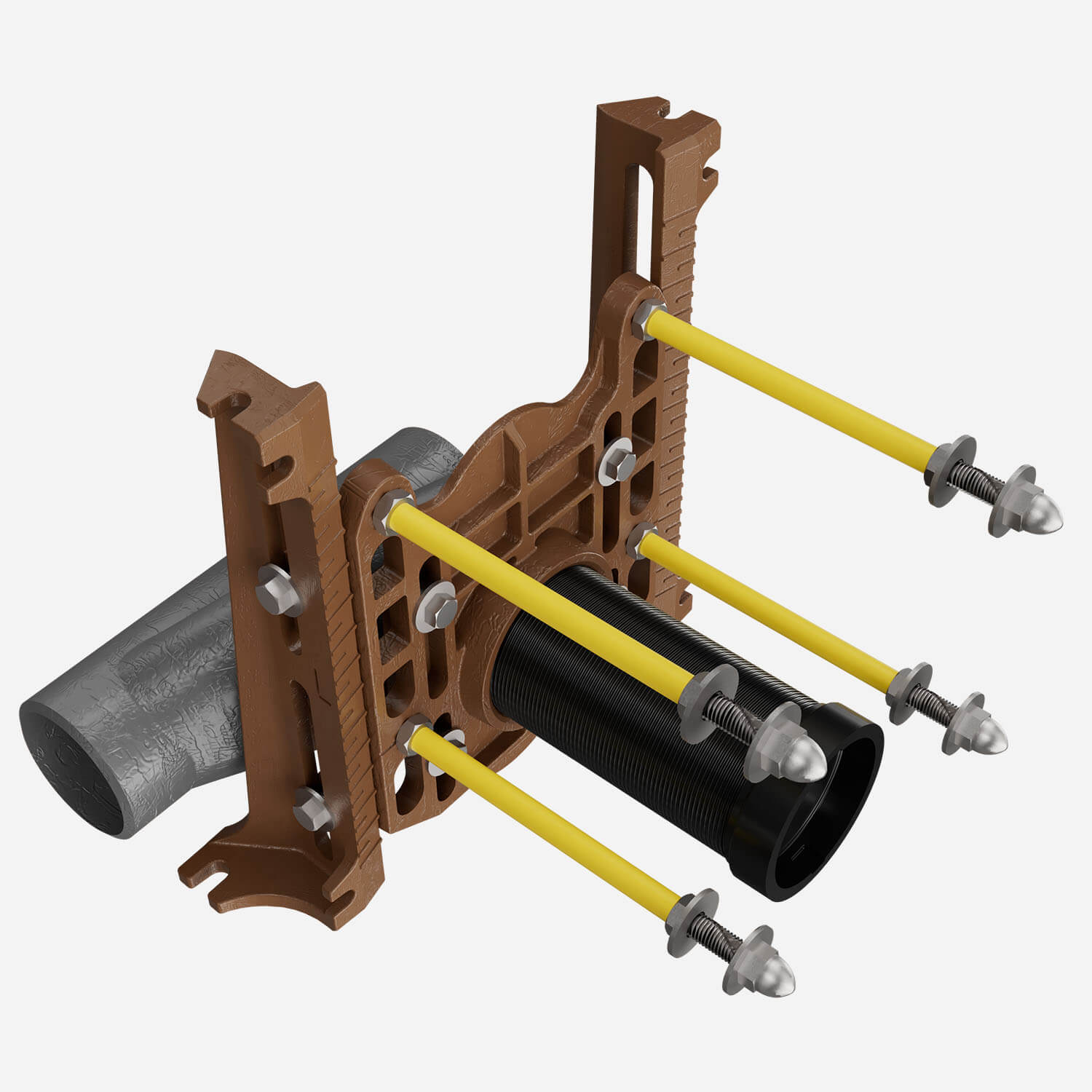

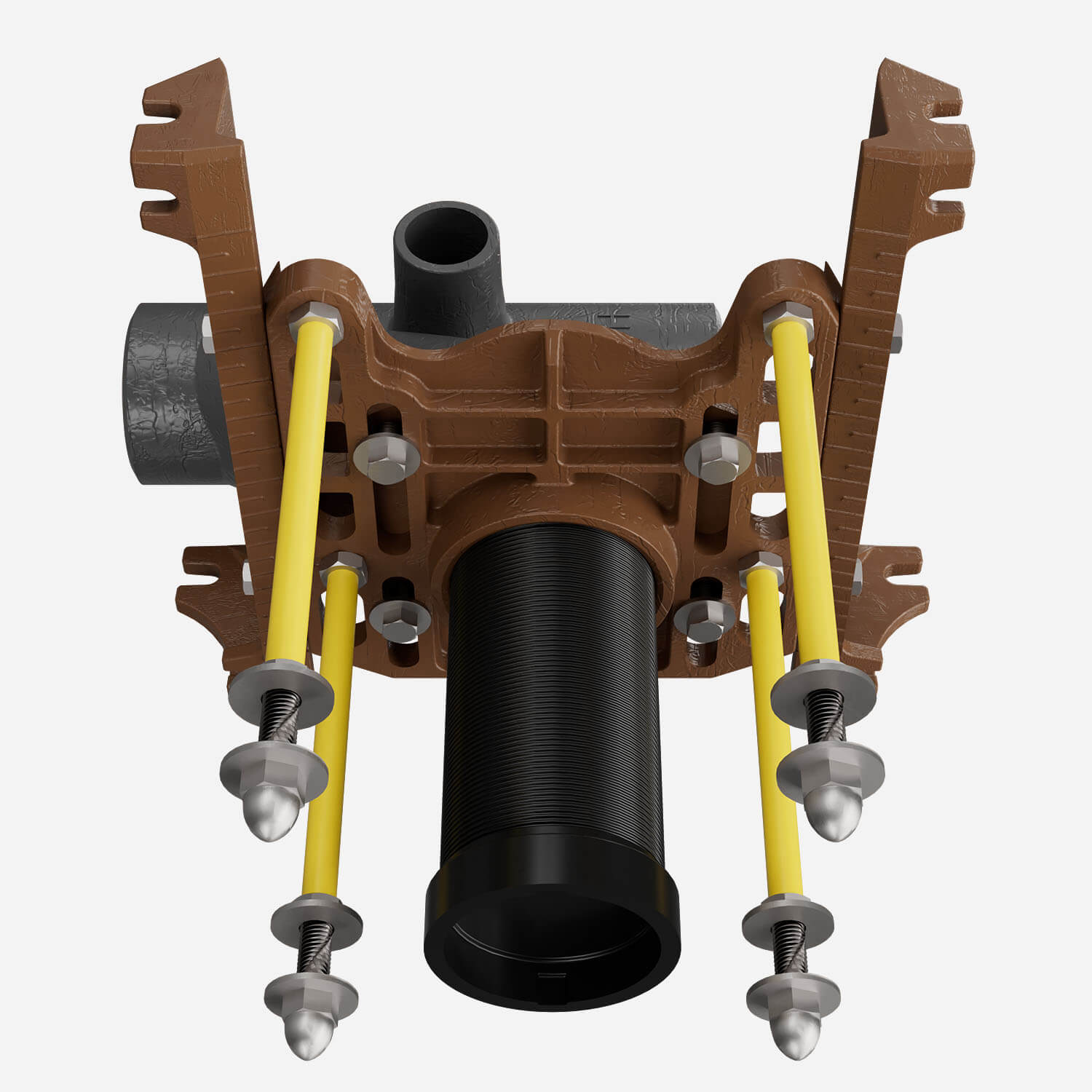

Model 0211Y-M54NW Series
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fittings
Labor Saving Narrow Wall Closet Water Closet Supports - Horizontal Fittings
- Fits into narrow chase spaces, minimum of 9" (228.6 mm) from the front of the faceplate to the back of the fitting
- No rear anchor required
- Creates more billable space for the architect
- Two anchors for install versus 3 anchors on traditional carriers
- 500 lbs (226.796 kg) load rating
- Prefab compatible with the ability to anchor angle iron or strut at top or base of leg
- Available with Face Plate, Side Mounted Base Support Assembly
- Additionally available with Adjustable Nipple, O-Ring
- Available as single-sided or double-sided (back-to-back) installations
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly [0211LY-M54NW | No-Hub Left Hand; 0211RY-M54NW | No-Hub Right Hand; 0211DY-M54NW | No-Hub Double] | 936 KB | |||
 | | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly [0211LY-M54NW, 0211RY-M54NW, 0211DY-M54NW] | 0 | 6 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0211LY-M58-M54NW, 0211RY-M58-M54NW, 0211DY-M58-M54NW] | 0 | 6 MB | ||
| | Adjustable Fixture Supports for Siphon Jet Water Closet - No-Hub Narrow Wall Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [ 0211LY-M58-M54NW, 0211RY-M58-M54NW, 0211DY-M58-M54NW] | 0 | 1 MB | ||
| | Narrow Wall Carrier Flyer (pdf) | 0 | 575 KB |
Specifications
| Benefit | Labor Saving |
Details
0211Y-NW SERIES
Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly [submittal]
0211LY-M54NW Single-Sided, Left Hand 0211RY-M54NW also available
0211DY-M54MW Double-Sided (back-to-back)

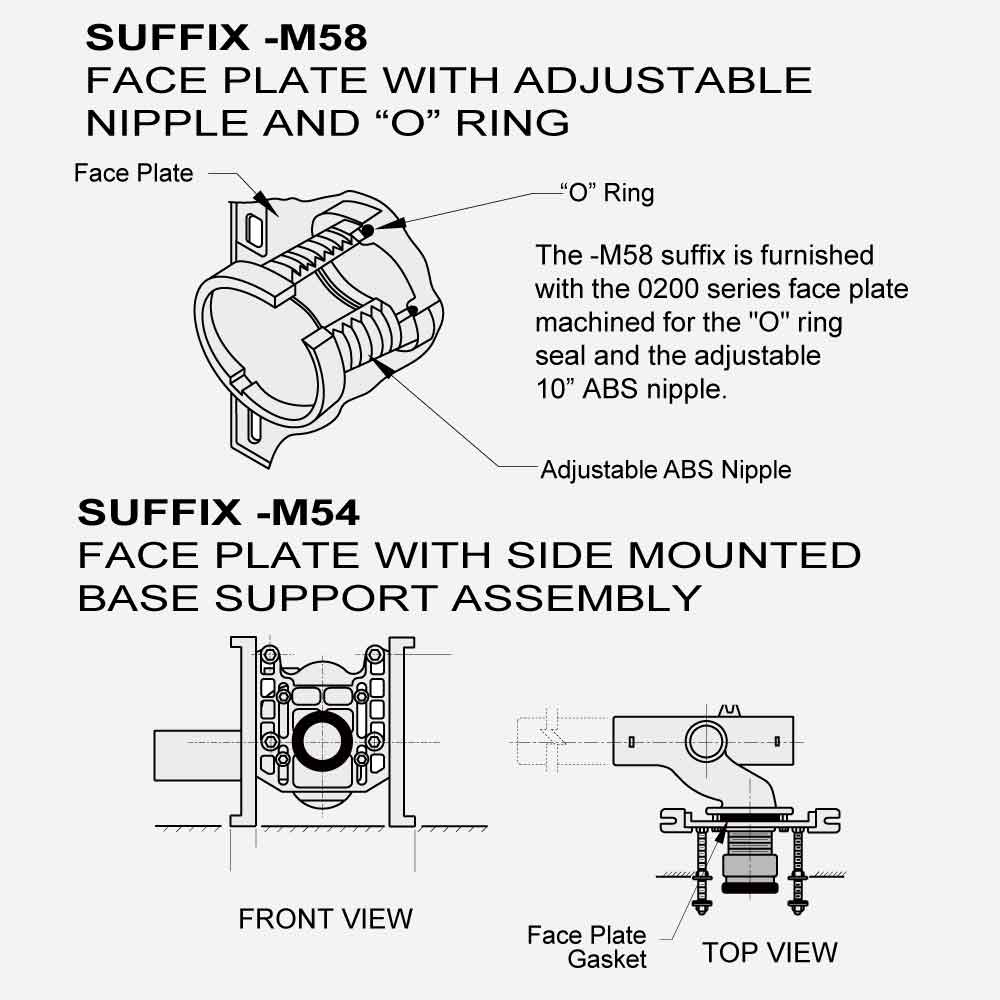

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]
0211LY-M58-M54NW Single-Sided, Left Hand 0211RY-M58-M54NW also available
0211DY-M58-M54NW Double-Sided (back-to-back)
