Name: 14 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" Square Top
Brand: Jay R. Smith Mfg. Co.
SKU: 9691-9699

Model 9691-9699

14 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" Square Top

Our 9691 Series 14 Gauge Stainless Steel floor drains are designed for installation in environments that require fixtures that help maintain consistently high levels of sanitation coupled with the ability to withstand corrosive liquids as in food handling and chemical processing plants. These 12” square top drains are available in a range of depths and options (strainer, sediment bucket, outlet connections and cover types) and offer a solution for many drainage needs.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Drawings	9691 Drain (dwg)	14 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" Square Top [With Dome Bottom Strainer 9691, 9692, 9693, 9694; With Sediment Bucket 9696, 9697, 9698,.9699]	77 KB

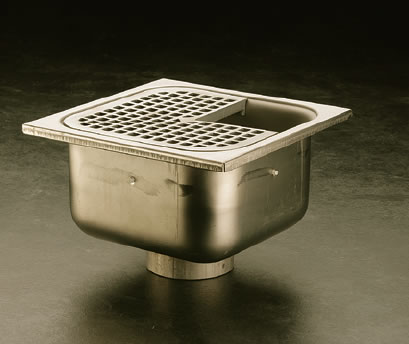

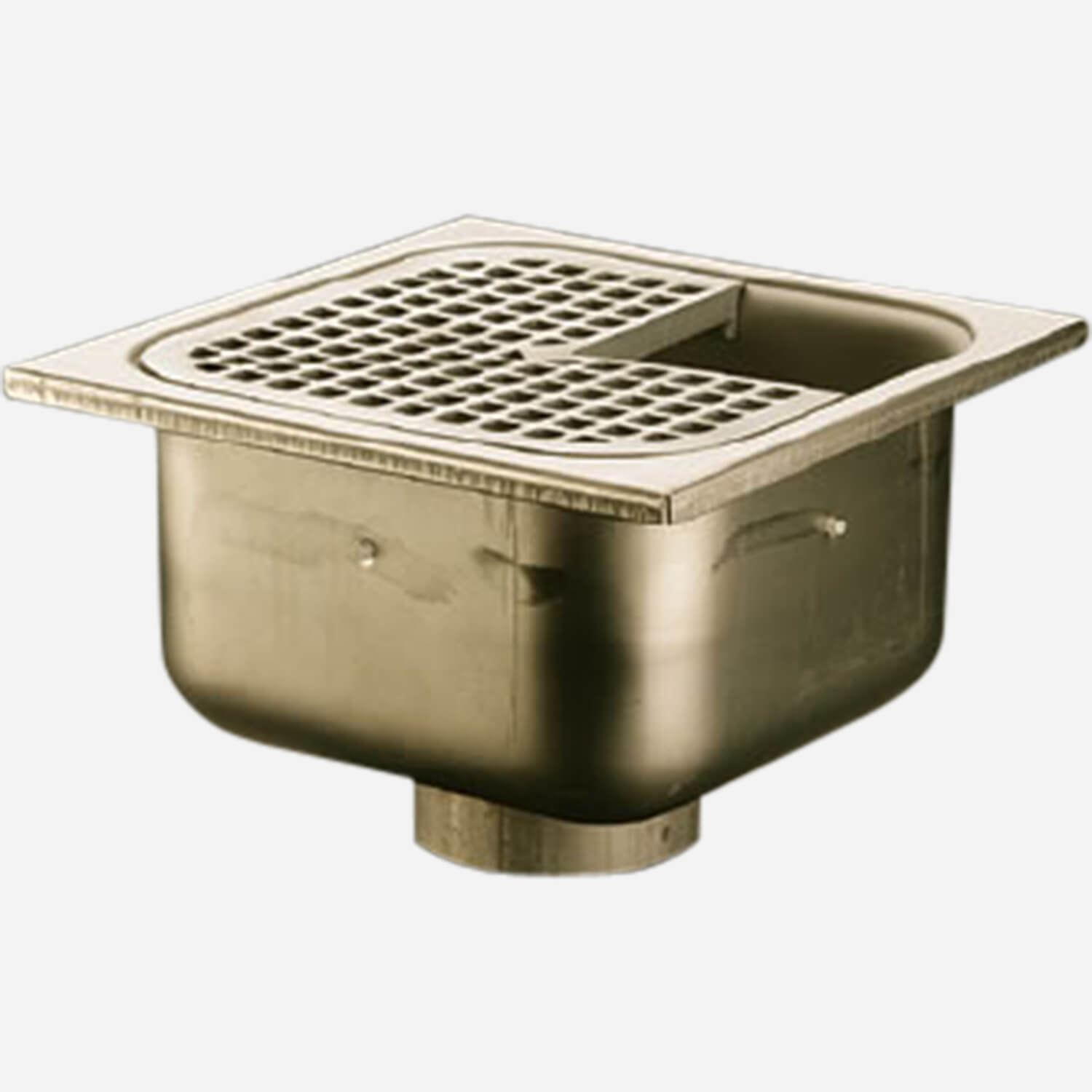

Images	9691 to 9699 - 14 Gage Stainless Steel Floor, Area and Indirect Waste Drains with 12" (304) Square Top (hi res jpg)		21 KB

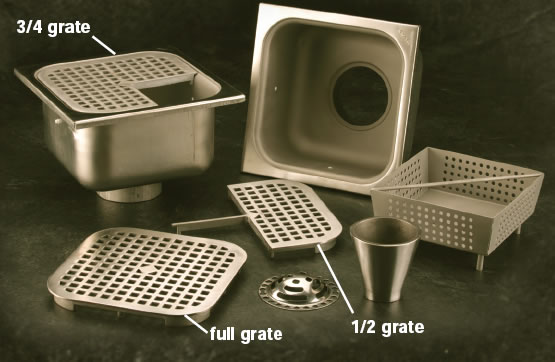

Images	9691 to 9699 - 14 Gage Stainless Steel Floor, Area and Indirect Waste Drains with 12" (304) Square Top with Options (hi res jpg)		39 KB
