Name: 13" x 10-3/4" Heavy Duty Stainless Steel Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 9755

Model 9755

13" x 10-3/4" Heavy Duty Stainless Steel Drain

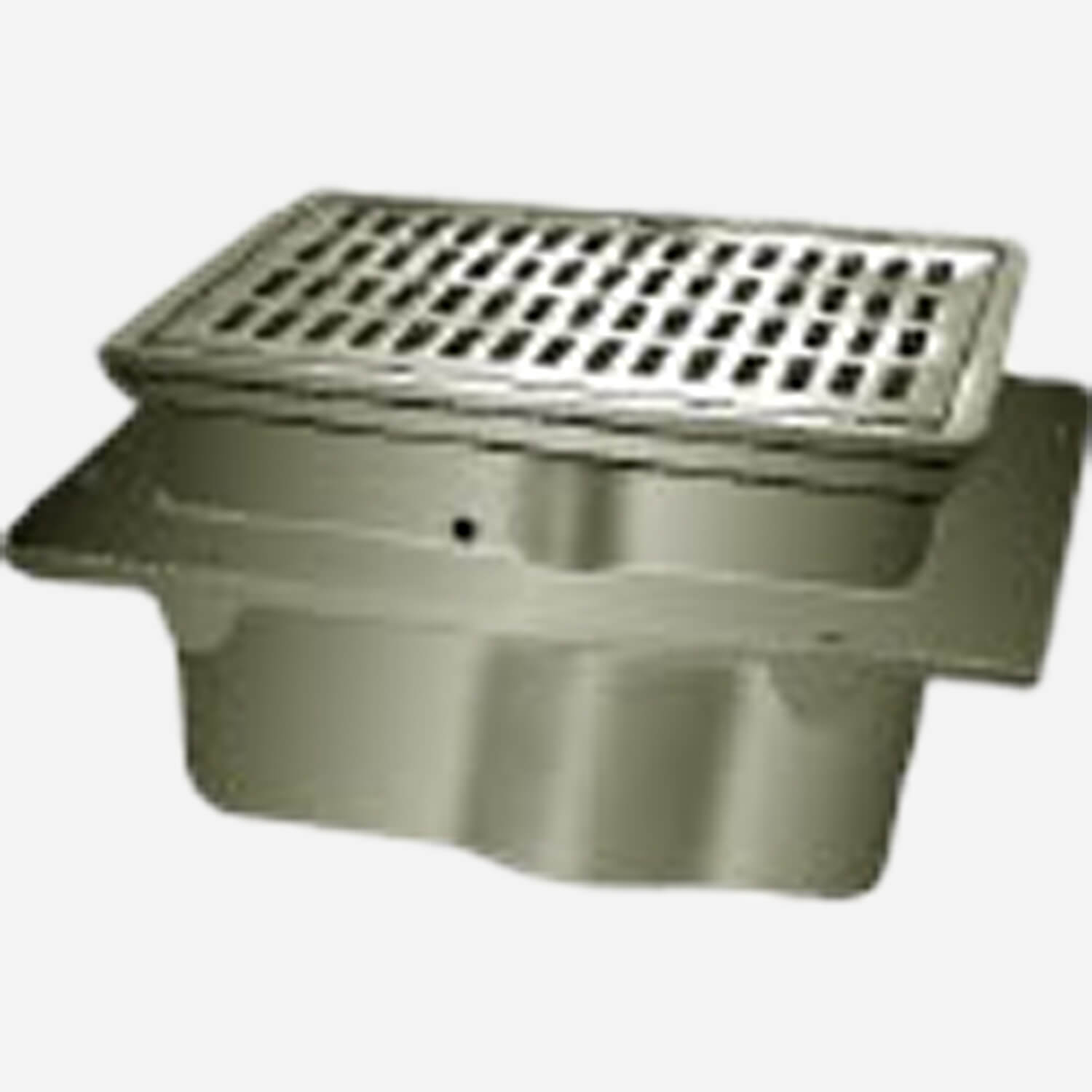

Figure 9755 is heavy duty drain body fabricated of Type 304 rough finish stainless steel. The body supports a tough, loose set bronze grate that withstands heavy static loads while permitting easy access to the stainless sediment bucket underneath. This corrosion-resistant drain is fabricated for long service life in buildings that process corrosive liquids (ie. chemical laboratories, dairies, breweries, and atomic energy and bottling plants and others). It features an offset outlet for installations that require them. The size is 10-3/4"(273 mm) x 13" (330 mm).

The drain body can be fabricated of A-27 Carbon Steel when specified with suffix -A27. The bottom outlet can be specified with Butt Weld (BW) or No-Hub (Y).

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 9755 Drain (pdf)	Special Purpose 10-3/4" x 13" Heavy Duty Stainless Steel Drain with Free Standing Sediment Bucket [9755BW \| Butt Weld Bottom Outlet; 9755Y \| No-Hub Bottom Outlet; Suffix -A27 \| Carbon Steel]	594 KB
Drawings	9755 Drain (dwg)	Special Purpose 10-3/4" x 13" Heavy Duty Stainless Steel Drain with Free Standing Sediment Bucket [9755BW \| Butt Weld Bottom Outlet; 9755Y \| No-Hub Bottom Outlet; Suffix -A27 \| Carbon Steel]	128 KB
Brochures/Flyers	Stainless Steel Drainage Products Brochure (pdf)	Stainless Steel Drainage Products	2 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Ordering	Order Guidelines for Specialties	Order Guidelines for Specialties	268 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	Stainless Steel Drainage Products Brochure (pdf)	Stainless Steel Drainage Products	2 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), 90° Side Outlet (Specify Fig. 9759), Flashing Clamp with Seepage Holes - C, Seepage Holes -WSH, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
Optional Materials	A-27 Carbon Steel Body - A27B, CF8 (Equivalent to Type 304) Stainless Steel Grate -SSG, CF8M (Equivalent to Type 316) Stainless Steel - Grate -316, Nickel Bronze Grate - NB, Stainless Steel Satin Finished Grate -SFG
Product Type	Drain

Models

9755BW | Butt Weld Bottom Outlet
9755Y | No-Hub Bottom Outlet

Available Finish
Suffix -A27 | A-27 Carbon Steel
The grate is available in various optional finishes, see submittal

13" x 10-3/4" Heavy Duty Stainless Steel Drain
