Large General Purpose Stainless Steel Roof Drain

Name: Large General Purpose Stainless Steel Roof Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 9780

Find A Representative

Figure 9780

Submittal

Submittal 9780 Roof Drain (pdf)

Model 9780

Large General Purpose Stainless Steel Roof Drain

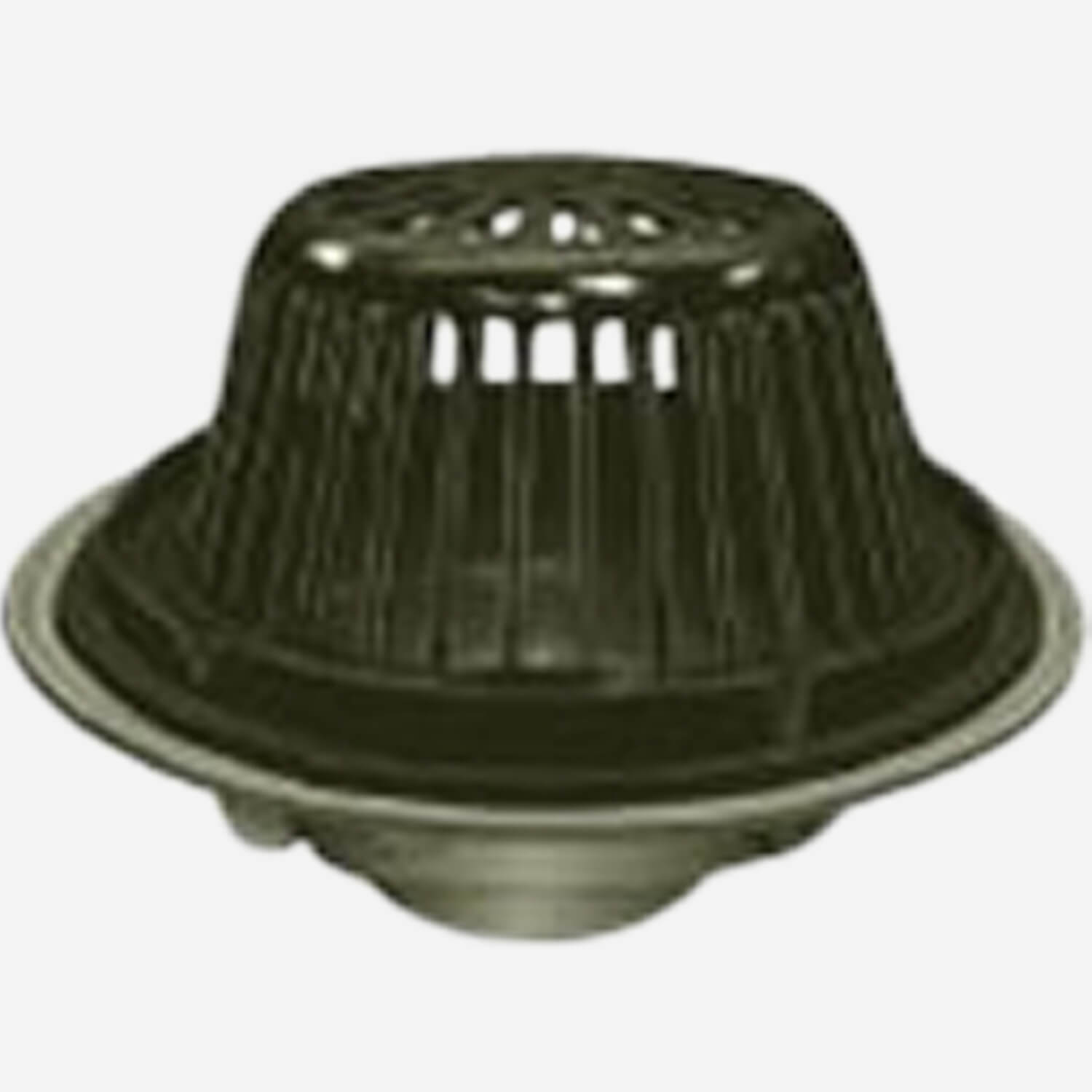

This large 15-1/4" (390) diam. CF8 rough finish stainless steel (equivalent to type 304) general purpose roof drain is designed to evacuate heavy rainfalls from flat roofs of any construction. The combination flashing clamp and gravel stop of this unit grips roof waterproofing materials without puncturing to provide a leakproof seal. The drain body and flange assembly are made of Duco coated cast iron. It protects dran lines with a polyethylene dome strainer.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 9780 Roof Drain (pdf)	Stainless Steel Roof Drain [9780-BW \| Butt Weld Bottom Outlet; 9780Y \| No-Hub Bottom Outlet; No Suffix \| CF8 Type 304 Stainless Steel; Suffix -A27 \| A-27 Carbon Steel; Suffix -316 \| CF8M Type 316 Stainless Steel]	537 KB
Drawings	9780 Roof Drain (dwg)	Stainless Steel Roof Drain [9780-BW \| Butt Weld Bottom Outlet; 9780Y \| No-Hub Bottom Outlet; No Suffix \| CF8 Type 304 Stainless Steel; Suffix -A27 \| A-27 Carbon Steel; Suffix -316 \| CF8M Type 316 Stainless Steel]	68 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Ordering	Order Guidelines for Specialties	Order Guidelines for Specialties	268 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	90° Side Outlet (Specify Fig. 9759) - for Side, Secured Dome -SD, Underdeck Clamp -C, Vandal Proof - Dome - U, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
Optional Materials	A-27 Carbon Steel Body - A27B, A-27 Carbon Steel Clamping Collar -A27C, A-27 Carbon Steel Dome -A27D, Cast Iron Dome -CID, CF8M (Equivalent to Type 316) Stainless Steel -316 - Body, CF8M (Equivalent to Type 316) Stainless Steel Clamping Collar -316C, CF8M (Equivalent to Type 316) Stainless Steel Dome -316D
Product Type	Roof Drain
