12" General Purpose Stainless Steel Floor Drains
This 14-Gauge, Type 304 Stainless Steel General Purpose floor drain is designed for installation in environments that require fixtures to maintain consistently high sanitation standards and to withstand corrosive liquids (such as in food handling or chemical processing plants). This model is protected from larger debris by an attractive 12” loose-set medium-duty rim-flow stainless steel cover in round or square configurations. A USDA-compliant model is also available.
The cylindrical drain body is 14 gauge, Type 304 Stainless Steel. Various depths are available with various grate tops.
Available Figure Series

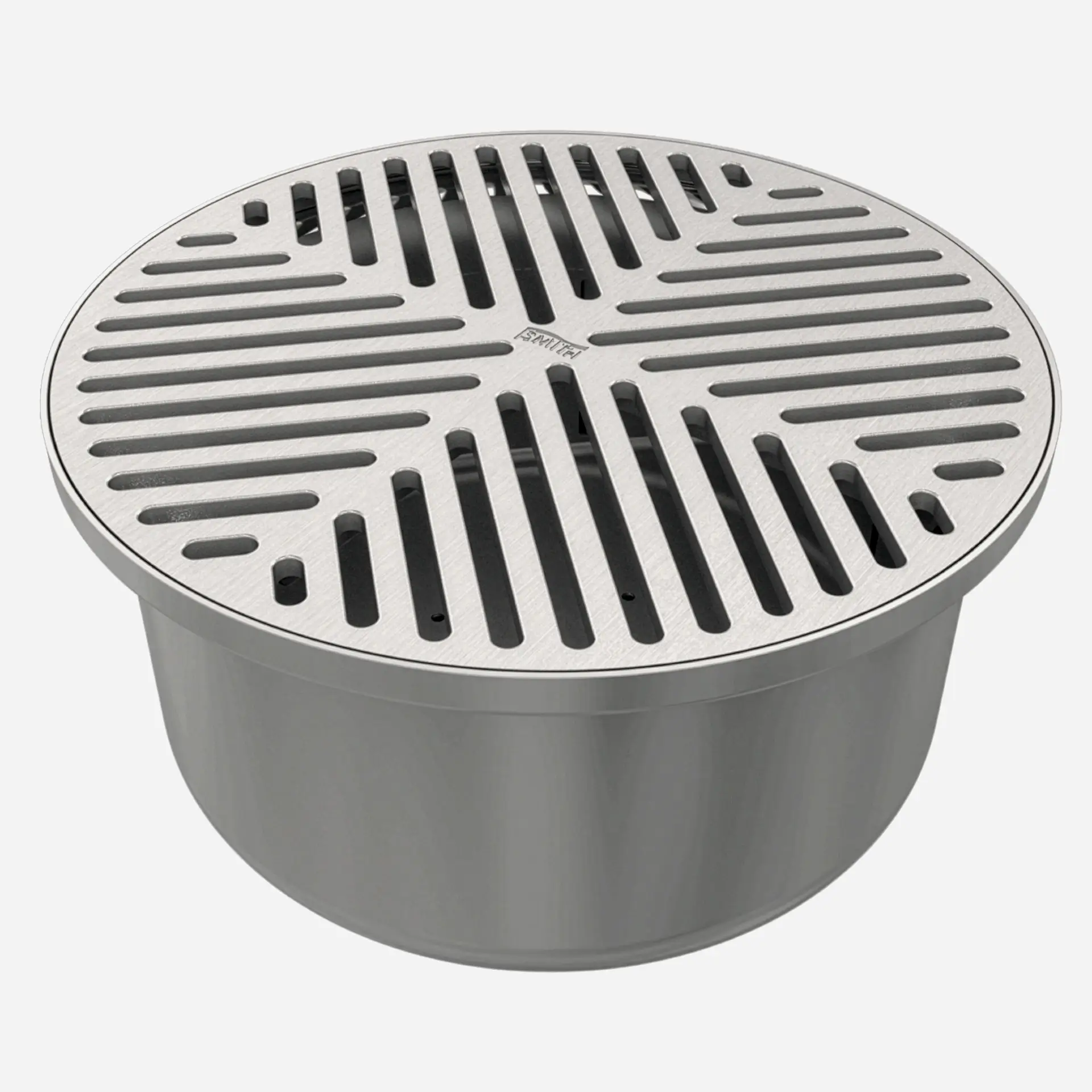

9630 Series | Slotted Round Top

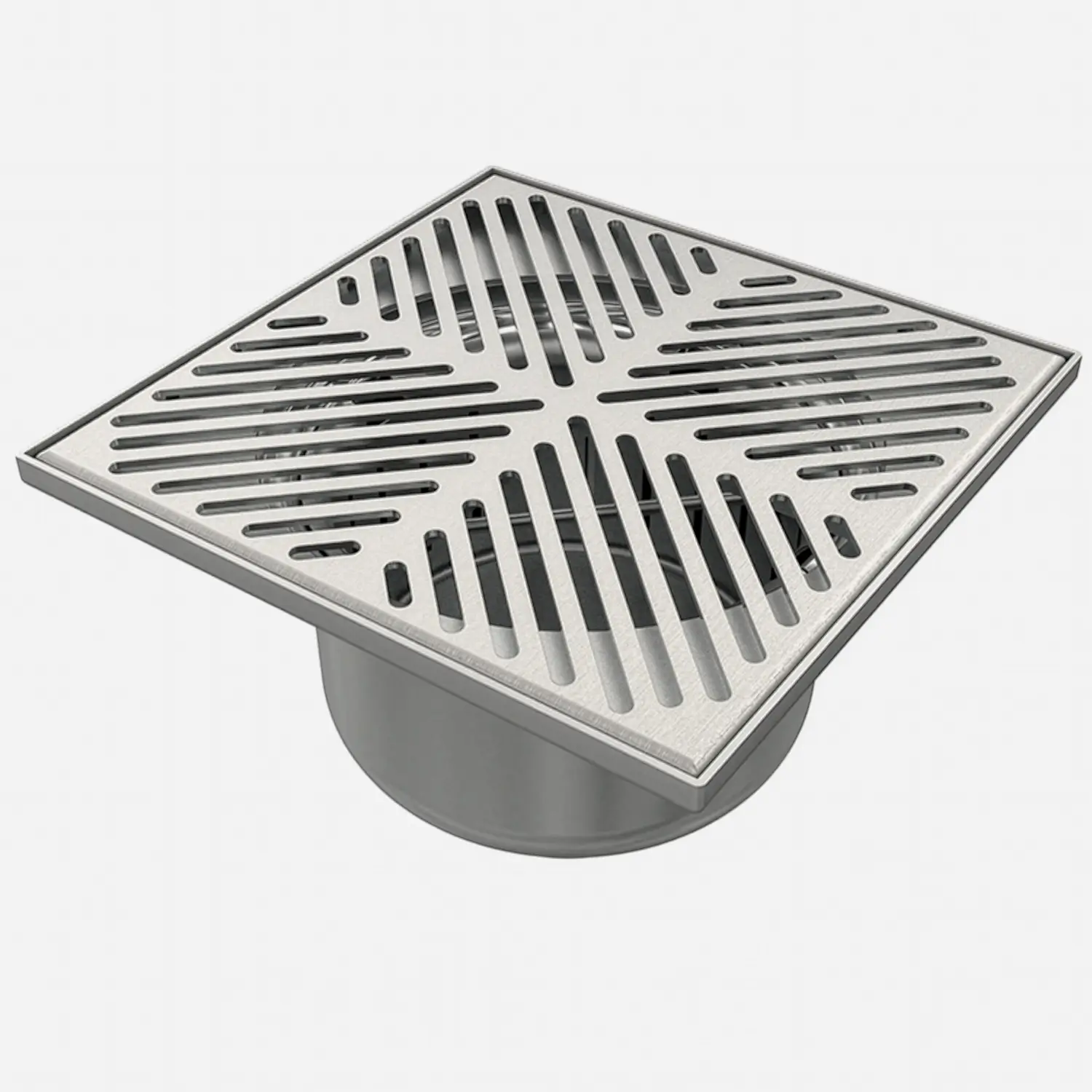

9630-S Series | Slotted Square Top

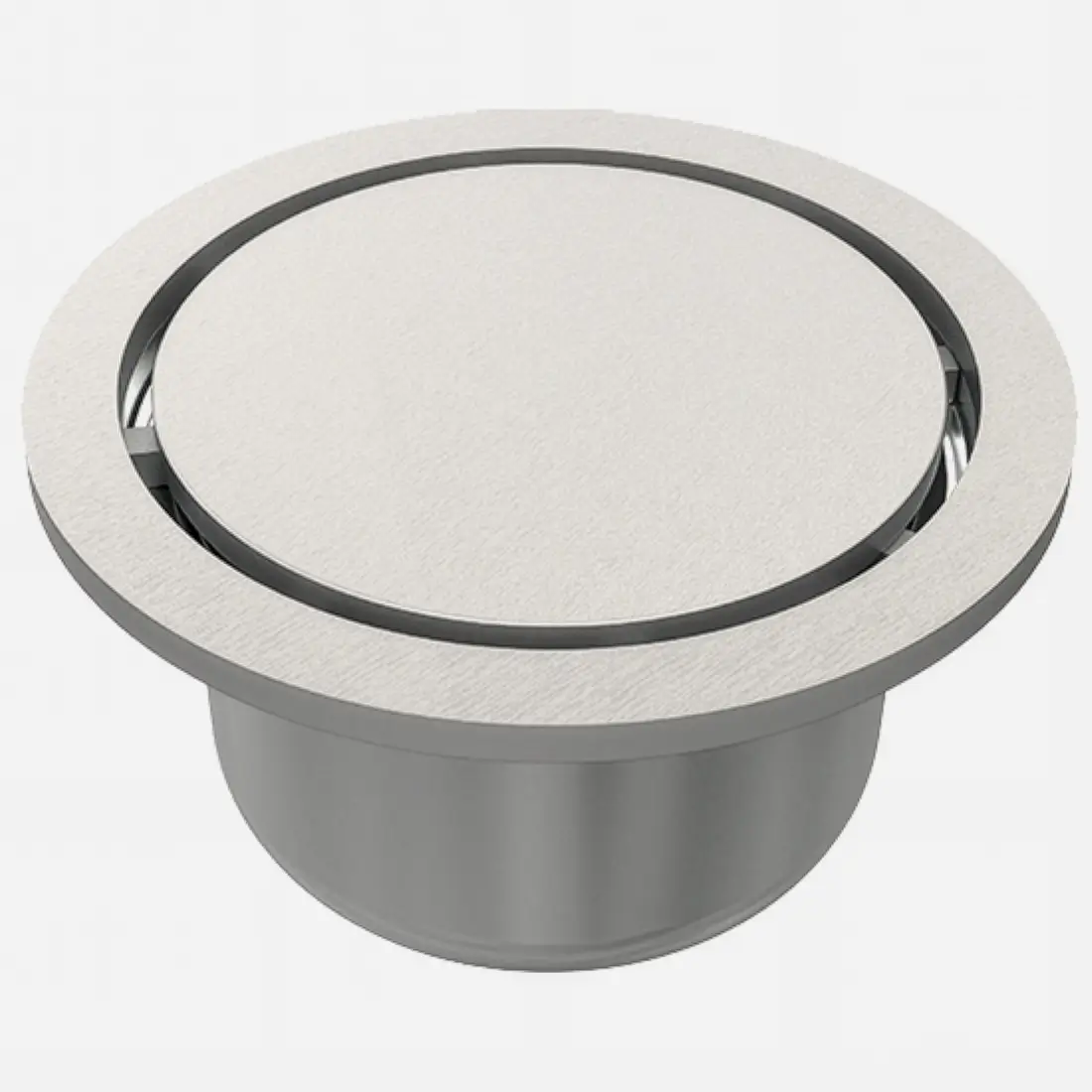

9630-RF Series | Special Duty Round Rim Flow Grate

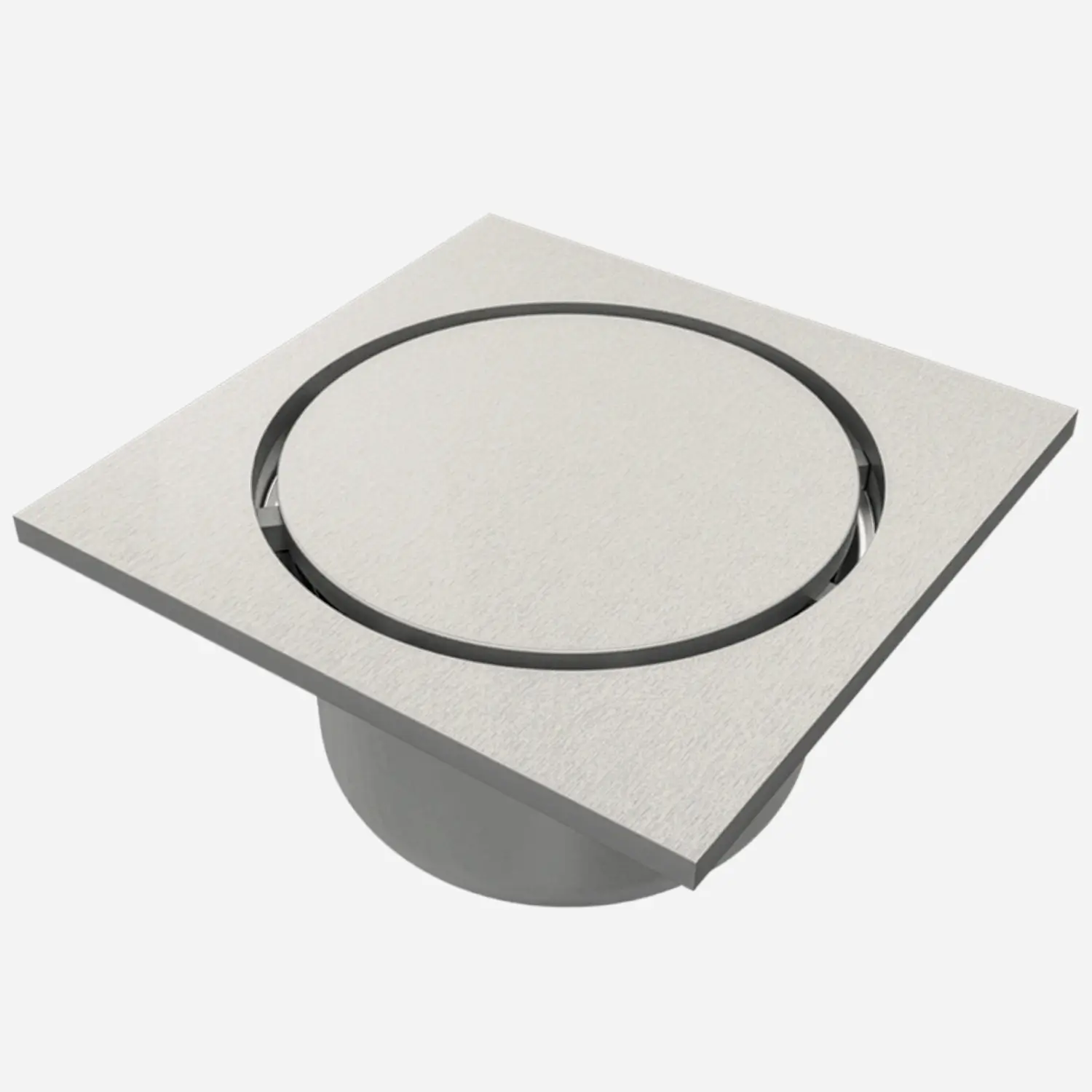

9630-SRF Series | Special Duty Square Rim Flow Grate

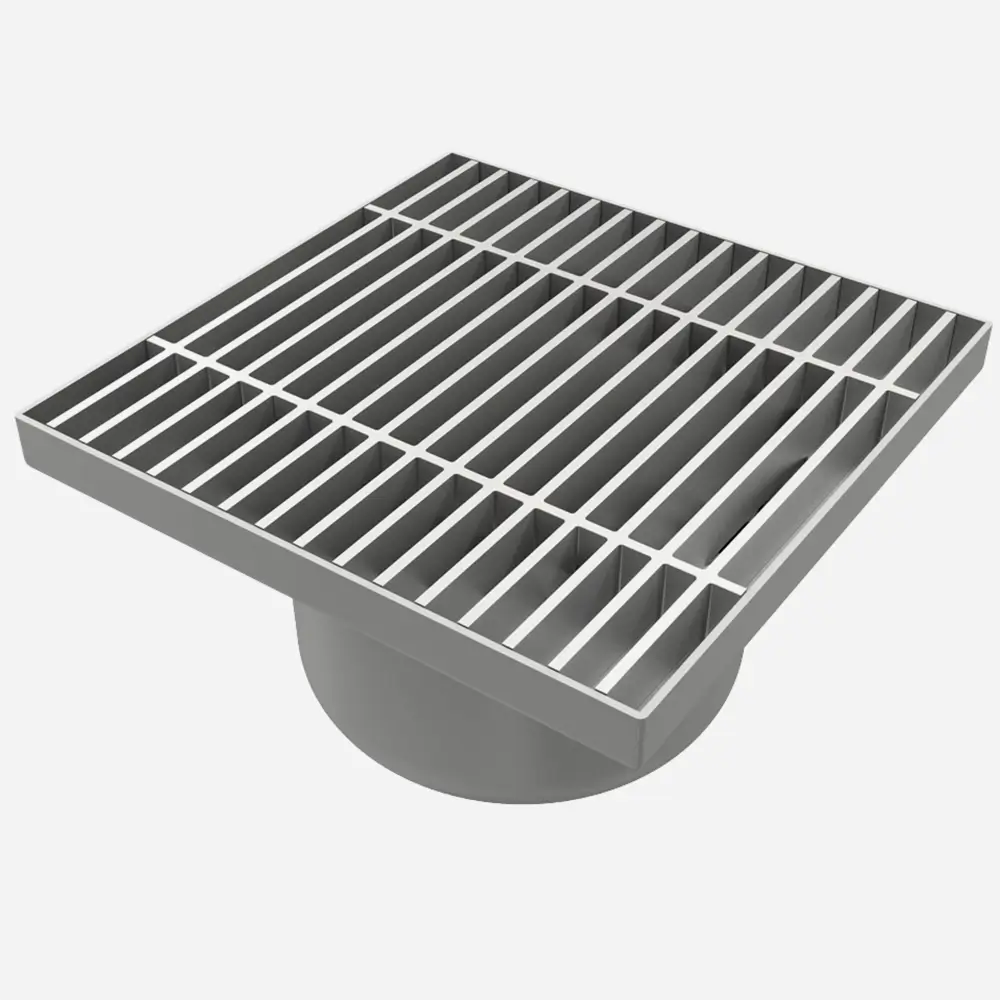

9630-SBG Series | Square Top with Bar Grate
Refer to the catalog page and/or "Figures" Section below for more information.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 12" (305 mm) Round Top [4 inch (100 mm) depth 9630BW | Buttweld Outlet; 9630T | Threaded Outlet; 9630Y | No-Hub Outlet; 6 inch (150 mm) depth 9631BW | Buttweld Outlet; 9631T | Threaded Outlet; 9631Y | No-Hub Outlet; 8 inch (205 mm) depth 9632BW | Buttweld Outlet; 9632T | Threaded Outlet; 9632Y | No-Hub Outlet; 10 inch (255 mm) depth 9633BW | Buttweld Outlet; 9633T | Threaded Outlet; 9633Y | No-Hub Outlet] available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes | 2 MB | ||
 | | 45 KB | |||
| | 45 KB | |||
| | 67 KB | |||
 | | 276 KB | |||
| | 444 KB | |||
| | 508 KB | |||
| | 352 KB | |||
| | 280 KB | |||
| | 1 MB | |||
| | 12" (305 mm) Round Top [4 inch (100 mm) depth 9630BW | Buttweld Outlet; 9630T | Threaded Outlet; 9630Y | No-Hub Outlet; 6 inch (150 mm) depth 9631BW | Buttweld Outlet; 9631T | Threaded Outlet; 9631Y | No-Hub Outlet; 8 inch (205 mm) depth 9632BW | Buttweld Outlet; 9632T | Threaded Outlet; 9632Y | No-Hub Outlet; 10 inch (255 mm) depth 9633BW | Buttweld Outlet; 9633T | Threaded Outlet; 9633Y | No-Hub Outlet] available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes | 2 MB | ||
| | 1 MB | |||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Competitive Cross Reference for Stainless Steel Drains (pdf) | 68 KB | ||
| | NSF Certified Stainless Steel Drains (pdf) | 1009 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB |
Specifications
| Variations | Anchor Flange -F, Flange & Flashing Clamp -FC, Sediment Bucket -B, Dome Bottom Strainer -DBS, Vandal Proof Grate -U, 1/2"(13) Trap Primer Connection -P050, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Type 316 Stainless Steel -316 |
| Compliance/Certifications | NSF |
Models
12" General Purpose Stainless Steel Floor Drain
9630 Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4 inch (100 mm) depth 9630BW | Buttweld Outlet 9630T | Threaded Outlet 9630Y | No-Hub Outlet; 6 inch (150 mm) depth 9631BW | Buttweld Outlet; 9631T | Threaded Outlet; 9631Y | No-Hub Outlet; |
8 inch (205 mm) depth 10 inch (255 mm) depth |
9630-S Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-3/4 inch (121 mm) depth |
8-3/4 inch (222 mm) depth
|
9630-RF Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-1/2 inch (114 mm) depth 6-1/2 inch (165 mm) depth |
8-1/2 inch (216 mm) depth |
9630-SRF Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-1/2 inch (114 mm) depth 6-1/2 inch (165 mm) depth |
8-1/2 inch (216 mm) depth
|
9630-SBG Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
5-1/4 inch (133 mm) depth |
9-1/4 inch (235 mm) depth 9632BW-SBG | Buttweld Outlet 9632T-SBG | Threaded Outlet 9632Y-SBG | No-Hub Outlet |
