Name: Round Solid Scoriated Cover and Closure Plug for Floor Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 9720

Model 9720

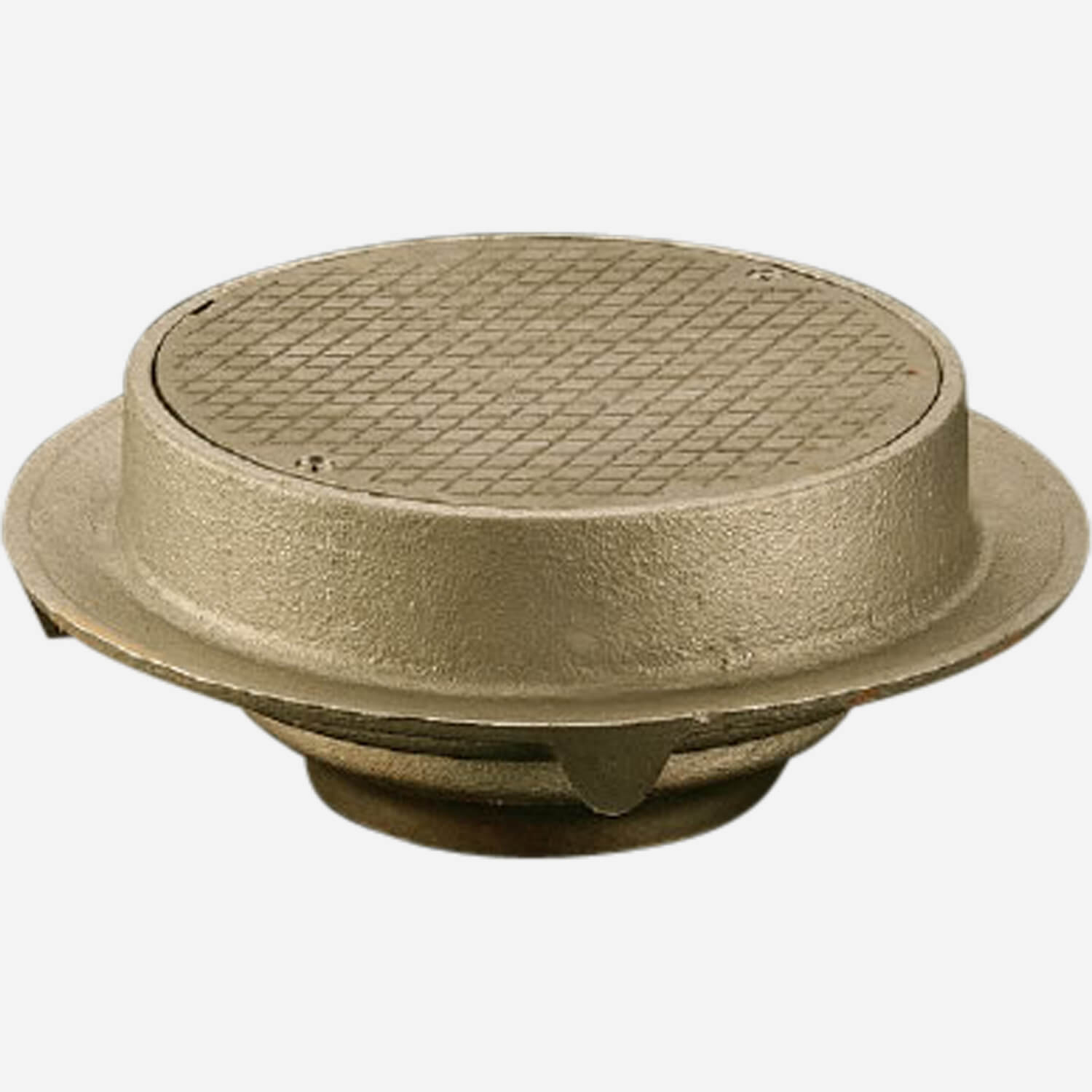

Round Solid Scoriated Cover and Closure Plug for Floor Drains

The CF8 rough finish stainless steel (equivalent to type 304) body, cover and closure plug of this unit is designed to prevent sewer gases from entering through the drain in buildings that process corrosive liquids (ie. chemical laboratories, dairies, breweries, and atomic energy and bottling plants). The 8-1/2” (215) diam. solid scoriated cover is engineered to withstand heavy traffic.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 9720 Drain	Submittal 9720 Drain	420 KB
Drawings	DWG 9720 Drain	DWG 9720 Drain	50 KB
Brochures/Flyers	Stainless Steel Drainage Products Brochure (pdf)	Stainless Steel Drainage Products	2 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Images	9720 - 8 1/2" Round Special Purpose Floor Drain with Solid Scoriated Cover and Closure Plug for Medium Duty Use (hi res jpg)		34 KB

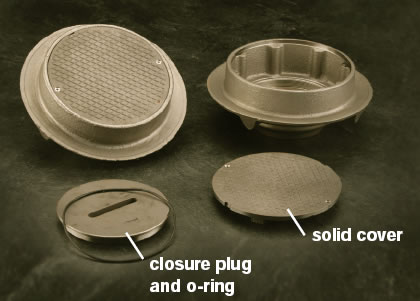

Images	9720 - 8 1/2" Round Special Purpose Floor Drain with Solid Scoriated Cover and Closure Plug for Medium Duty Use with Options (hi res jpg)		23 KB
Ordering	Order Guidelines for Specialties	Order Guidelines for Specialties	268 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	Stainless Steel Drainage Products Brochure (pdf)	Stainless Steel Drainage Products	2 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	4"(100) Extension -E04, Plastic Closure Plug and Gasket -XPP, Closure Plug with 3/4"(19) Test Plug -TP (Specify Material), Flashing Clamp with Seepage Holes - C, Satin Finish Top - SF, Seepage Holes -WSH, Vandal Proof -U, 90° Side Outlet (Specify Fig. 9759), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
Optional Materials	A-27 Carbon Steel Body - A27B, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B
Product Type	Drain

Round Solid Scoriated Cover and Closure Plug for Floor Drains
