Name: Floor Drains with Adjustable Strainer Head
Brand: Jay R. Smith Mfg. Co.
SKU: 9700

Model 9700

Floor Drains with Adjustable Strainer Head

Our 14 Gauge, Type 304 Stainless Steel General Purpose floor drain is designed for installation in environments that require fixtures that help maintain consistently high sanitation standards and that can durably withstand corrosive liquids such as in food handling and chemical processing plants. This model has an adjustable strainer head making it easy to level the top with adjacent flooring and an integral collar and flashing clamp for a watertight seal with flooring materials.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
BIM/CAD/Revit	DWG 9700 Drain	DWG 9700 Drain	69 KB
Images	9700 - General Purpose Floor Drain with Adjustable Strainer Head for Light Duty Use (hi res jpg)		35 KB

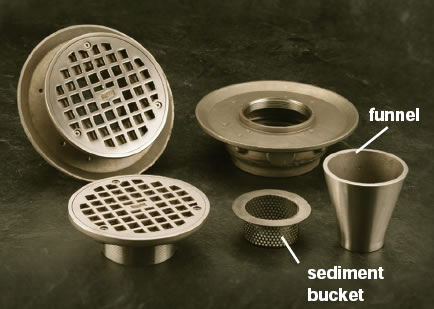

Images	9700 - General Purpose Floor Drain with Adjustable Strainer Head for Light Duty Use with Options (hi res jpg)		29 KB
Submittals	Submittal 9700 Drain	Submittal 9700 Drain	446 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	227 KB
Brochures/Flyers	Stainless Steel Drainage Products Brochure (pdf)	Stainless Steel Drainage Products	2 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Ordering	Order Guidelines for Specialties	Order Guidelines for Specialties	268 KB
BIM/CAD/Revit	RFA 9700 Drain	RFA 9700 Drain	252 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Flashing Clamp with Seepage Holes - C, Seepage Holes -WSH, Solid Cover -SC, Vandal Proof Grate - U, 4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), 90° Outlet (Specify Fig. 9759), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
Optional Materials	A-27 Carbon Steel Body - A27B, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Nickel Bronze Strainer -NB
Product Type	Drain
