Model 9710 & 9715
Medium Duty Top Floor Drain
The CF8 rough finish stainless steel (equivalent to type 304) bodies and loose set non-tilt grates in our 9710 and 9715 Medium Duty Top Floor Drains resist corrosive liquids found in chemical laboratories, dairies, breweries, and atomic energy and bottling plants while helping to maintain high sanitation standards. CF8 Stainless Steel also accommodates machining for threaded outlets, tops, flashing clamps, plugs, and strainers that are offered as options with these drains. A solid top variation that allows placement of drains for future use is also available.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top [Figure 9710 | Bottom Outlet; 9715 | Side Outlet;] | 71 KB | ||
 | | Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom Outlet | 332 KB | ||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
 | | Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom Outlet -- image is drain only | 35 KB | ||

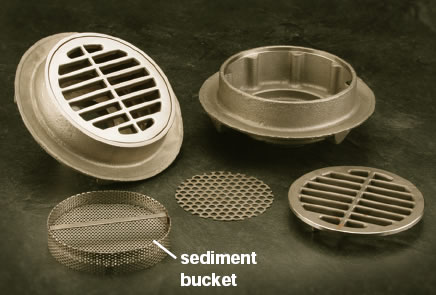

| | Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom Outlet -- shown with optional accessories | 29 KB | ||
| | Order Guidelines for Specialties | 268 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB |
Specifications
| Variations | 4"(100) Extension -E04, 4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), Closure Plug and Gasket Available in Stainless Steel -XPSS or Plastic -XPP, Closure Plug with 3/4"(19) Test Plug -TP (Specify Material), Flashing Clamp with Seepage Holes - C, Flat Bottom Strainer -FBS, Satin Finish Top - SF, Sediment Bucket -B, Seepage Holes -WSH, Solid Scoriated Cover -SC, Vandal Proof Grate - U, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | A-27 Carbon Steel Body - A27B, Cast Iron Grate -CIG, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Nickel Bronze Grate - NB, Polished Bronze Grate - PB |
| Product Type | Drain |
