14" General Purpose Stainless Steel Floor Drain
This 14” (356) General Purpose Stainless Steel Floor Drain is designed for installation in environments that require consistently high levels of sanitation and materials that can durably withstand corrosive liquids (such as food handling or chemical processing plants). The cylindrical drain body is 14 gauge, Type 304 Stainless Steel. Various depths are available with various grate tops.
Available Models

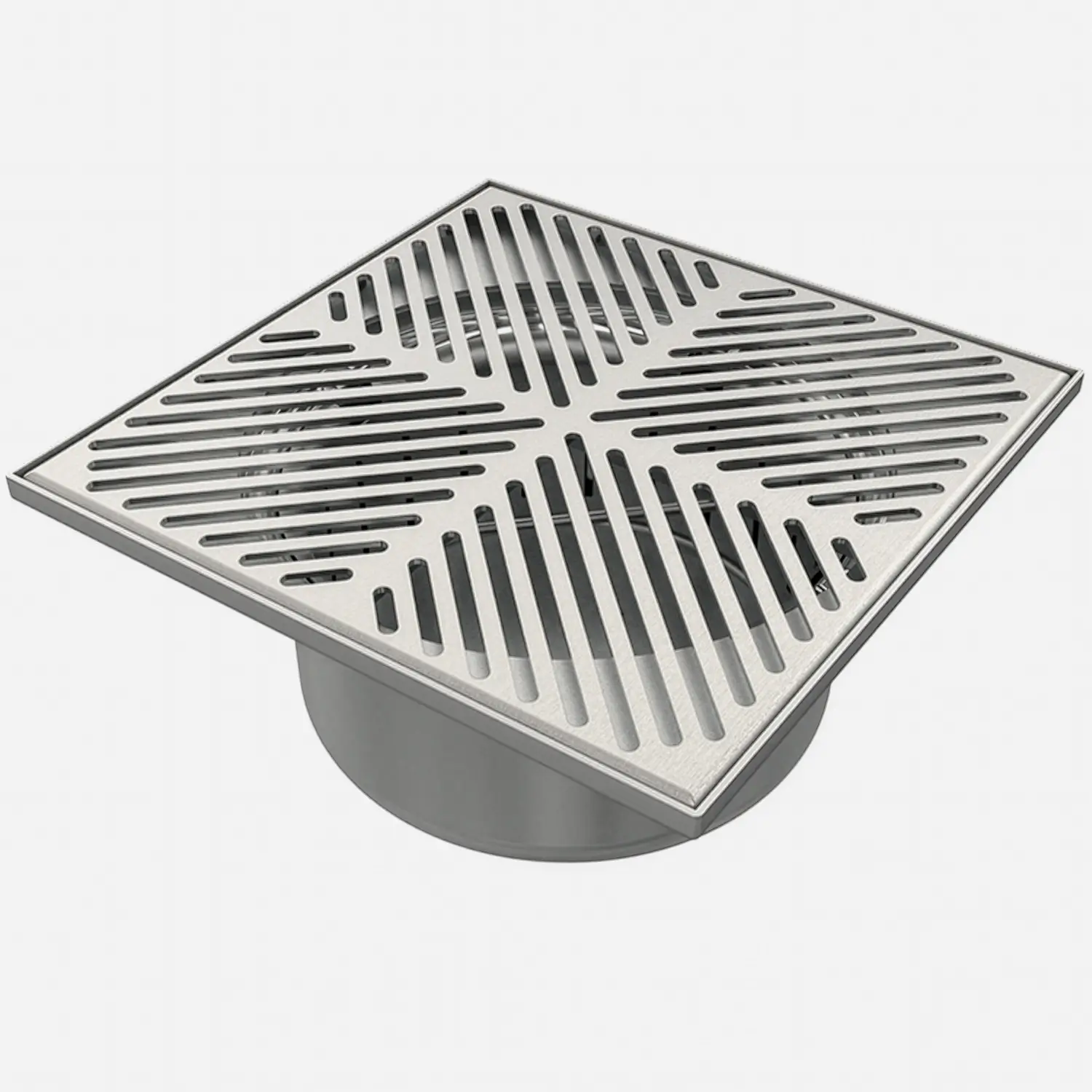

9635-S Series | Slotted Square Top

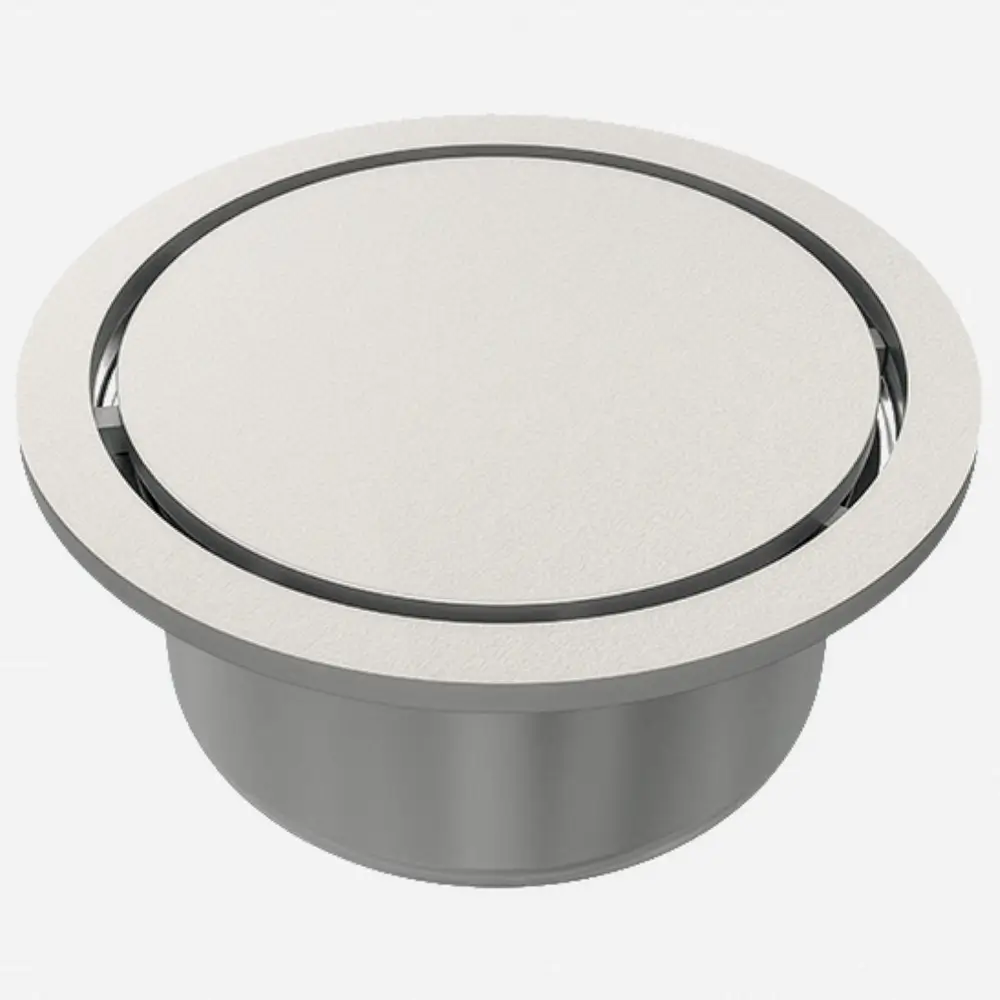

9635-RF Series | Special Duty Round Rim Flow Grate

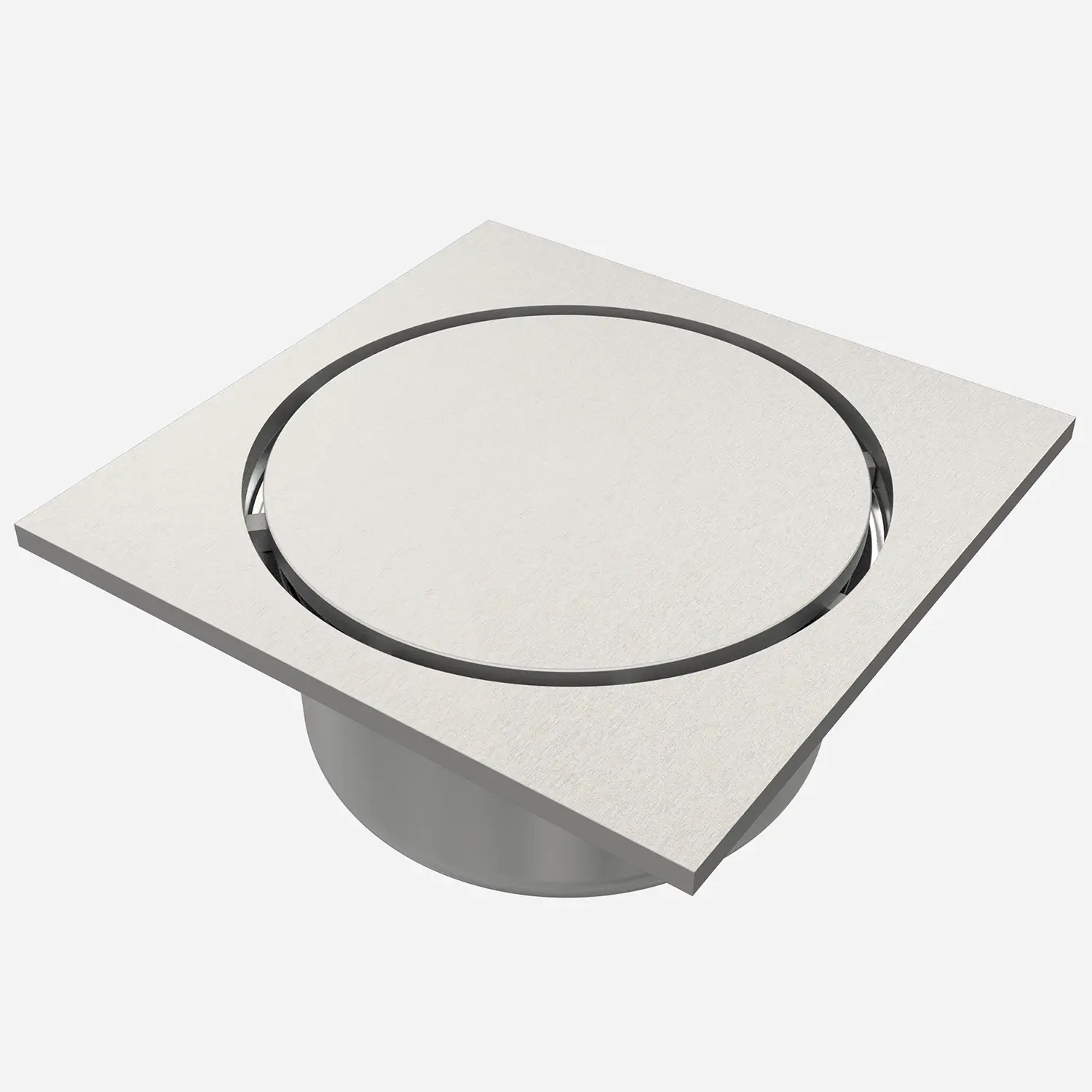

9635-RFS Series | Special Duty Square Rim Flow Grate

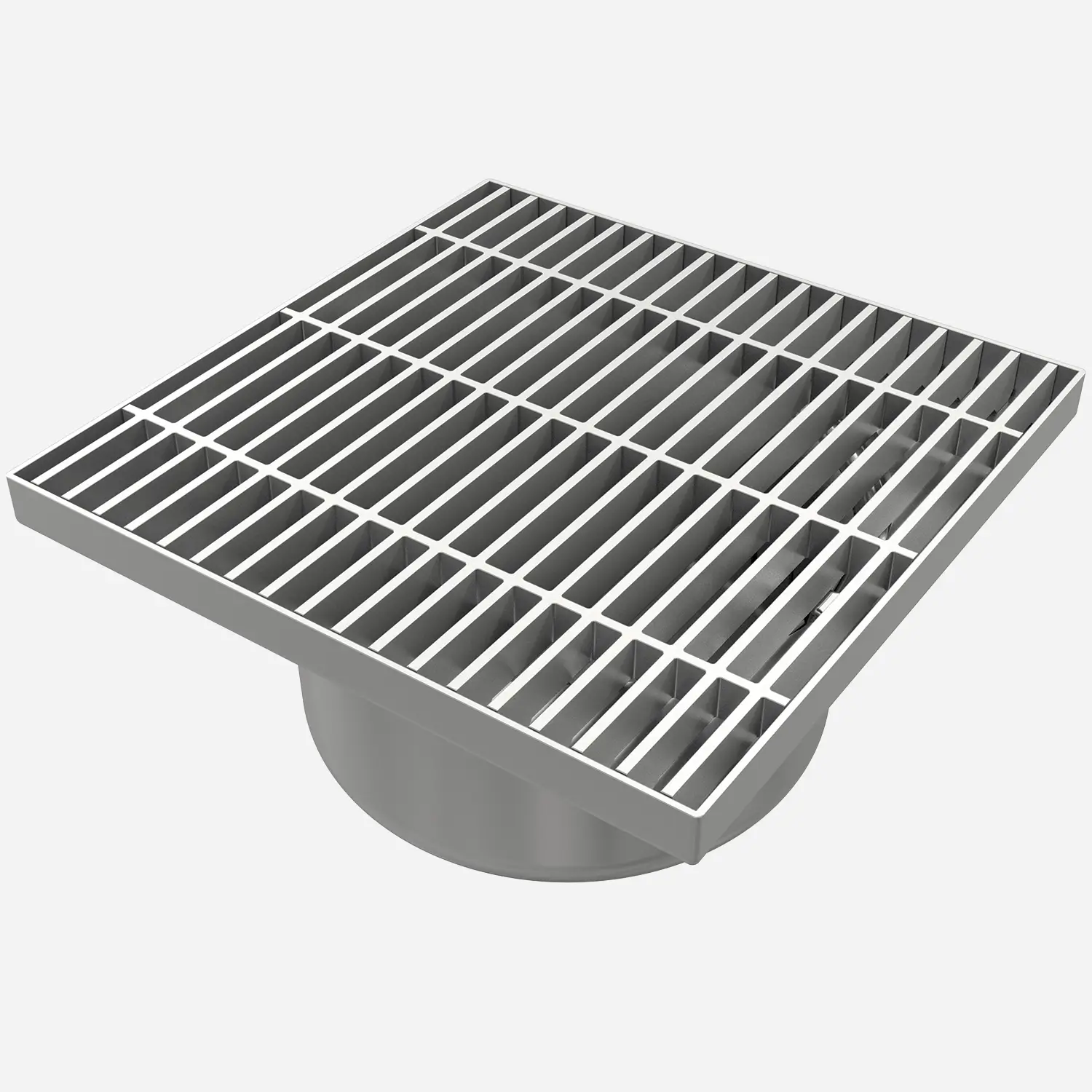

9635-SBG Series | Square Top with Bar Grate
Refer to the catalog page and/or "Figures" Section below for more information.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 14 inch (356 mm) Square Top [4-3/4 inch (121 mm) depth 9635BW-S | Buttweld Outlet; 9635T-S | Threaded Outlet; 9635Y-S | No-Hub Outlet; 6-3/4 inch (171 mm) depth 9636BW-S | Buttweld Outlet; 9636T-S | Threaded Outlet; 9636Y-S | No-Hub Outlet; 8-3/4 inch (222 mm) depth 9637BW-S | Buttweld Outlet; 9637T-S | Threaded Outlet; 9637Y-S | No-Hub Outlet; 10-3/4 inch (273 mm) depth 9638BW-S | Buttweld Outlet; 9638T-S | Threaded Outlet; 9638Y-S | No-Hub Outlet] available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes | 1 MB | ||
 | | 45 KB | |||
| | 66 KB | |||
| | 78 KB | |||
| | 45 KB | |||
 | | 636 KB | |||
| | 404 KB | |||
| | 564 KB | |||
| | 967 KB | |||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Competitive Cross Reference for Stainless Steel Drains (pdf) | 68 KB | ||
| | NSF Certified Stainless Steel Drains (pdf) | 1009 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Stainless Steel Drainage Products | 3 MB | ||
| | 2 MB |
Specifications
| Variations | Anchor Flange -F, Flange & Flashing Clamp -FC, Sediment Bucket -B, Dome Bottom Strainer -DBS, Vandal Proof Grate -U, 1/2"(13) Trap Primer Connection -P050, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Type 316 Stainless Steel -316 |
| Compliance/Certifications | NSF |
Models
14" General Purpose Stainless Steel Floor Drain
9635-S Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-3/4 inch (121 mm) depth 9635BW-S | Buttweld Outlet 9635T-S | Threaded Outlet 9635Y-S | No-Hub Outlet 6-3/4 inch (171 mm) depth 9636BW-S | Buttweld Outlet 9636T-S | Threaded Outlet 9636Y-S | No-Hub Outlet |
8-3/4 inch (222 mm) depth 9637BW-S | Buttweld Outlet 9637T-S | Threaded Outlet 9637Y-S | No-Hub Outlet 10-3/4 inch (273 mm) depth 9638BW-S | Buttweld Outlet 9638T-S | Threaded Outlet 9638Y-S | No-Hub Outlet |
9635-RF Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-1/2 inch (114 mm) depth 6-1/2 inch (165 mm) depth |
8-1/2 inch (216 mm) depth 10-1/2 inch (267 mm) depth |
9635-RFS Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
4-1/2 inch (114 mm) depth 6-1/2 inch (165 mm) depth |
8-1/2 inch (216 mm) depth 10-1/2 inch (267 mm) depth |
9635-SBG Series
available for 02 inch (50 mm), 03 inch (75 mm), 04 inch (100 mm), 06 inch (150 mm) pipe sizes |
5-1/4 inch (133 mm) depth |
9-1/4 inch (235 mm) depth 9637BW-SBG | Buttweld Outlet 9637T-SBG | Threaded Outlet 9638Y-SBG | No-Hub Outlet 11-1/4 inch (286 mm) depth 9638BW-SBG | Buttweld Outlet 9638T-SBG | Threaded Outlet 9638Y-SBG | No-Hub Outlet |
