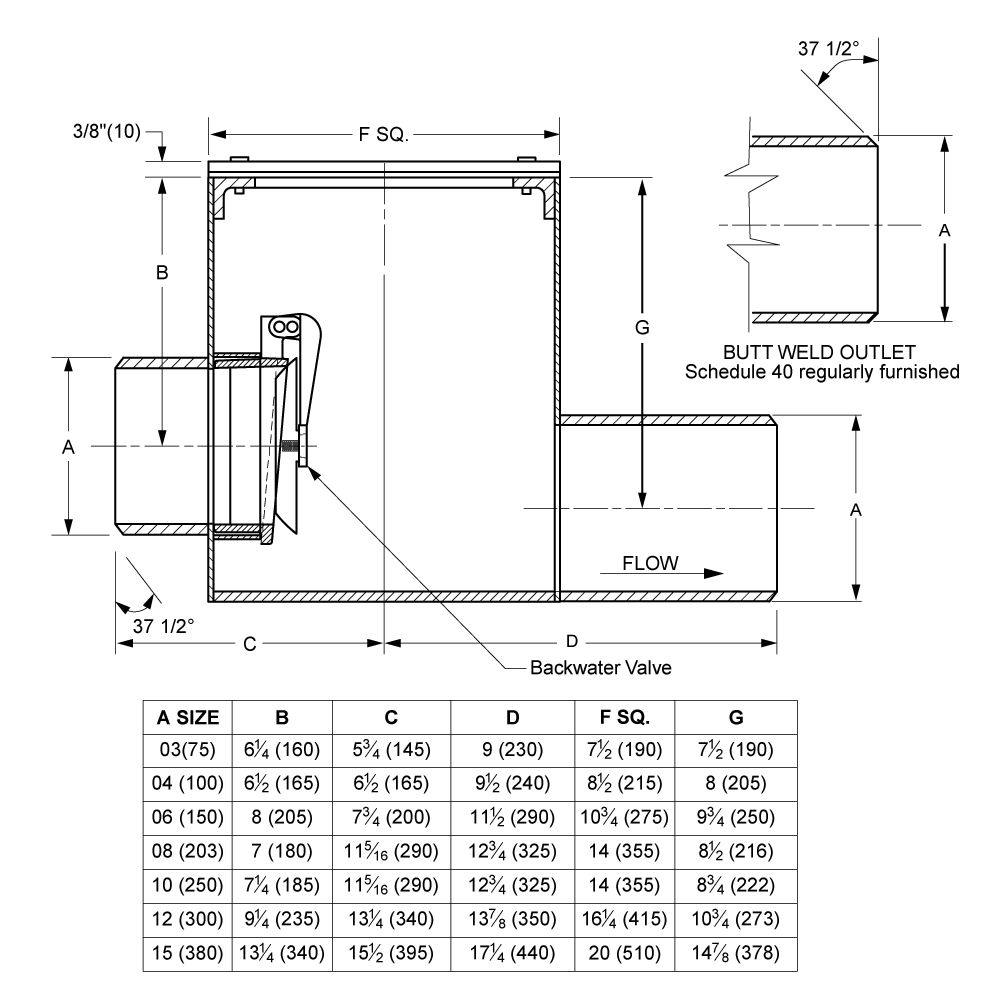

Figure 9795

Submittal

Submittal 9795 Valve

Model 9795

Stainless Steel Backwater Valve

Used in main or branch sewer lines to protect against backflow. These stainless steel backwater valves prevent hazardous or damaging backflow unless obstructed by debris or sludge. Valve design permits access to backwater valve assembly servicing or cleaning through a "full opening" cover.

Figure 9795 features a fabricated Type 304 Stainless Steel Body with bolted cover and bronze backwater valve. The inlet and outlet is a Butt Weld type. Units are available for pipe sizes 3, 4, 6, 8, 10, 12, 15.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	9795 Valve CAD Drawing	Backwater Valves - Stainless Steel [9795-BW \| Butt Weld Inlet/Outlet; 9795 \| can be specified with Caulk Inlet/Spigot Outlet]	44 KB
Submittals	Submittal 9795 Valve	Backwater Valves - Stainless Steel	207 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Ordering	Order Guidelines for Specialties	Order Guidelines for Specialties	268 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Vandal Proof Grate - U, Caulk Inlet & Spigot Outlet, No-Hub Inlet & Outlet
Optional Materials	Type 316 Stainless Steel -316
Product Type	Valve

Models

Pipe Size (A) and Overall Dimensions (L x W x H)

Pipe Size inches (mm)	Length inches (mm)	Width inches (mm)	Height inches (mm)
03 (75)	14-3/4 (375)	7-1/2 (191)	9 (229)
04 (100)	15-3/4 (400)	8-1/2 (216)	10 (254)
06 (150)	19-1/4 (489)	10-3/4 (273)	12-3/4 (324)
08 (203)	24-1/16 (611)	14 (356)	12-1/2 (318)
10 (250)	24-1/16 (611)	14 (356)	13-3/4 (349)
12 (300)	27-1/8 (689)	16-1/4 (413)	16-3/4 (425)
15 (380)	32-3/4 (832)	20 (508)	22-3/8 (568)
