Model 6040
Special Purpose Pit/Sump Drains

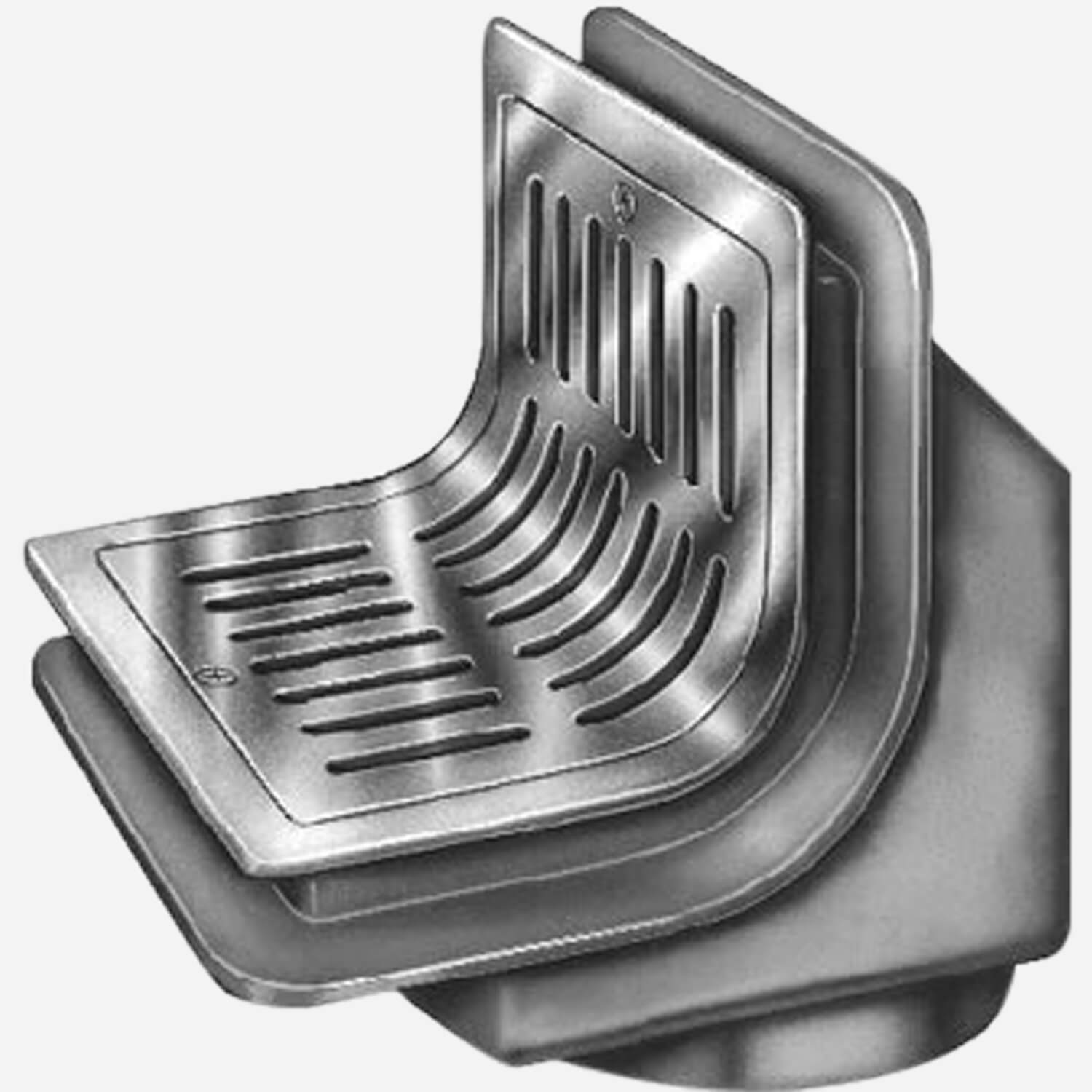

This special purpose pit/sump drain provides complete drainage of low areas in sumps and pits. Angle type design of grate makes this drain reversible, so that it can be used for either a bottom or side outlet installation. AVailable with 2", 3", 4" outlet connection.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Special Purpose Pit/Sump Drain - Reversible Angle [6040 | 2",3",4" Outlet, 1-3/4" Radius; 6045 | 4",5",6" Outlet, 1-3/4" Radius; 6048 | 4", 5", 6" Outlet, 5" Radius] | 431 KB | |||
 | | Special Purpose Pit/Sump Drain - Reversible Angle [6040 | 2",3",4" Outlet, 1-3/4" Radius; 6045 | 4",5",6" Outlet, 1-3/4" Radius; 6048 | 4", 5", 6" Outlet, 5" Radius] | 0 | 120 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Special Purpose Drains | 0 | 110 KB |
Specifications
| Variations | Flashing Clamp -C, NO-HUB Adaptor, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Duco Cast Iron -CI - Grate, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Drain |
Models
6040 | 2",3",4" Outlet, 1-3/4" Radius
6045 | 4",5",6" Outlet, 1-3/4" Radius
6048 | 4", 5", 6" Outlet, 5" Radius
6045 | 4",5",6" Outlet, 1-3/4" Radius
6048 | 4", 5", 6" Outlet, 5" Radius
