Special Purpose Drains

Name: Special Purpose Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 6010

Find A Representative

Figure 6010

Submittal

Submittal 6010 Drain (pdf)

Model 6010

Special Purpose Drains

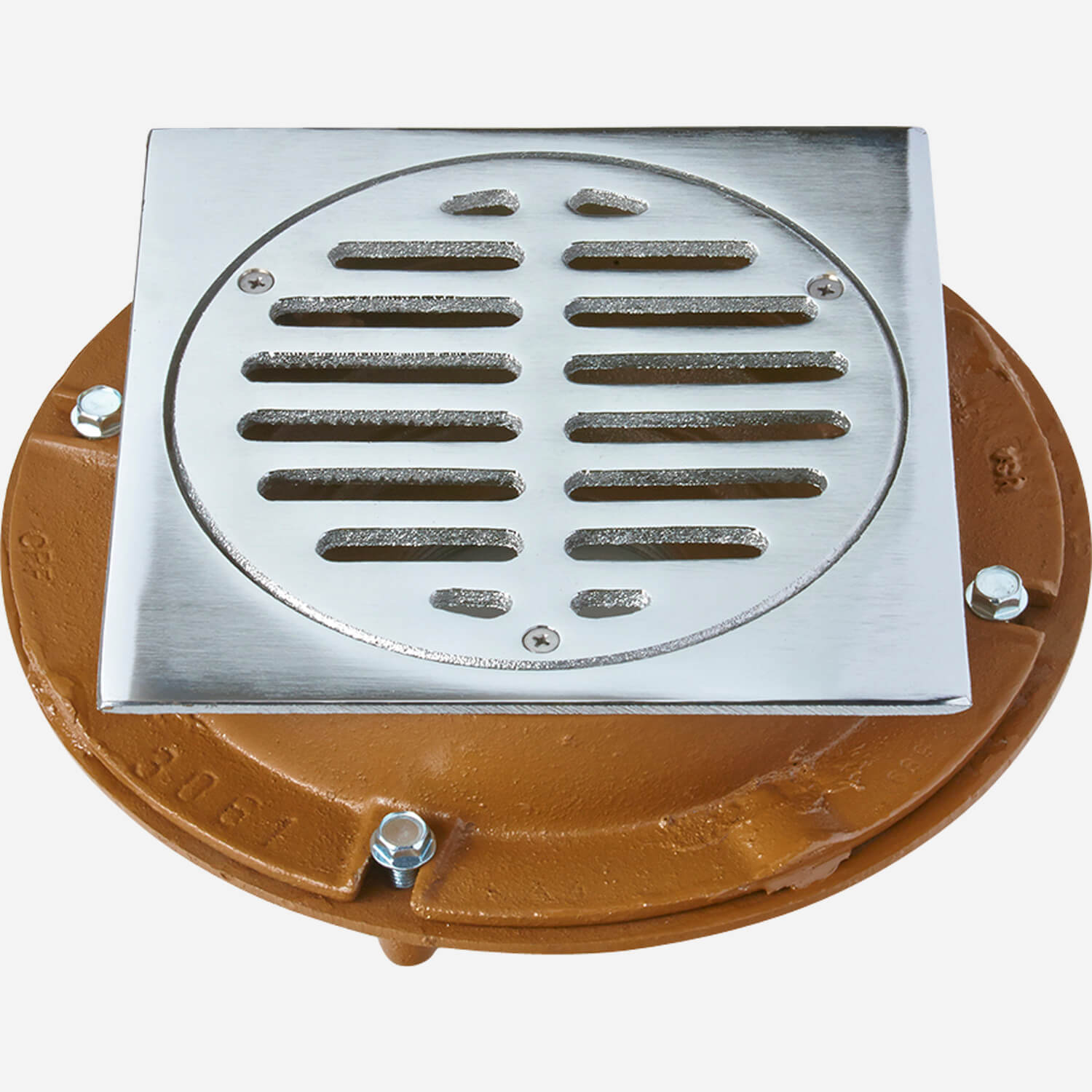

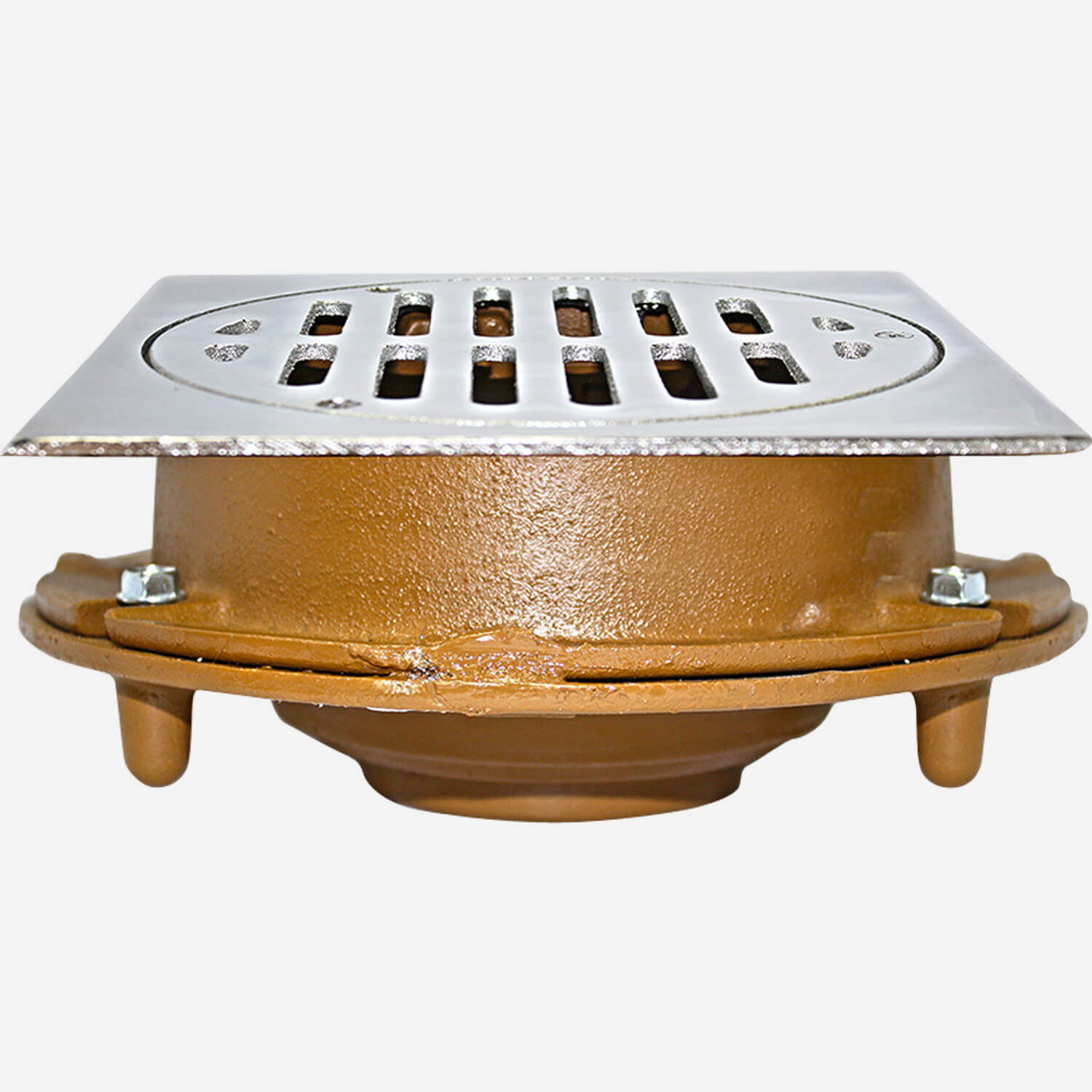

Figure 6010 special purpose drain is available with a 2", 3", 4" Bottom Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

Larger Figure 6020 special purpose drain is available with a 4", 5", 6" Bottom Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

Figure 6025 special purpose drain is available with a 4", 5", 6" Side Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	6010 Drain (dwg)	Special Purpose Drain [Smaller Drain with Bottom Outlet 6010C \| Caulked; 6010T \| Threaded; Larger Drain with Bottom Outlet 6020C \| Caulked; 6020T \| Threaded; Side Outlet 6025C \| Caulked; 6025T \| Threaded]	47 KB
Submittals	Submittal 6010 Drain (pdf)	Special Purpose Drain [Smaller Drain with Bottom Outlet 6010C \| Caulked; 6010T \| Threaded; Larger Drain with Bottom Outlet 6020C \| Caulked; 6020T \| Threaded; Side Outlet 6025C \| Caulked; 6025T \| Threaded]	229 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Special Purpose Drains	Specifications for Special Purpose Drains	110 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	NO-HUB Adaptor, Vandal Proof -U - Screws, Y NO-HUB - Outlet, (2) 3/8” (10) Tappings -TAP
Optional Materials	Duco Cast Iron -CI - Grate, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Drain

Models

Typical models are shown below

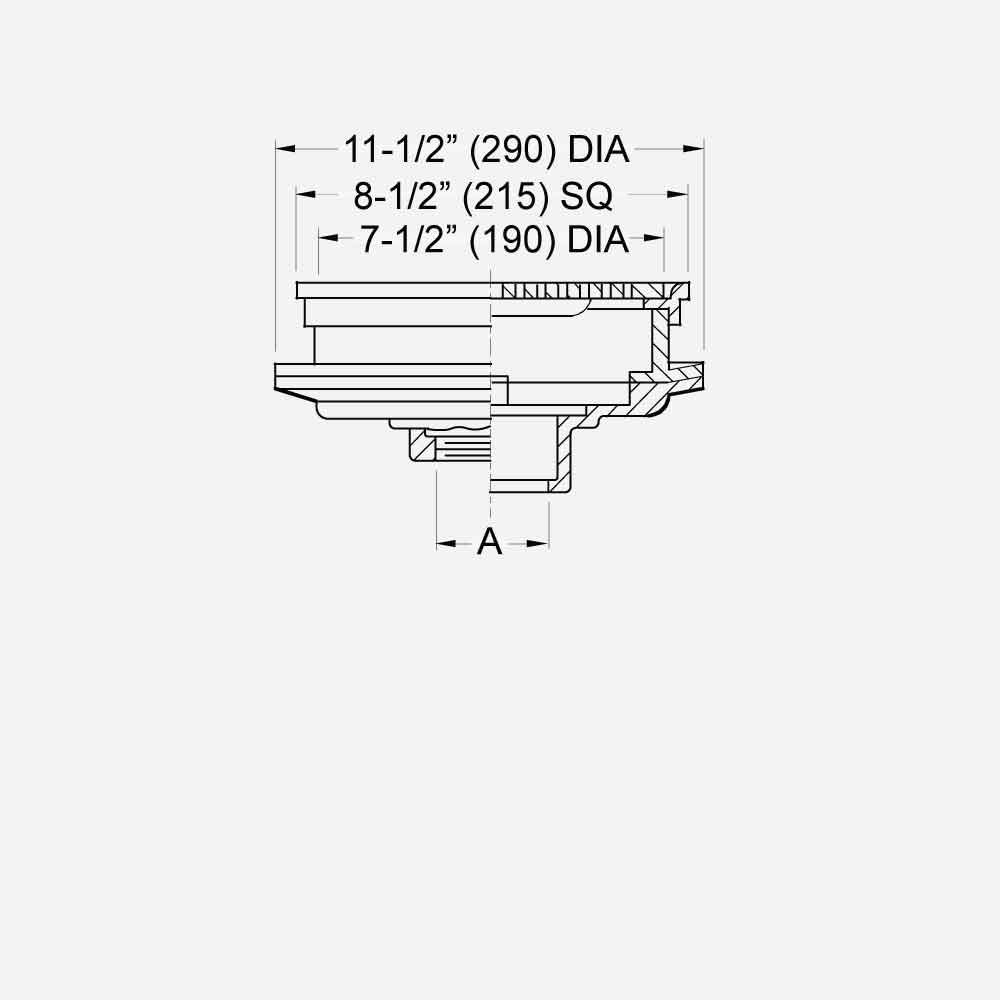

Figure 6010
Smaller Drain, Bottom Outlet
6010C | Caulked Outlet
6010T | Threaded Outlet
Pipe Sizes Available (A Dimension)
02" (50 mm), 03" (75 mm),
04" (100 mm)

Figure 6020
Larger Drain, Bottom Outlet
6020C | Cauked Outlet
6020T | Threaded Outlet
Pipe Sizes Available (A Dimension)
04" (100 mm), 05" (125 mm),
06" (150 mm)

Typical models are shown below

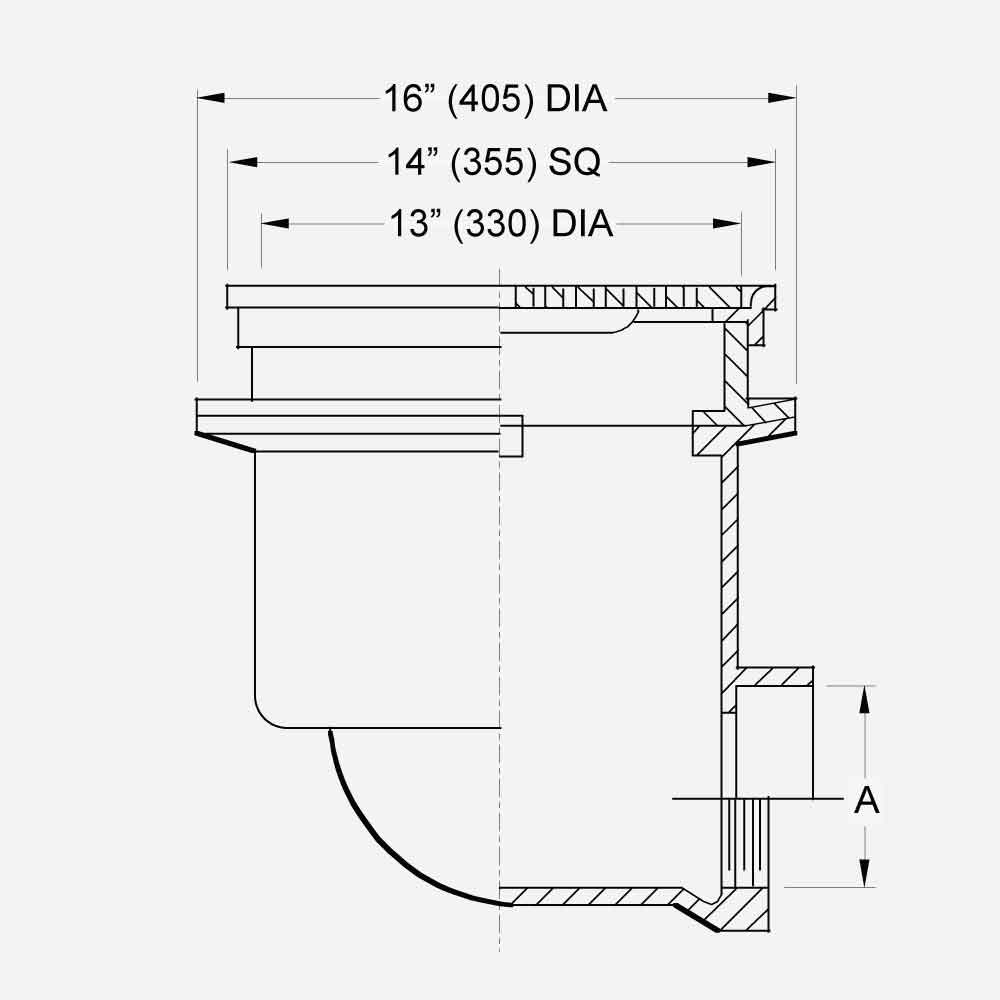

Figure 6025
Larger Drain, Side Outlet
6025C | Caulked Outlet
6025T | Threaded Outlet
Pipe Sizes Available (A Dimension)
04" (100 mm), 05" (125 mm),
06" (150 mm)
