Adjustable Recirculating Fittings as Inlet Fittings

Find A Representative
Figure 6175
Submittal
Submittal 6175 Fitting (pdf)

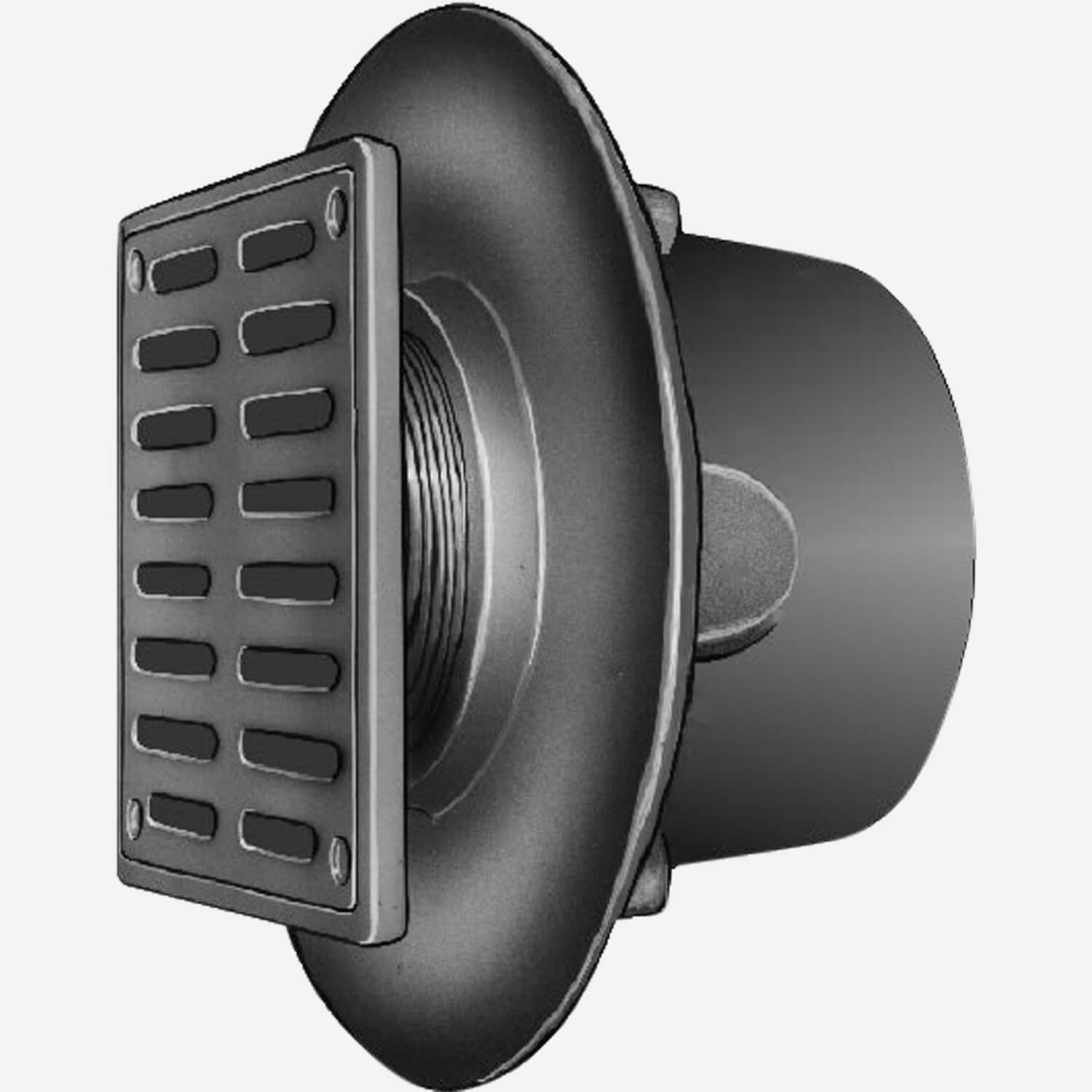

6175 Preview
Model 6175

Adjustable Recirculating Fittings as Inlet Fittings

This adjustable recirculating fitting is used as inlet supply fittings where a shallow body with provisions for flashing is required. Adjustable head adjusts to various finish thickness. Fig. 6180 has a shutter type manual closure which is used to regulate flow.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 6175 Fitting (pdf)
Adjustable Recirculating Fittings with Shallow Body and Flashing [6175T, 6180T, 6175Y,6180Y]406 KB
drawing/dwg icon
Drawings
drawing/dwg icon
6175 Fitting (dwg)
Adjustable Recirculating Fittings with Shallow Body and Flashing [6175T, 6180T, 6175Y,6180Y]42 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
RTF icon
Specifications
RTF icon
Specifications for Special Purpose Drains
Specifications for Special Purpose Drains110 KB

Specifications

VariationsFlashing Clamp -C, C Caulk Outlet, Vandal Proof -U - Screws, Y NO-HUB - 02(50), 03(75), 04"(100) Sizes Only, (2) 3/8” (10) Tappings -TAP
Optional MaterialsGalvanized Cast Iron -G, Nickel Bronze Top -NB, Polished Bronze Top -PB
Product TypeFitting

Models

Adjustable Recirculating Fittings with 5" Square Face, Shallow Body and Flashing
6175T | Threaded Outlet, No Manual Closure Cover
6180T | Threaded Outlet, Manual Closure Cover
6175Y | No-Hub Outlet, No Manual Closure Cover
6180Y | No-Hub Outlet, Manual Closure Cover
