Gutter Drains

Name: Gutter Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 6200 Series

Find A Representative

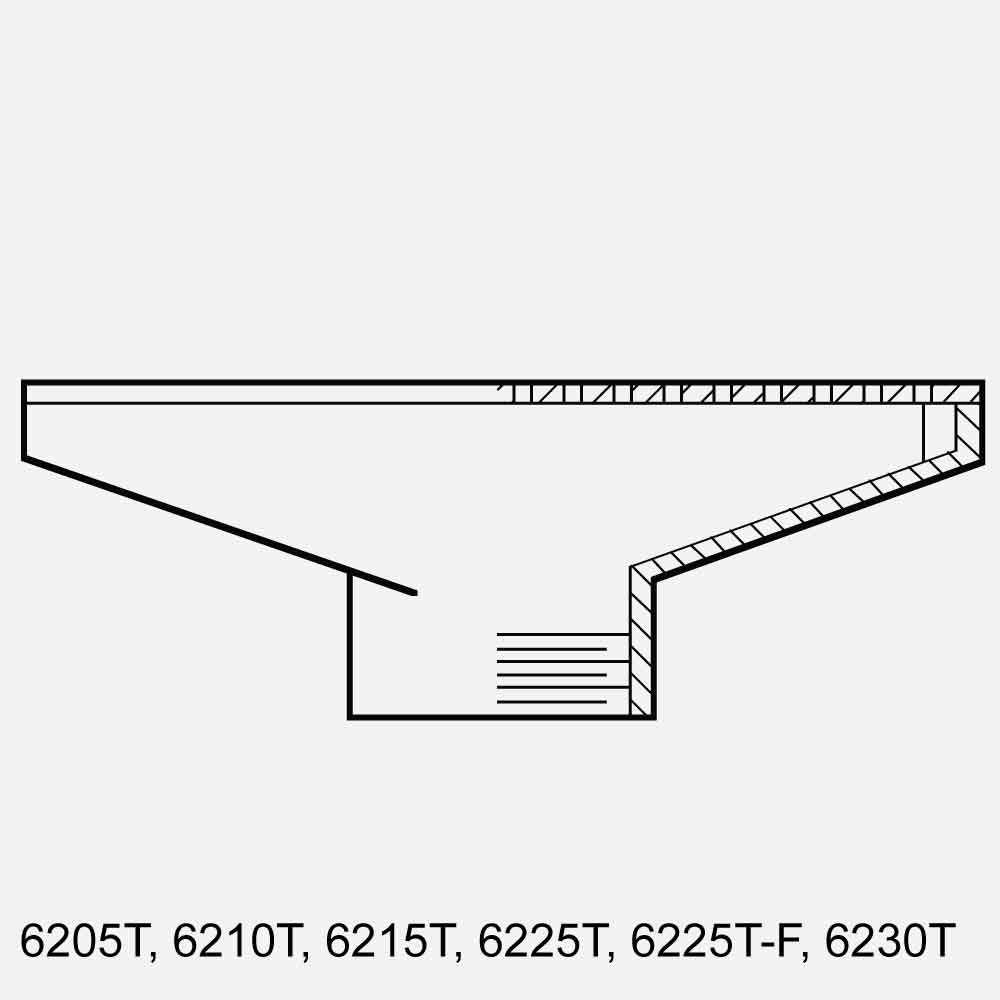

Figure 6200 Series

Submittal

Submittal 6200 Series Drain (pdf)

Model 6200 Series

Gutter Drains

This rectangular top drain is adaptable to narrow scum gutters. Size of top selected is dependent on width of gutter and the amount of drainage area of top grate which is required. Angle types should be used where it is necessary to direct the connecting pipe through the gutter side wall.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 6200 Series Drain (pdf)	Gutter Drains [Bottom Thread Outlets 6205T, 6210T, 6225T, 6230T; Angled Threaded Outlet 6250T, 6270T]	461 KB
Drawings	6200 Series Drain (dwg)	Gutter Drains [Bottom Thread Outlets 6205T, 6210T, 6225T, 6230T; Angled Threaded Outlet 6250T, 6270T]	40 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Special Purpose Drains	Specifications for Special Purpose Drains	110 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Anchor Flange -F, NO-HUB Adaptor, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
Optional Materials	Bronze Body -BB, Galvanized Cast Iron -G, Nickel Bronze Face -NB, Polished Bronze Top -PB, Stainless Steel (see fig. 9795)
Product Type	Drain

Models

Bottom Outlet
6205T | 3-3/4" x 2-1/4" for 1", 1-1/2", 2" Threaded Outlets
6210T | 5-9/16" x 2-13/16" for 2", 2-1/2", 3" Threaded Outlets
6225T | 10-1/8" x 2-3/8" for 1-1/2", 2" Threaded Outlets
6230T | 12-1/16" x 4" for 2", 2-1/2", 3" Threaded Outlets
6230T | 12-1/8" x 4-1/8" for 4" Threaded Outlet
---
Angled Outlet
6250T | 4" Wide x 2-3/4" Exposed Front-to-Back Dimension
6270T | 5-1/4" Wide x 2" Exposed Front-to-Back Dimension

Gutter Drains

Downloads

Specifications

Models
