Name: Singular Electronic Trap Primer
Brand: Jay R. Smith Mfg. Co.
SKU: 273

Model 273

Singular Electronic Trap Primer

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-traps to ensure the traps maintain a water seal. Singular electronic trap primers can be used to prime 1 or up to 4 floor drain traps with optional distribution unit.

Singular Electronic Trap Primers feature:

Electronic trap primes up to 4 traps with optional distribution unit.
An optional distribution unit can be specified when more than one trap is to be primed.
A factory pre-set timer is programmed to discharge water to the trap every 24 hours.
Units can be hardwired or operated on a battery pack.
Units include solemoid valve, brass air gap, timer module and controller box.
Compatible with BMS
Surface mount enclosure available
ASSE, IAPMO (UPC) and IAPMO-EGS (UL 1951) Listed

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	DWG 273-12V Trap Primer	Singular Electronic Trap Primer; supplied with 12V battery pack	2 MB
Drawings	DWG 273-B Trap Primer	Singular Electronic Trap Primer housed in a surface mount enclosure; hardware electrical connection	200 KB
Drawings	DWG 273-B-12V Trap Primer	Singular Electronic Trap Primer housed in a surface mount enclosure; supplied with 12V battery pack	493 KB
Drawings	DWG 273-SER Trap Primer	Singular Electronic Trap Primer - hardwired electrical connection	290 KB
Drawings	DWG 273-SW Trap Primer	Singular Electronic Trap Primer -6 foot (1.82 meter) electrical cord with three-pronged plug (120 VAC)	212 KB
Installation Instructions	Install/Operate Guide 273 Trap Primer (pdf)	Singular Electronic Trap Primer	272 KB
Submittals	Submittal 273 Series Trap Primer (pdf)	Singular Electronic Trap Primer - hardwired electrical connection	477 KB
Submittals	Submittal 273-SW Trap Primer (pdf)	Singular Electronic Trap Primer [273-SW-24VAC, 273-SW-120VAC, 273-SW-240VAC]	979 KB
Submittals	Submittal 273-B Trap Primer (pdf)	Singular Electronic Trap Primer housed in a surface mount enclosure; hardware electrical connection	931 KB
Submittals	Submittal 273-12V Trap Primer	Singular Electronic Trap Primer; supplied with 12V battery pack	482 KB
Submittals	Submittal 273-B-12V Trap Primer	Singular Electronic Trap Primer housed in a surface mount enclosure; supplied with 12V battery pack	926 KB
Installation Instructions	Install/Operate Guide 273-SW Trap Primer (pdf)	Singular Electronic Trap Primer [273-SW \| available in 24 VAC, 120 VAC, or 240 VAC electrical connection]	623 KB
Brochures/Flyers	Kwik Ship® Brands: Smith Fluid Controls (pdf)	Kwik Ship® Brands: Smith Fluid Controls (pdf)	780 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	4 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	1 MB
Brochures/Flyers	Smith Fluid Controls Brochure (pdf)	Brochure - Trap Primers, Distribution Units and other Accessories	5 MB
Brochures/Flyers	Smith Fluid Controls Flyer	Flyer - Trap Primer, Distribution Units and other Accessories	2 MB
Videos	Fluid Controls with Chris Rylant	Fluid Controls with Chris Rylant	132 KB
Videos	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	132 KB
Videos	Fluid Controls Trap Primers Overview with Chris Levins	Fluid Controls Trap Primers Overview with Chris Levins	133 KB
Videos	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	133 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Compliance/Certifications	IAPMO NRTL EGS

Models

Figure Number 273 [submittal]
Surface mount singular unit designed to interface with Building Management System (BMS), if required. Hardwire electrical connection included.

Figure Number 273-B [submittal]
Singular unit housed in a surface mount Nemo Type 1 enclosed box. Designed to interface with BMS, if required. Hardwire electrical connection included.

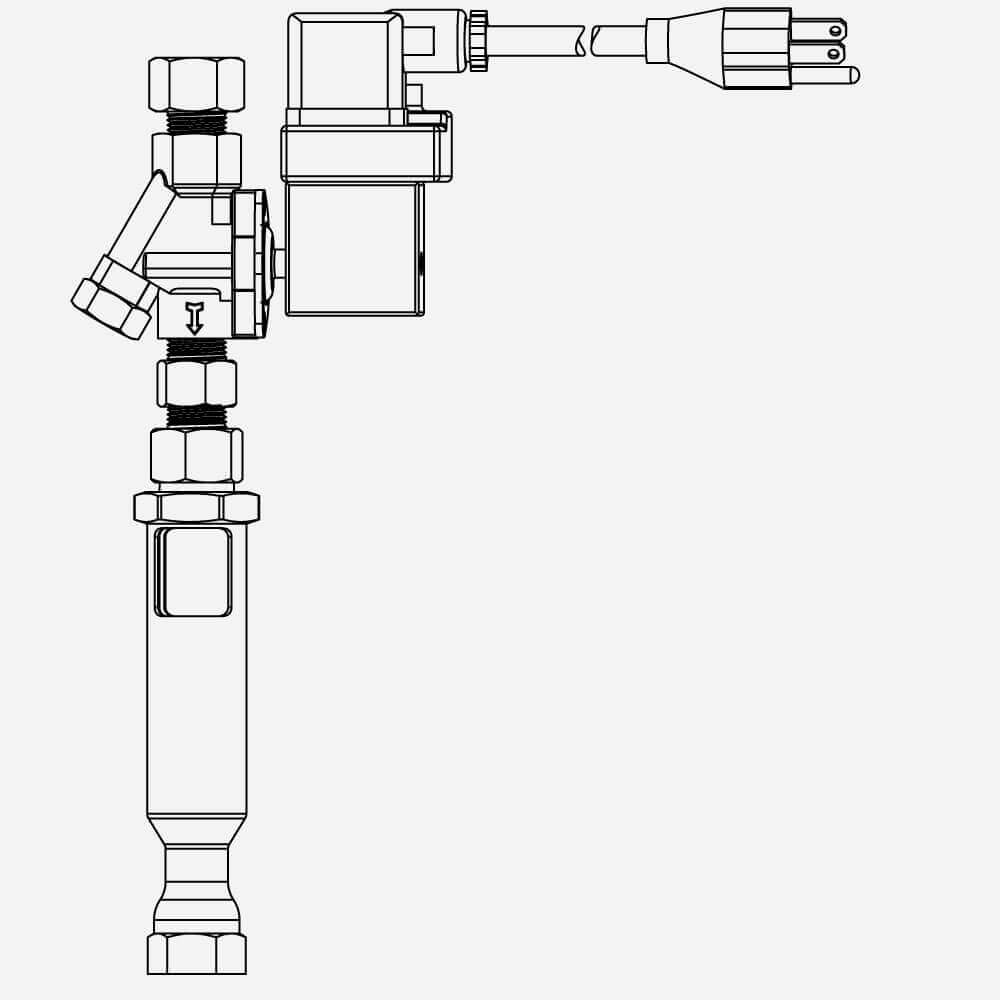

Figure Number 273-SW [submittal | exclusive install/operation guide]
Singular unit available in 24 VAC, 120 VAC, or 240 VAC electrical connection

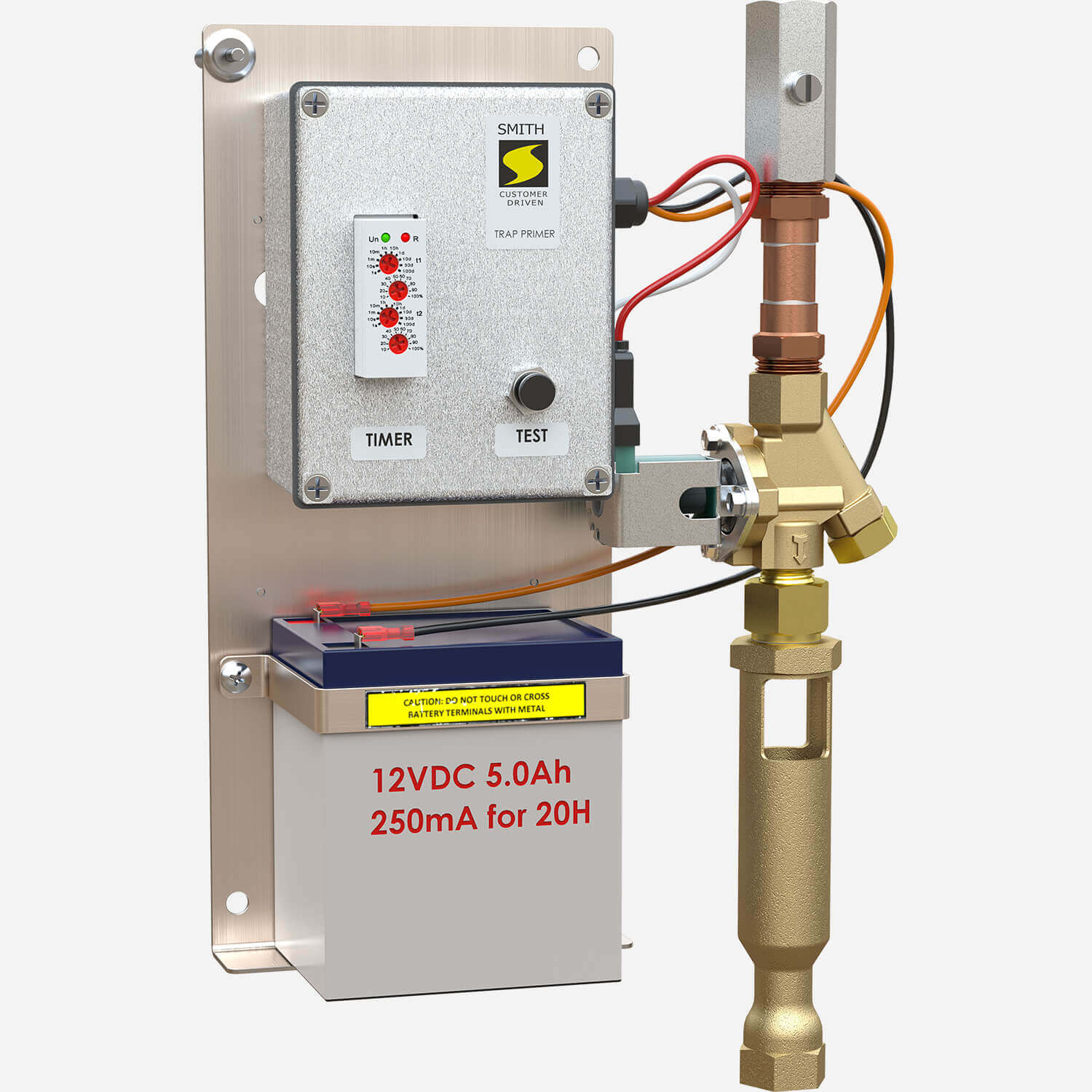

Figure Number 273-12V [submittal]
Surface mount singular 12 volt battery powered unit. Designed to interface with BMS. Supplied with 12 volt battery pack

Figure Number 273-B-12V [submittal]
Singular 12-volt battery powered unit housed in a surface mount Nema Type 1 enclosed box. Designed to interface with BMS. Supplied with 12 volt battery pack.

Details

Figure Number 273 [ submittal] Surface mount singular unit designed to interface with Building Management System (BMS), if required. Hardwire electrical connection included.

Figure Number 273-B [ submittal] Singular unit housed in a surface mount Nemo Type 1 enclosed box. Designed to interface with BMS, if required. Hardwire electrical connection included.

Figure Number 273-SW [ submittal | exclusive install/operation guide] Singular unit available in 24 VAC, 120 VAC, or 240 VAC electrical connection Figure Number 273-12V [ submittal] Surface mount singular 12 volt battery powered unit. Designed to interface with BMS. Supplied with 12 volt battery pack

Figure Number 273-B-12V [ submittal] Singular 12-volt battery powered unit housed in a surface mount Nema Type 1 enclosed box. Designed to interface with BMS. Supplied with 12 volt battery pack. Figure Number 273-05 [ submittal] Five Oulet Copper Manifold with 1/2" NPT Fittings, Connects with building or energy management system
